Coolant cooling system 2.0 ltr. diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0122073GF	Coolant hose with quick release coupling	999	Next
2	1K0122291J	Quick acting coupling	999	Next
3	1K0122157JH	Coolant hose with quick release coupling	999	Next
4	7M0122291	Quick acting coupling	999	Next
5	1K0121093BN	Hose bracket	999	Next
6	1K0122157JJ	Coolant hose with quick release coupling for vehicles with auxiliary heater use if required: double cable tie 4A0 820 199	999	Next
7	1K0122291H	Quick acting coupling for vehicles with auxiliary heater	999	Next
8	1K0121157EK	Coolant hose for vehicles with auxiliary heater use if required: double cable tie 4A0 820 199	999	Next
9	03L121151E	Coolant pipe for vehicles with auxiliary heater use if required: bracket 3C0 121 093 D	999	Next
9	03L121151L	Coolant pipe for vehicles with auxiliary heater use if required: 3C0 121 093 D	999	Next
10	N10009110	Hexagon head bolt (combi) for vehicles with auxiliary heater M6X12	999	Next
11	N10524202	Hex socket head locating bolt for vehicles with auxiliary heater M10X12	999	Next
12	1K0121051AT	Coolant hose	999	Next
14	1K0121070BR	Coolant pipe	999	Next
15	N90898102	Oval hexagon socket head bolt M6X14	999	Next
15	N90820401	Bolt, hex. hd. (combi.) self-locking M6X16	999	Next
16	1K0121101CP	Coolant hose	999	Next
17	5N0121065	Coolant pipe	999	Next
18	06A919501A	Coolant temperature sender	999	Next
19	32121142	Retaining spring	999	Next
20	N90316801	O-ring 19,6X3,65	999	Next
80		Coolant pipe	999	Next
81		Flange	999	Next
82		Flange for vehicles with auxiliary heater	999	Next
83		Coolant hose	999	Next
84		Coolant hose	999	Next
85		Cooler for exhaust recuperation	999	Next
94	N90686902	Spring band clamp 23X12	999	Next
95	N90687001	Spring band clamp 27X12	999	Next
96	N90687101	Spring band clamp 32X12	999	Next

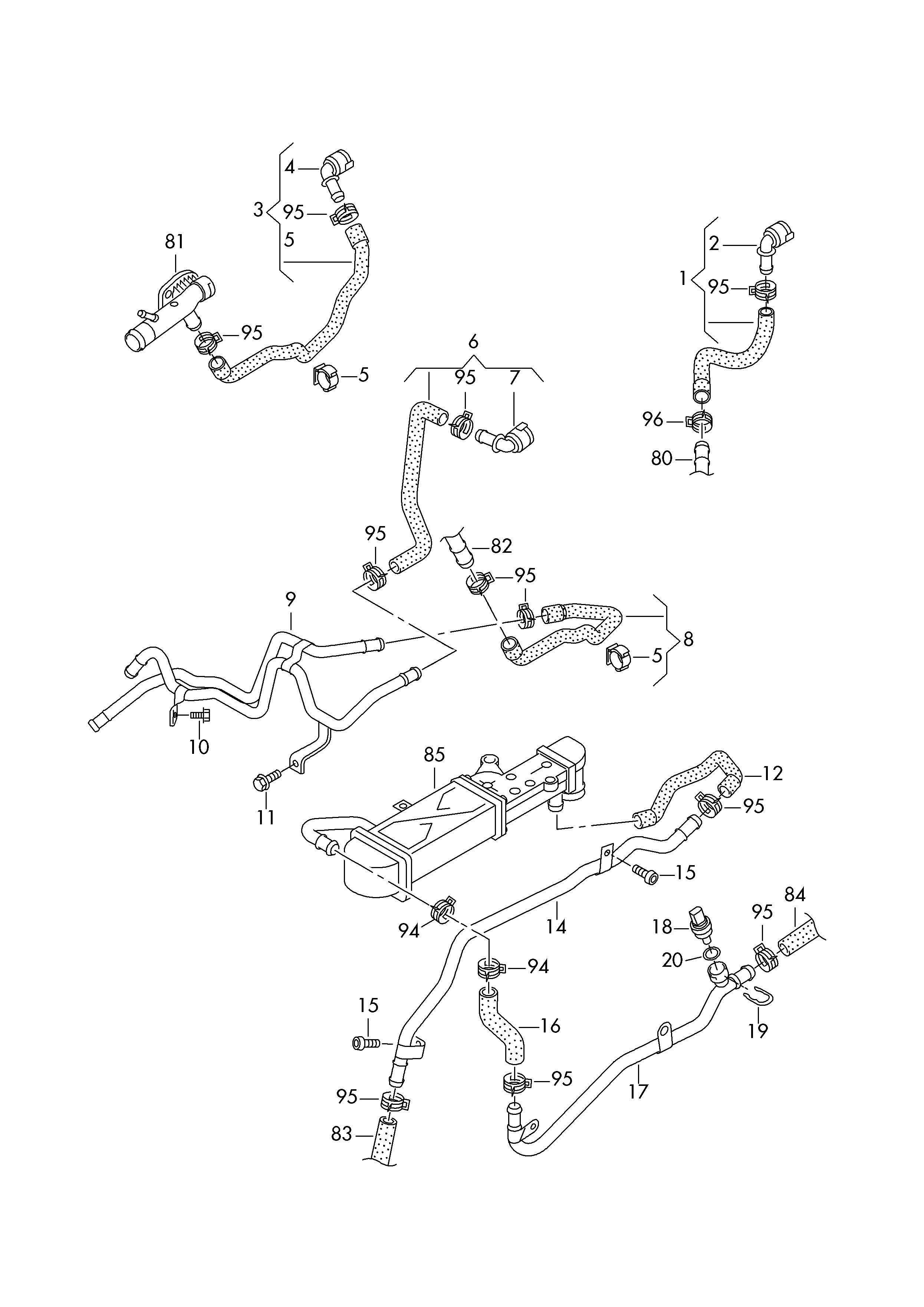

Scheme Coolant cooling system 2.0 ltr. diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR
