Coolant cooling system 2.0 ltr. diesel eng.+, CFFA, CFFB, CFFD, CLJA, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0122291A	Quick acting coupling	999	Next
1	1J0121142	Retaining spring 32MM	999	Next
1	N 90765301	O-ring 32X4	999	Next
1	N 90692901	Connection piece 32X20X32	999	Next
1	5N0122051AS	Coolant hose with quick release coupling	999	Next
1	3C0121093	Hose bracket	999	Next
1	5N0965561	Additional coolant pump PIERBURG	999	Next
1	5N0965561A	Additional coolant pump BUEHLER	999	Next
1	5N0121093A	Bracket for additional coolant pump PIERBURG	999	Next
1	1K0121093BP	Bracket for additional coolant pump BUEHLER	999	Next
1	5N0198093	1 set attachment parts additional coolant pump	999	Next
1	5N0121051A	Coolant hose	999	Next
1	3C0122291	Quick acting coupling	999	Next
1	1K0121113A	Coolant regulator	999	Next
1	5N0122101AC	Coolant hose with quick release coupling	999	Next
1	5N0122101AF	Coolant hose with quick release coupling contains: thermostat 1K0 12113 A	999	Next
1	5N0122101AJ	Coolant hose with quick release coupling contains: thermostat 1K0 12113 A	999	Next
1	5N0122109L	Coolant hose	999	Next
1	5N0122109AA	Coolant hose	999	Next
1	1K0133687B	Bracket	999	Next
1	1K0121093CB	Hose bracket	999	Next
1	03L121065AJ	Coolant pipe	999	Next
1	06B121687	O-ring 20,5X5,5	999	Next
1	N 10524202	Hex socket head locating bolt M10X12	999	Next
1	N 90853802	Socket head bolt with inner multipoint head M7X20	999	Next
1	1K0122058L	Coolant hose (oil cooler > water pipe)	999	Next
1	5N0121086E	Coolant hose (transmission oil cooler > distributor > coolant pipe)	999	Next
1	5N0122447AE	Coolant hose	999	Next
1	N 90693001	T-piece 8X8X8	999	Next
1	5K0121070C	Coolant pipe	999	Next
1	N 10406505	Oval hexagon socket head bolt M6X12	999	Next
1	5N0121447Q	Coolant hose	999	Next
1	N 10462802	Hose bracket 14X14	999	Next
1	5N0121093C	Hose bracket	999	Next
1	03L122157K	Coolant pipe with coolant hose	999	Next
1	N 10170303	Round hd. screw M6X10	999	Next
1	N 10170302	Round hd. screw M6X10	999	Next
1		Reservoir cooler for coolant	999	Next
1		Coolant regulator housing	999	Next
1		Oil cooler	999	Next
1		Coolant hose	999	Next
1		Coolant pipe	999	Next
1		Coolant pipe	999	Next
1		Flange	999	Next
1		Coolant hose	999	Next
1		Gear oil cooler	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 90686902	Spring band clamp 23X12	999	Next
1	N 90687001	Spring band clamp 27X12	999	Next
1	N 90687101	Spring band clamp 32X12	999	Next
1	N 90687201	Spring band clamp 40X12	999	Next

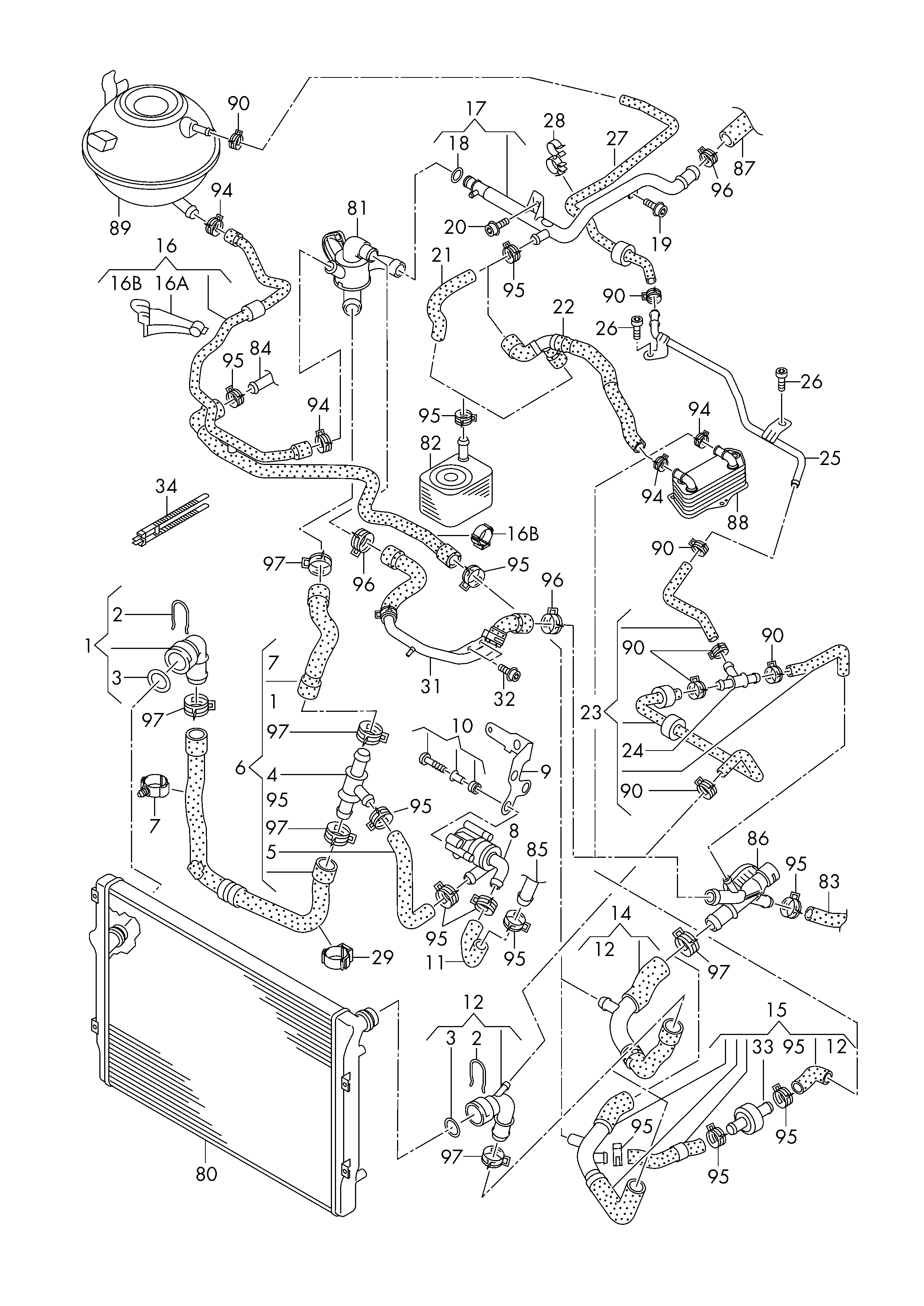

Scheme Coolant cooling system 2.0 ltr. diesel eng.+, CFFA, CFFB, CFFD, CLJA, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR
