Coolant cooling system 1.8/2.0ltr. 4-cylinder+, petrol eng.+, BZB, CCTA, CAWB, CGYA, CBFA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J121065F	Coolant pipe	999	Next
2	N90365302	O-ring 20X3	999	Next
3	N10405604	Oval hexagon socket head bolt M6X14	999	Next
4A	N10700202	Round hd. screw M6X22	999	Next
4B	06J121619	Spacer sleeve	999	Next
5	06J121057D	Coolant hose	999	Next
6	06J121085B	Coolant pipe	999	Next
7	N10335205	Socket head bolt with hexagon socket head (combination) M6X12	999	Next
8	3C0121058AS	Coolant hose	999	Next
9	3C0122073FC	Coolant hose with quick release coupling	999	Next
9	3C0122073FE	Coolant hose with quick release coupling	999	Next
10	3C0122073EG	Coolant hose with quick release coupling	999	Next
10	3C0122073EG	Coolant hose with quick release coupling	999	Next
10	3C0122073FA	Coolant hose with quick release coupling	999	Next
11	3B0122291B	Quick acting coupling	999	Next
12	3C0122157EL	Coolant hose with quick release coupling for vehicles with auxiliary heater	999	Next
13	3C0122157EK	Coolant hose with quick release coupling F 3C9525 000	999	Next
13	3C0122157FH	Coolant hose with quick release coupling F 3C9525 001	999	Next
13	3C0122157ER	Coolant hose with quick release coupling	999	Next
14	1K0122291C	Quick acting coupling	999	Next
15	3C0121157BN	Coolant hose for vehicles with auxiliary heater	999	Next
16	06J121151B	Coolant pipe for vehicles with auxiliary heater	999	Next
17	N10524202	Hex socket head locating bolt for vehicles with auxiliary heater M10X12	999	Next
40	4A0820199	Double cable tie 7X213/140MM	999	Next
80, 82		Coolant pipe	999	Next
81, 83		Coolant hose	999	Next
84		Water connection	999	Next
85		Gear oil cooler	999	Next
86		Coolant hose	999	Next
90	N90686701	Spring band clamp 14X12	999	Next
94	N90686902	Spring band clamp 23X12	999	Next
94	N90686901	Spring band clamp 23X12	999	Next
95	N90687001	Spring band clamp 27X12	999	Next
96	N90687101	Spring band clamp 32X12	999	Next

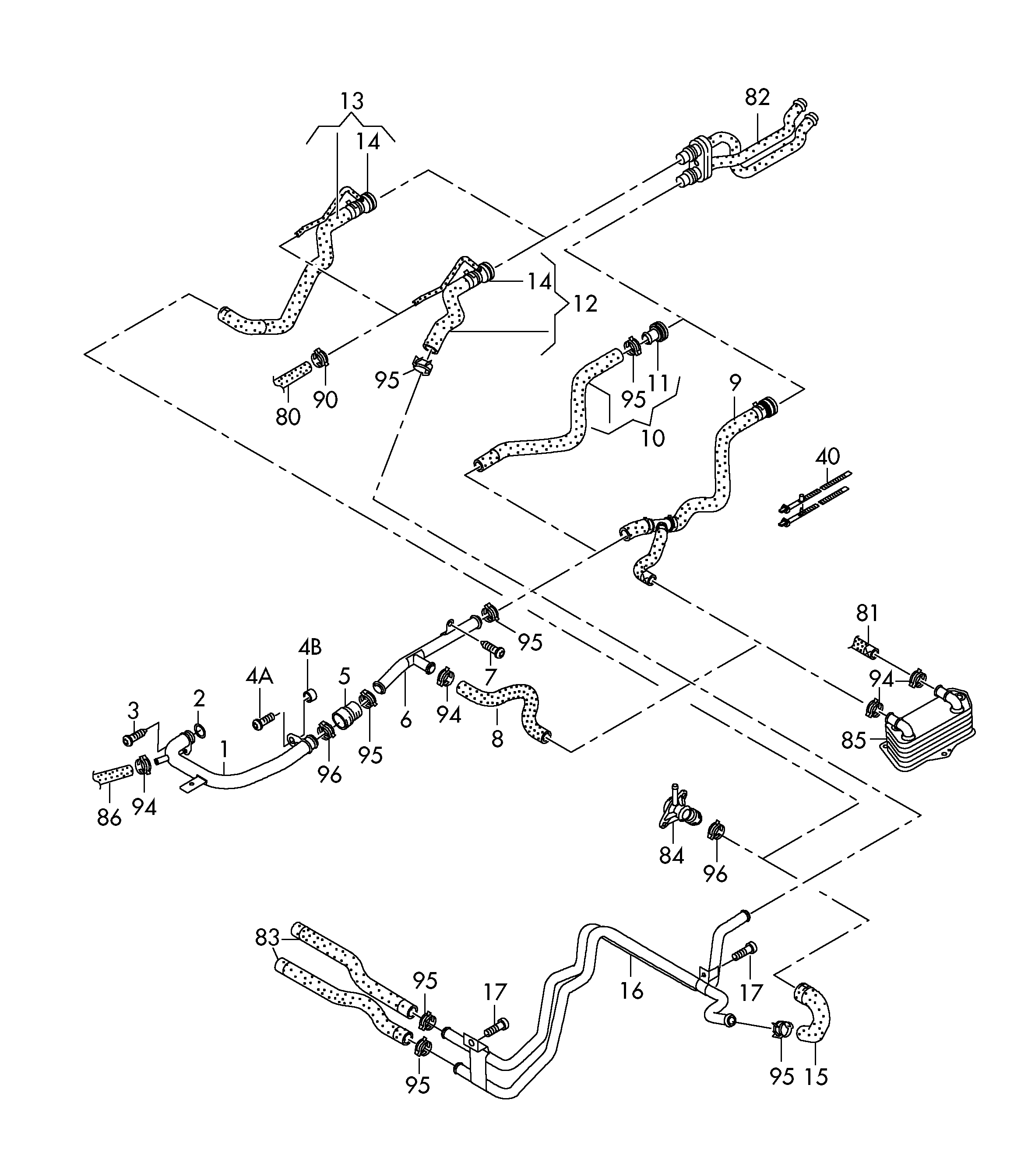

Scheme Coolant cooling system 1.8/2.0ltr. 4-cylinder+, petrol eng.+, BZB, CCTA, CAWB, CGYA, CBFA Volkswagen Passat CC Coupe 2009-2012 EUR
