Coolant cooling system 1.6ltr. petrol eng.+, BSE, BSF, CMXA, CHGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0121086N	Coolant hose for vehicles with no air conditioning system	999	Next
1	1K0121086N	Coolant hose for models with air condition- ing system (used in warm climates)	999	Next
1	1K0121086AJ	Coolant hose for vehicles with air condit. and for vehicle use in cold and moderate climates	999	Next
2	1K0122291N	Quick acting coupling for vehicles with no air conditioning system	999	Next
2	1K0122291AE	Quick acting coupling for vehicles with air condit.	999	Next
3	N90765301	O-ring 32X4	999	Next
4	1J0121142	Retaining spring 32MM	999	Next
5	32121142	Retaining spring for vehicles with air condit.	999	Next
6	N90316801	O-ring 19,6X3,65	999	Next
7	1J0959481A	Dual thermo-switch for vehicles with no air conditioning system 95-84C/102-91C	999	Next
7	06A919501A	Coolant temperature sender for vehicles with air condit.	999	Next
8	1K0121093B	Hose bracket	999	Next
10	06A121065DP	Coolant pipe	999	Next
11	N90365302	O-ring 20X3	999	Next
11	WHT006407	O-ring 20X3	999	Next
12	N10314403	Hex collared bolt M10X20	999	Next
12	N02300213	Hexagon nut, self-locking M6	999	Next
14	1K0121062C	Coolant hose	999	Next
15	1K0122062C	Coolant hose	999	Next
16	1K0121096BA	Coolant hose	999	Next
17	06A965529	Pre-heater	999	Next
21	7M3122291	Quick acting coupling	999	Next
22	1K0121101BS	Coolant hose	999	Next
23	1K0121087E	Distributor	999	Next
24	1K0121101E	Coolant hose	999	Next
25	1K0121073N	Coolant hose	999	Next
26	3B0122291B	Quick acting coupling	999	Next
28	1K0122291C	Quick acting coupling	999	Next
30	1K0122447HS	Coolant hose	999	Next
31	1K0122447GL	Coolant hose	999	Next
32	1K0121447BQ	Coolant hose	999	Next
33	1K0122447GN	Coolant hose	999	Next
34	1K0121087B	Distributor 8X8X8X60	999	Next
35	N90693001	T-piece 8X8X8	999	Next
37	1K0122109B	Coolant hose	999	Next
38	1J0121093AR	Bracket	999	Next
39	1K0122447DK	Coolant hose	999	Next
40	N10436201	Clip 14X6,5	999	Next
41	N10262701	Double clip for vehicles with liquid gas operation (lpg) 11X14	999	Next
41	701971848D	Retainer, swivel for vehicles with liquid gas operation (lpg) 14/25	999	Next
42	JNV122109	Coolant hose for vehicles with liquid gas operation (lpg)	999	Next
43	JNV122101A	Coolant hose for vehicles with liquid gas operation (lpg) shorten by: 60MM	999	Next
44	N90794401	T-piece for vehicles with liquid gas operation (lpg) 20X16X20	999	Next
45		Reservoir flange cooler for coolant	999	Next
46		Throttle valve control element	999	Next
47		Evaporator for vehicles with liquid gas operation (lpg)	999	Next
48		Not for this model	999	Next
50	N90686701	Spring band clamp 14X12	999	Next
51	N90686902	Spring band clamp 23X12	999	Next
52	N90687001	Spring band clamp 27X12	999	Next
53	N90687101	Spring band clamp 32X12	999	Next
54	N90687201	Spring band clamp 40X12	999	Next

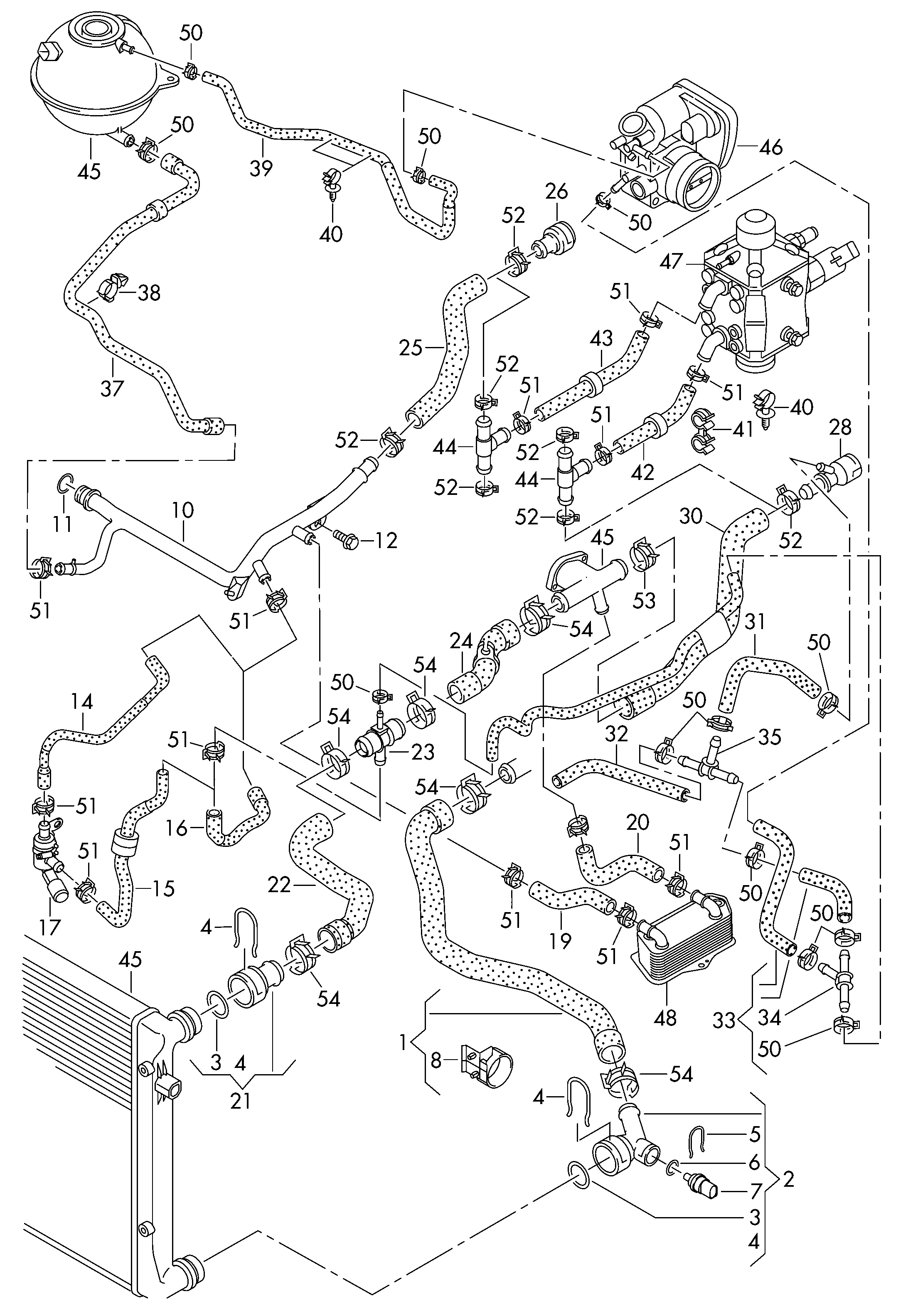

Scheme Coolant cooling system 1.6ltr. petrol eng.+, BSE, BSF, CMXA, CHGA Volkswagen Golf Plus 2012-2014 EUR
