Coolant cooling system 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0122291BM	Quick acting coupling	999	Next
2	1J0121142	Retaining spring 32MM	999	Next
3	N90765301	O-ring 32X4	999	Next
4	N90692901	Connection piece 32X20X32	999	Next
5	1K0121101DB	Coolant hose	999	Next
6	1K0122051HK	Coolant hose with quick release coupling	999	Next
7	5N0121093C	Hose bracket	999	Next
8	5N0965561	Additional coolant pump use if required: FA. PIERBURG 5N0 121 093 A	999	Next
8	5N0965561A	Additional coolant pump use if required: FA. BUEHLER 1K0 121 093 BP	999	Next
9	5N0121093A	Bracket for additional coolant pump FA. PIERBURG	999	Next
9	1K0121093BP	Bracket for additional coolant pump FA. BUEHLER	999	Next
10	5N0198093	1 set attachment parts additional coolant pump	999	Next
11	5N0121051A	Coolant hose	999	Next
12	3C0122291	Quick acting coupling	999	Next
14	1K0122101KN	Coolant hose with quick release coupling contains additional positions: 23	999	Next
14	1K0122101JR	Coolant hose with quick release coupling contains additional positions: 23	999	Next
15		Not for this model	999	Next
16	1K0122109CF	Coolant hose	999	Next
16	3AA122109B	Coolant hose	999	Next
16A	1K0133687B	Bracket	999	Next
16B	1K0121093CB	Hose bracket	999	Next
17	03L121065AJ	Coolant pipe	999	Next
18	06B121687	O-ring 20,5X5,5	999	Next
19	N10698101	Socket head bolt with inner multipoint head (kombi) M10X25-S13	999	Next
20	N90853802	Socket head bolt with inner multipoint head M7X20	999	Next
21	1K0122058L	Coolant hose	999	Next
22		Not for this model	999	Next
23		Coolant hose included in position: 14	999	Next
24	N90693001	T-piece 8X8X8	999	Next
25	1K0121070CE	Coolant pipe	999	Next
26	N10406504	Oval hexagon socket head bolt M6X12	999	Next
27	1K0122447GF	Coolant hose	999	Next
28		Not for this model	999	Next
29		Not for this model	999	Next
31	03L122157R	Coolant pipe with coolant hose	999	Next
31	03L122157N	Coolant pipe with coolant hose	999	Next
32	N10170303	Round hd. screw M6X10	999	Next
80		Cooler for coolant reservoir	999	Next
81		Coolant regulator housing	999	Next
82		Oil cooler	999	Next
83		Coolant hose	999	Next
84		Coolant pipe	999	Next
85		Coolant pipe	999	Next
86		Flange	999	Next
87		Coolant hose	999	Next
88		Not for this model	999	Next
90	N90686701	Spring band clamp 14X12	999	Next
94	N90686902	Spring band clamp 23X12	999	Next
95	N90687001	Spring band clamp 27X12	999	Next
96	N90687101	Spring band clamp 32X12	999	Next
97	N90687201	Spring band clamp 40X12	999	Next

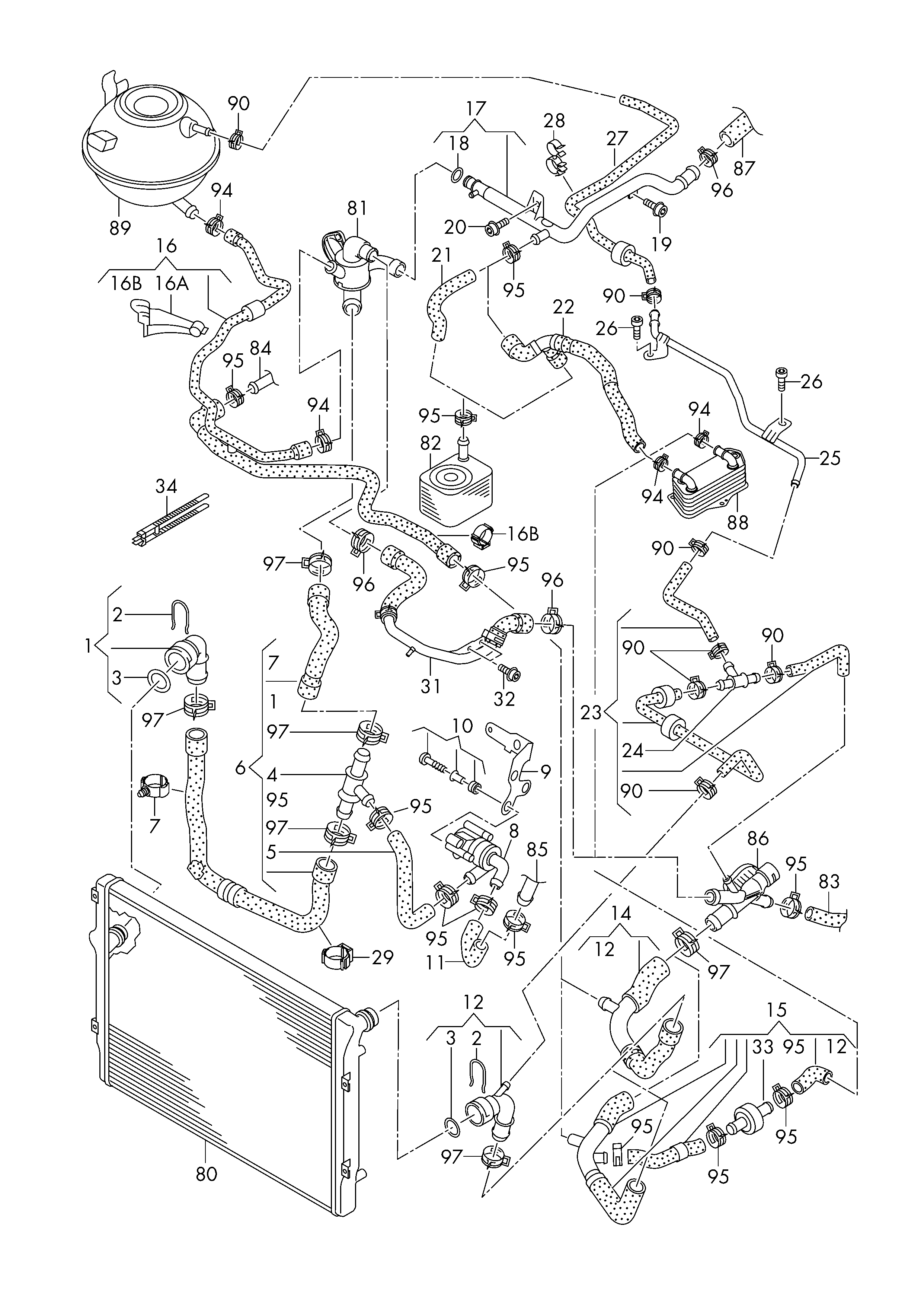

Scheme Coolant cooling system 1.6ltr. diesel eng.+, CAYB, CAYC Volkswagen Golf Plus 2012-2014 EUR
