Coolant cooling system 1.4ltr. petrol eng.+, CAXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0122291R	Quick acting coupling	999	Next
2	1K0122073GH	Coolant hose with quick release coupling	999	Next
3	1K0121073BP	Coolant hose	999	Next
4	1K0122157JQ	Coolant hose	999	Next
4	1K0122157JP	Coolant hose for vehicles with auxiliary heater	999	Next
5	1K0121087Q	Distributor	999	Next
6	1K0122063K	Coolant hose	999	Next
7	N90794401	T-piece 20X16X20	999	Next
8	1K0965561F	Additional coolant pump	999	Next
9	N10124408	Hexagon socket head bolt (combi) M6X20	999	Next
10	1K0121093AS	Bracket for additional coolant pump	999	Next
11	N91052201	Hexagon socket head bolt M8X12	999	Next
12	1K0121096BQ	Coolant hose	999	Next
14	1K0122109CD	Coolant hose	999	Next
15	N90760601	T-piece 20X20X20	999	Next
16	1K0121447EE	Coolant hose	999	Next
17	1K0121087B	Distributor 8X8X8X60	999	Next
18	N90693001	T-piece 8X8X8	999	Next
19	1K0121447ED	Coolant hose	999	Next
20		Not for this model	999	Next
21	1K0121447EC	Coolant hose	999	Next
22	03C121151D	Coolant pipe for vehicles with auxiliary heater	999	Next
23	03C121079D	Retaining plate	999	Next
24	N10216803	Hexagon head bolt (combi) M10X16	999	Next
25	N10009506	Hexagon head bolt (combi) M6X18	999	Next
26	1K0121447EH	Coolant hose	999	Next
80		Coolant pipe	999	Next
81		Reservoir	999	Next
82		Charge air cooler	999	Next
83		Coolant regulator housing	999	Next
84		Coolant pipe	999	Next
85		Coolant pipe	999	Next
86		Coolant pipe	999	Next
87		Coolant hose	999	Next
88		Quick acting coupling	999	Next
90	N90686701	Spring band clamp 14X12	999	Next
92	N90686902	Spring band clamp 23X12	999	Next
93	N90687001	Spring band clamp 27X12	999	Next

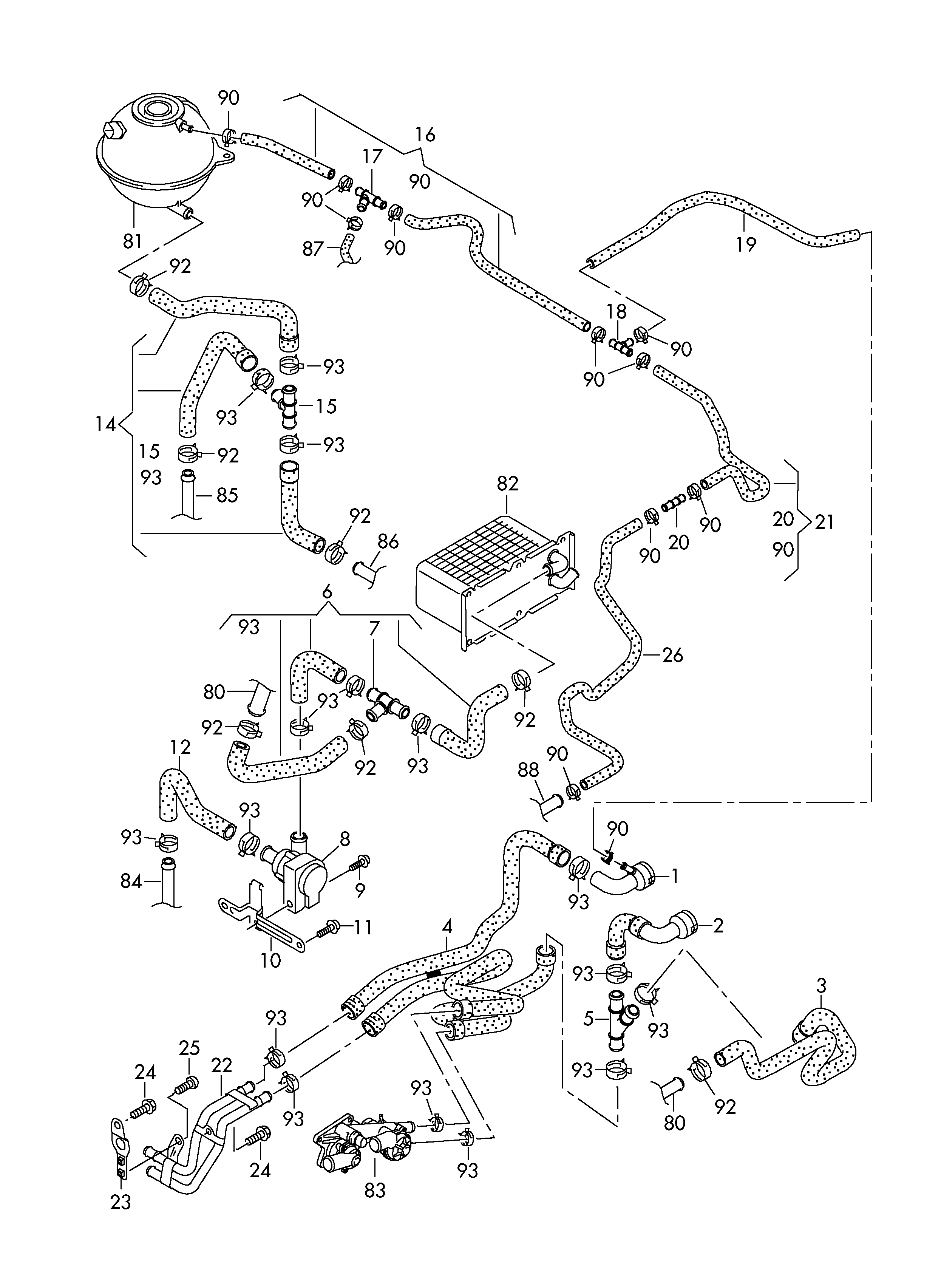

Scheme Coolant cooling system 1.4ltr. petrol eng.+, CAXA Volkswagen Golf Plus 2012-2014 EUR
