Coolant cooling system 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0122291AD	Quick acting coupling	999	Next
3	N90765301	O-ring 32X4	999	Next
4	1J0121142	Retaining spring 32MM	999	Next
5	32121142	Retaining spring	999	Next
6	N90316801	O-ring 19,6X3,65	999	Next
7	06A919501A	Coolant temperature sender	999	Next
8	1K0121156CE	Coolant hose	999	Next
8	1K0122101HM	Coolant hose with quick release coupling	999	Next
9	1K0121109AM	Coolant hose	999	Next
9	1K0121063T	Coolant hose	999	Next
10	1K0121096BB	Coolant hose	999	Next
10	1K0121086AS	Coolant hose	999	Next
11	1K0121447DK	Coolant hose	999	Next
12	1K0122051AN	Coolant hose	999	Next
14	1K0121093AT	Hose connector	999	Next
15	1K0122291BE	Quick acting coupling	999	Next
16	03C121050N	Coolant pipe	999	Next
16	03C121050H	Coolant pipe	999	Next
17	03C121437	O-ring 15X1,8	999	Next
18	1K0121058BH	Coolant hose	999	Next
19	3C0121093	Hose bracket	999	Next
20	1K0121070BJ	Coolant pipe	999	Next
21	1K0121058BR	Coolant hose	999	Next
22	1K0965561F	Additional coolant pump	999	Next
23	N10124408	Hexagon socket head bolt (combi) M6X20	999	Next
24	N10128110	Hexagon bolt M8X30	999	Next
25	1K0121093AD	Bracket for additional coolant pump	999	Next
25	1K0121093BJ	Bracket for additional coolant pump	999	Next
26	1K0121063P	Coolant hose	999	Next
27	03C121497C	Coolant pipe	999	Next
28	WHT003376	O-ring 9,6X2,5	999	Next
29	03C121469D	Coolant pipe	999	Next
30	N90355405	Socket head bolt with inner multipoint head M7X14	999	Next
31	WHT005227	Oval hexagon socket head bolt M6X12	999	Next
40		Coolant regulator housing cooler for coolant	999	Next
41		Oil cooler	999	Next
42		Exhaust manifold with turbo- charger	999	Next
43		Coolant hose	999	Next
44		Coolant pipe with	999	Next
45		Coolant hose	999	Next
46		Coolant hose	999	Next
60	N90686701	Spring band clamp 14X12	999	Next
61	N90686902	Spring band clamp 23X12	999	Next
62	N90687001	Spring band clamp 27X12	999	Next
64	N90687201	Spring band clamp 40X12	999	Next

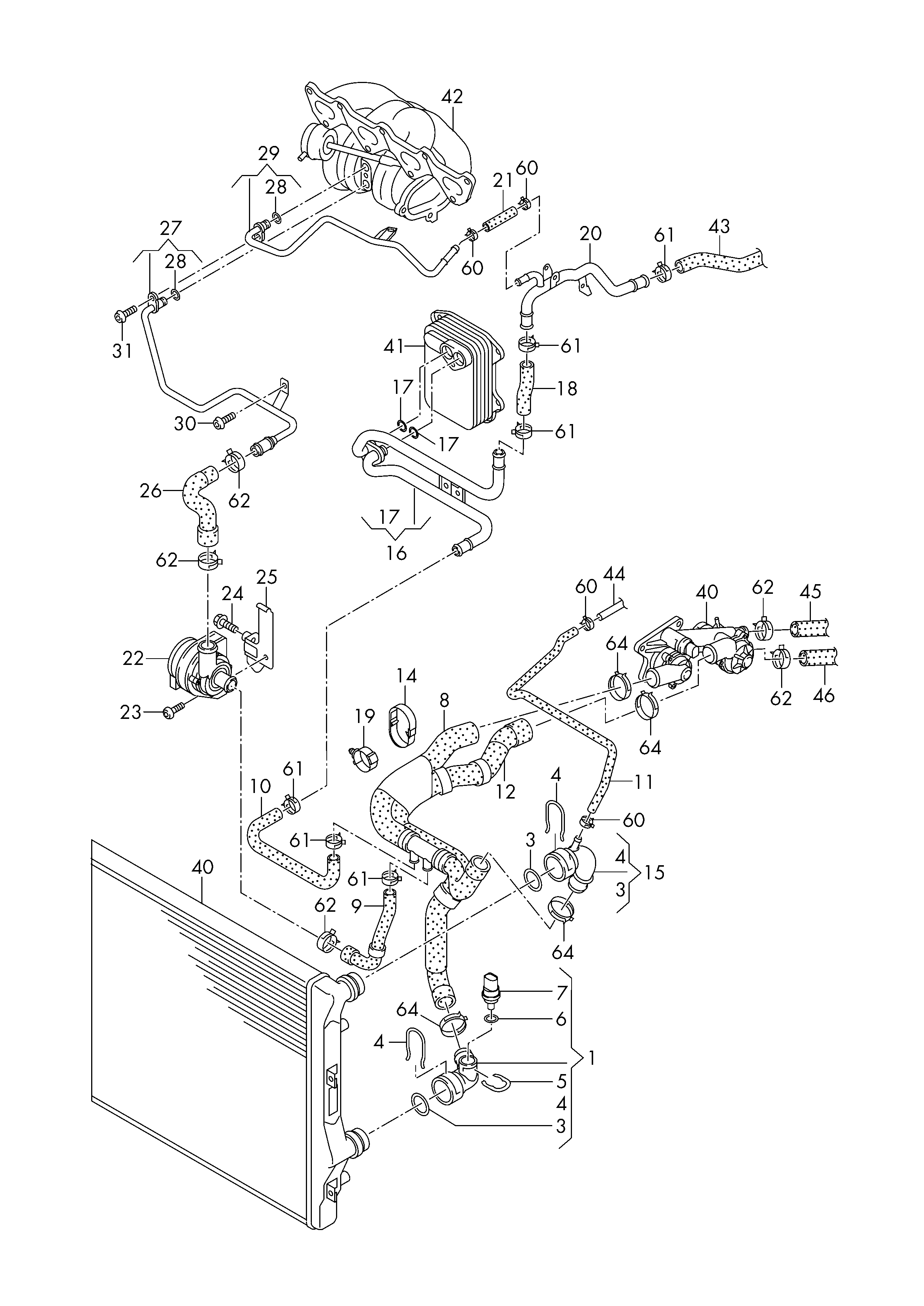

Scheme Coolant cooling system 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
