Coolant cooling system 1.4ltr., left petrol eng.+, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0121049S	Coolant hose with quick release coupling	999	Next
1	3C0122291	Quick acting coupling	999	Next
1	N 90765301	O-ring 32X4	999	Next
1	1J0121142	Retaining spring 32	999	Next
1	5N0122291S	Quick acting coupling	999	Next
1	06A919501A	Coolant temperature sender	999	Next
1	4H0121089E	T-piece with thermostat	999	Next
1	25121142	Retaining spring	999	Next
1	32121142	Retaining spring	999	Next
1	5Q0121093R	Bracket	999	Next
1	04E121064E	Coolant pipe	999	Next
1	1K0121087B	Distributor	999	Next
1		Coolant hose with quick release coupling	999	Next
1		Coolant hose with quick release coupling	999	Next
1	4A0820199	Double cable tie 7X213/140	999	Next
1		Cooler for coolant	999	Next
1		Coolant hose	999	Next
1		Coolant regulator	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next
1	N 90687201	Spring band clamp 40X12	999	Next
1	N 90686701	Spring band clamp 14X12	999	Next

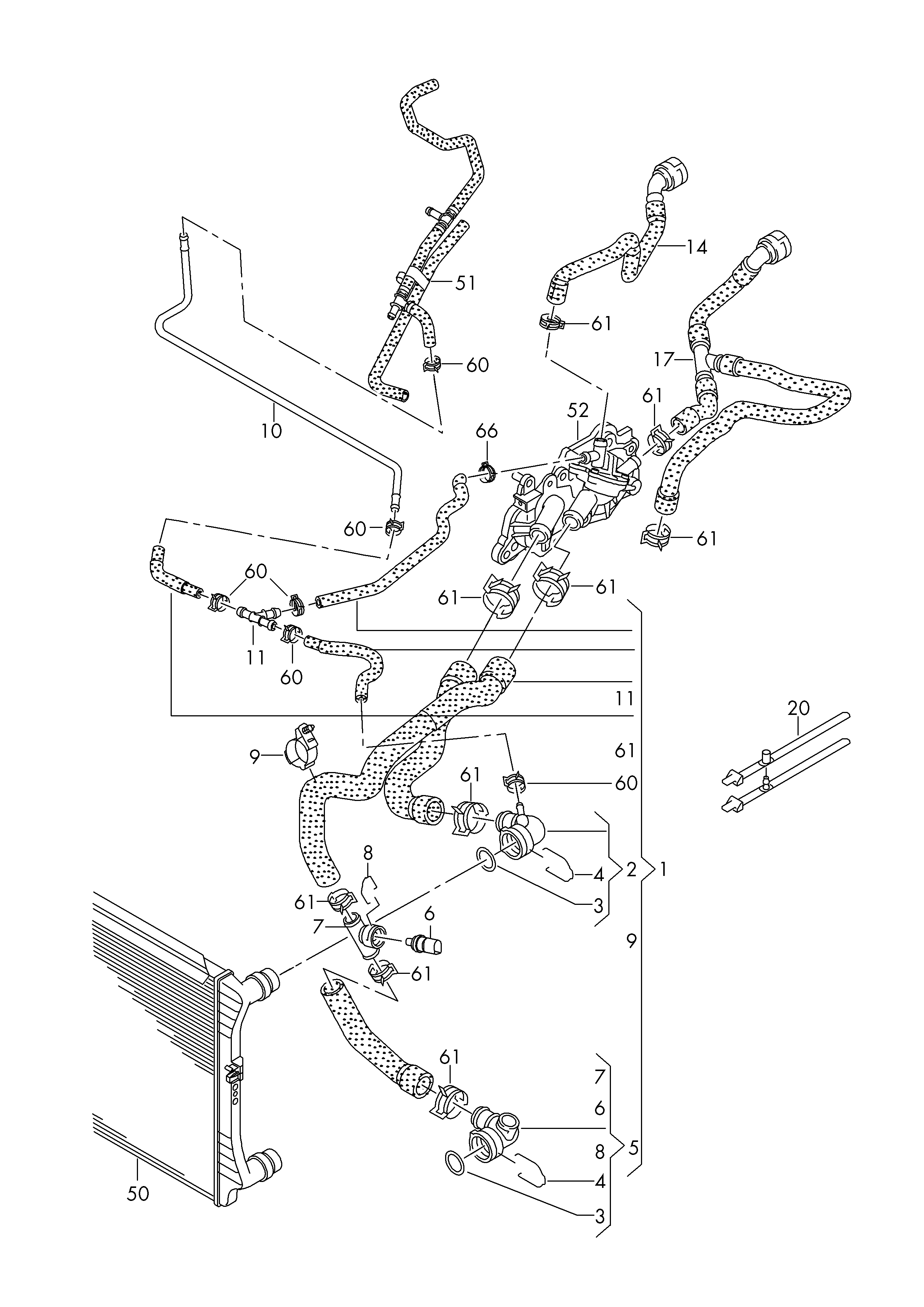

Scheme Coolant cooling system 1.4ltr., left petrol eng.+, CZDA, CZDB Volkswagen Tiguan 2010-2017 EUR
