Coolant cooling system 1.4ltr. 4-cylinder+, petrol eng.+, CKMA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0122291AD	Quick acting coupling	999	Next
3	N90765301	O-ring 32X4	999	Next
4	1J0121142	Retaining spring 32MM	999	Next
5	32121142	Retaining spring	999	Next
6	N90316801	O-ring 19,6X3,65	999	Next
7	06A919501A	Coolant temperature sender	999	Next
8	3C0121101AH	Coolant hose	999	Next
8	3C0121101AJ	Coolant hose	999	Next
9	3C0121063H	Coolant hose	999	Next
9	3C0121063J	Coolant hose	999	Next
10	3C0121096AD	Coolant hose	999	Next
10	3C0121096AE	Coolant hose	999	Next
11	3C0121447BF	Coolant hose	999	Next
12	3C0121051AE	Coolant hose	999	Next
12	3C0121051AF	Coolant hose	999	Next
14	1K0121093AT	Hose connector	999	Next
15	1K0122291BE	Quick acting coupling	999	Next
16	03C121050L	Coolant pipe	999	Next
17	03C121437	O-ring 15X1,8	999	Next
18	1K0121058BH	Coolant hose (coolant pipe> coolant pipe)	999	Next
19	3C0121093	Hose bracket	999	Next
20	1K0121070BJ	Coolant pipe	999	Next
21	1K0121058BR	Coolant hose (coolant pipe> coolant pipe)	999	Next
22	1K0965561F	Additional coolant pump	999	Next
23	N10124408	Hexagon socket head bolt (combi) M6X20	999	Next
24	N10240003	Hex collared bolt M8X32	999	Next
25	1K0121093AD	Bracket for additional coolant pump	999	Next
25	1K0121093BJ	Bracket for additional coolant pump	999	Next
26	1K0121063P	Coolant hose	999	Next
27	03C121497C	Coolant pipe	999	Next
28	WHT003376	O-ring 9,6X2,5	999	Next
29	03C121469D	Coolant pipe	999	Next
30	N90355405	Socket head bolt with inner multipoint head M7X14	999	Next
31	N91073301	Hexagon socket flat head bolt M6X12	999	Next
40		Coolant regulator housing cooler for coolant	999	Next
41		Oil cooler	999	Next
42		Exhaust manifold with turbocharger	999	Next
43, 45, 46		Coolant hose	999	Next
44		Coolant pipe	999	Next
60	N90686701	Spring band clamp 14X12	999	Next
61	N90686902	Spring band clamp 23X12	999	Next
61	N90686901	Spring band clamp 23X12	999	Next
62	N90687001	Spring band clamp 27X12	999	Next
64	N90687201	Spring band clamp 40X12	999	Next

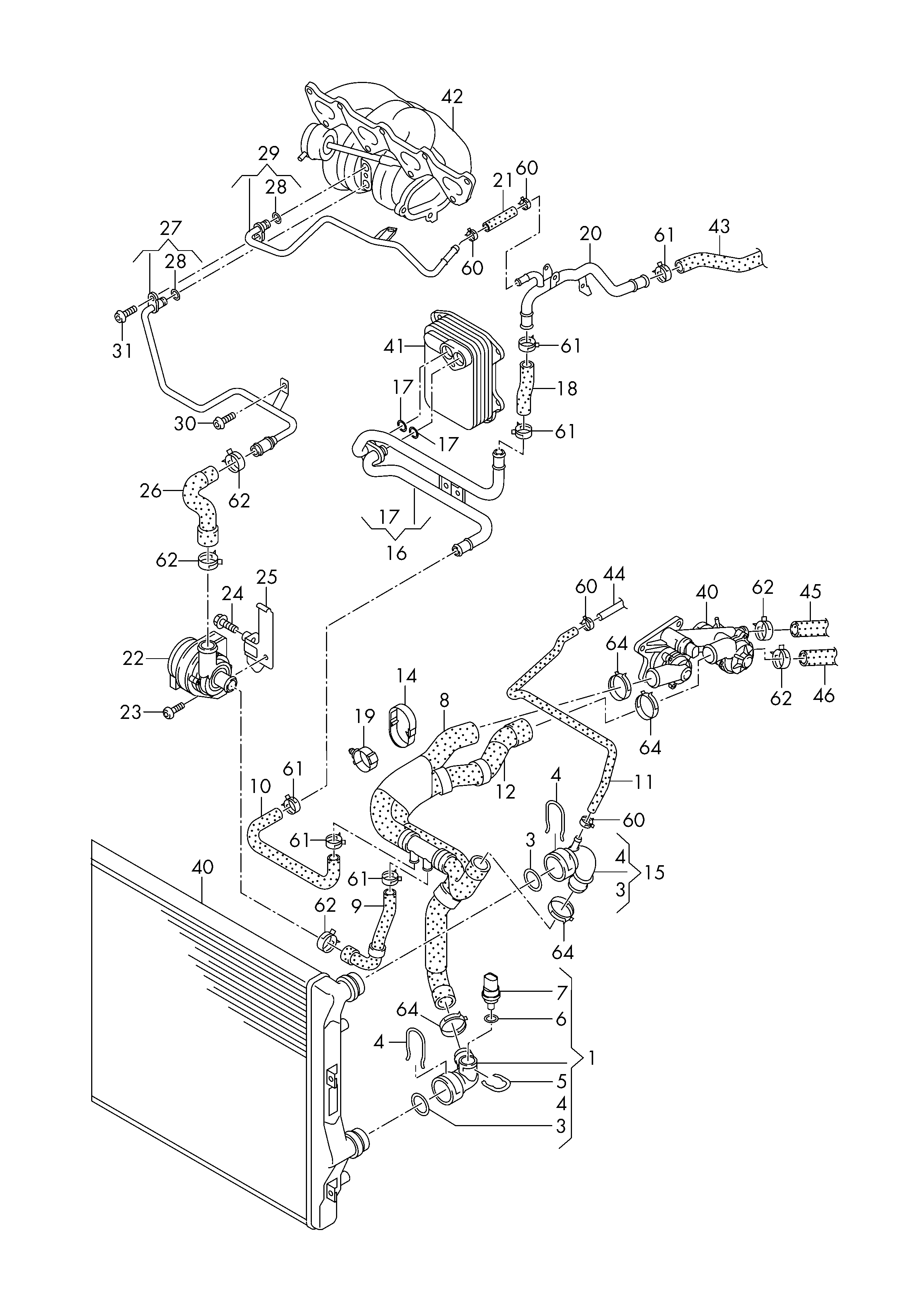

Scheme Coolant cooling system 1.4ltr. 4-cylinder+, petrol eng.+, CKMA Volkswagen Passat CC Coupe 2009-2012 EUR
