Converter, oil sump, valve body, for 6-speed automatic gearbox JVZ, MKD, MYY, MYZ, QNR, QNS, QNT, QNU Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	09M323571C	Converter	999	Next
1	09M323571E	Converter	999	Next
1	09M323571F	Converter	999	Next
1	09K321243	Radial shaft seal	999	Next
1	N 10169201	Hexagon nut M10X1	999	Next
1	09M321361A	Transmission oil sump	999	Next
1	WHT000309	Hex collared bolt M6X1X21	999	Next
1	09M321370A	Seal	999	Next
1	09D321368	Magnet	999	Next
1	WHT000315	Hex collared bolt M6X14	999	Next
1	09M325429	Oil strainer	999	Next
1	WHT000311	Hex collared bolt M6X1X28	999	Next
1	09M325039	Valve body	999	Next
1	09M325039 X	Valve body	999	Next
1	09M325039A	Valve body	999	Next
1	09M325039AX	Valve body	999	Next
1	WHT000307	Hex collared bolt M6X21	999	Next
1	09G321363	Oil pipe	999	Next
1	09D321181B	O-ring	999	Next
1	WHT000310A	Sealing plug M10X1	999	Next
1	WHT001425	Hexagon nut M6	999	Next
1	09G321381	Retaining plate	999	Next
1	09G321175	Lever	999	Next
1	09G325215	Piston C1	999	Next
1	09M325233	Spring	999	Next
1	09D321199	Radial shaft seal 11X22X7	999	Next
1		Multi-function switch for automatic gearbox	999	Next
1	09M321243	Shaft oil seal	999	Next
1	09M321243B	Shaft oil seal	999	Next
1	09M321243A	Shaft oil seal	999	Next
1	09G301189	Shaft oil seal	999	Next
1	09G409528	O-ring	999	Next
1	09G301469A	Ventilation union	999	Next
1	09M301472C	Breather line 370MM	999	Next
1		Oil cooler	999	Next

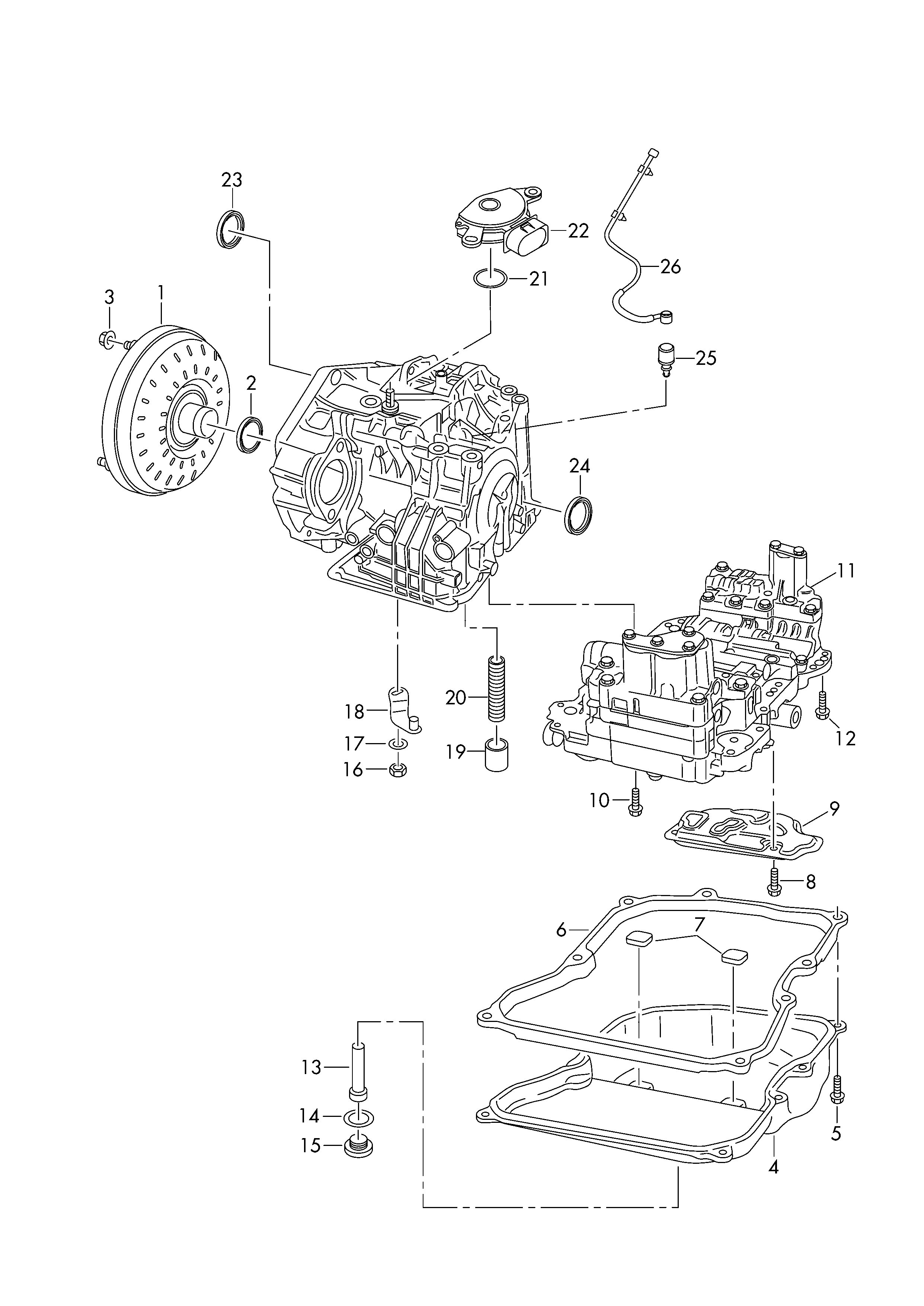

Scheme Converter, oil sump, valve body, for 6-speed automatic gearbox JVZ, MKD, MYY, MYZ, QNR, QNS, QNT, QNU Volkswagen Tiguan 2010-2017 EUR
