Control unit for four-wheel, drive, precharging pump 4motion Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	0BS598554	Repair set for four-wheel drive control unit, before 01.08.2008	999	Next
1	0BS598554A	Repair set for four-wheel drive control unit, D 02.08.2008 - 29.03.2010	999	Next
1	0BS598554B	Repair set for four-wheel drive control unit, D 02.08.2008 - 20.06.2011	999	Next
1	0BS598554C	Repair set for four-wheel drive control unit, D 21.06.2011 and after	999	Next
2	N10594801	Socket head bolt with hexagon socket head M5X45	999	Next
3	0BS598301	Gasket set for control unit	999	Next
5	0AY598549A	Repair set for primer pump	999	Next
5	0BS598549	Repair set for primer pump	999	Next
6	N10544302	Socket head bolt M5X25	999	Next
7	0AY598305	Gasket set for primer pump	999	Next
8	02D598289A	Repair set for drive flange	999	Next
9	02D598275	Gasket set for drive flange	999	Next
12	N90443301	O-ring 130X3	999	Next
20	G060175A2	High-performance oil for four-wheel coupling filling quantity: 720ML	999	Next

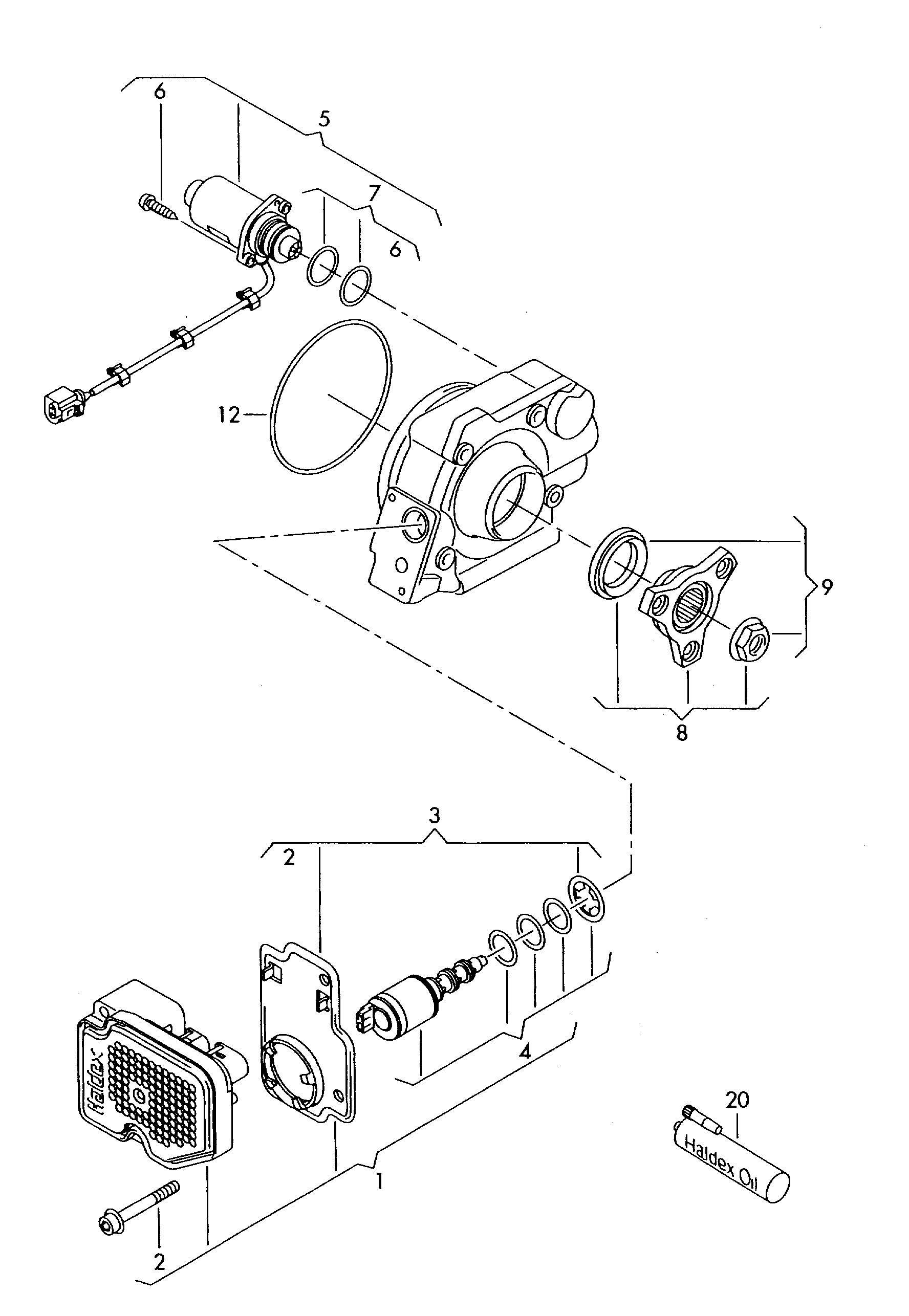

Scheme Control unit for four-wheel, drive, precharging pump 4motion Volkswagen Passat CC Coupe 2009-2012 EUR
