Connecting and mounting parts for alternator poly-v-belt 3.6ltr. BWS, BLV Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	N91032901	Socket head bolt with inner multipoint head M10X85	999	Next
2	022145299L	Belt tensioner damper	999	Next
5	03H260089B	Bracket for alternator and refrigerant compressor, before 03.10.2011	999	Next
5	03H260089G	Bracket for alternator and refrigerant compressor, D 04.10.2011 and after	999	Next
6	N90707502	Hexagon head bolt (combi) M8X100X41	999	Next
20	N10610001	Hex collared bolt alternator M8X90	999	Next
21	022145276F	Idler pulley with bolt 65MM	999	Next
22	022145933AP	Poly-v-belt 21,36X1610MM	999	Next
25	N91102101	Socket head bolt with inner multipoint head M8X45	999	Next
26	N91103601	Cylinder fitting screw with inner multipoint head M8X8,992X28	999	Next

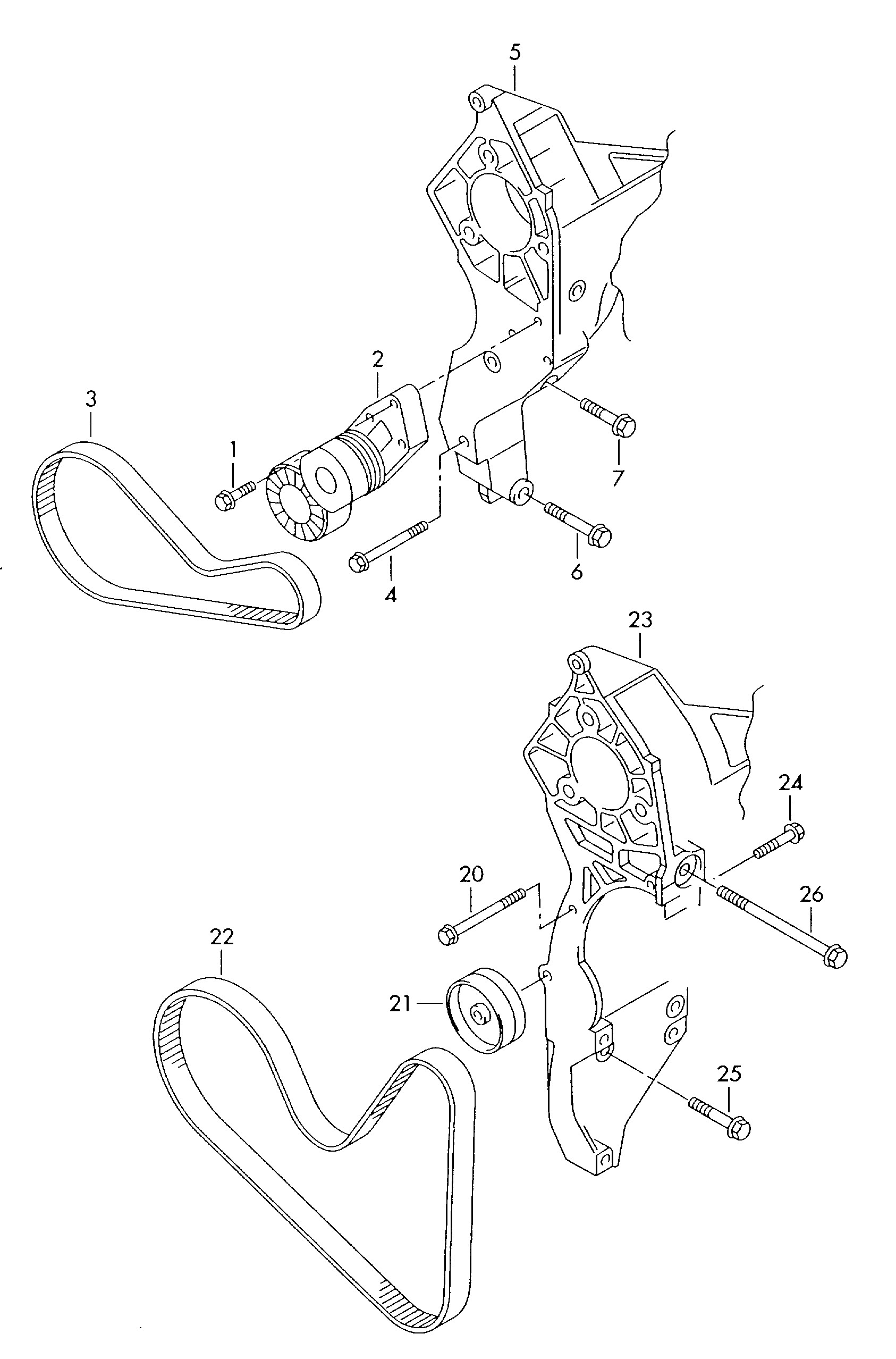

Scheme Connecting and mounting parts for alternator poly-v-belt 3.6ltr. BWS, BLV Volkswagen Passat CC Coupe 2009-2012 EUR
