Connecting and mounting parts for alternator, poly-v-belt 2.0 ltr. CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03L903139Q	Bracket for alternator and refrigerant compressor	999	Next
1A	038103139A	Dowel sleeve 13,5X12,5	999	Next
2	N10699601	Bolt,hex.hd.with shoul.(combi) M10X60	999	Next
3	N10551901	Hex collared bolt M10X30	999	Next
4	N10610001	Hex collared bolt M8X90	999	Next
5		Alternator	999	Next
6	03L903137T	Poly-v-belt for vehicles with air condit. 21,18X1070MM	999	Next
6	03L903137	Poly-v-belt for vehicles with air condit. 21,18X1070MM	999	Next
6	03L998037	Repair set for poly-v-belts with fitting tool 21,36X842MM	999	Next
7	038903315AH	Tensioner	999	Next
8	N10640801	Hexagon bolt M8X50 7	999	Next
9	N10703701	Hex collared bolt M10X52	999	Next
10		A/c compressor	999	Next

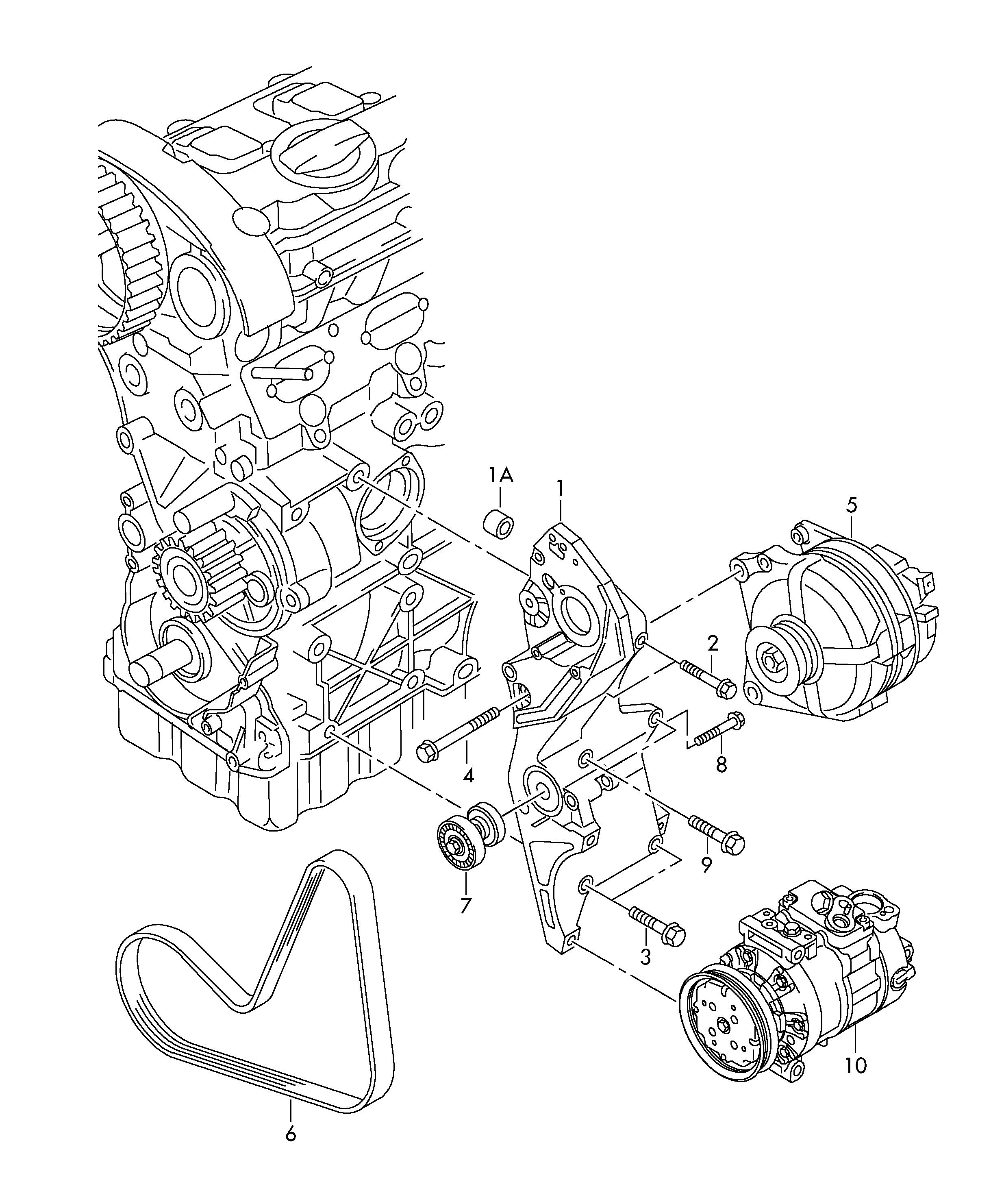

Scheme Connecting and mounting parts for alternator, poly-v-belt 2.0 ltr. CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR
