Connecting and mounting parts for alternator, poly-v-belt 2.0 ltr. CAWB, CAWA, CCTA, CCZA, CCZB, CCZC, CCZD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J903143AH	Bracket for alternator and refrigerant compressor also use: N0297022, N0138115	999	Next
1	N 0297022	Sealing plug M10X1	999	Next
1	N 0138115	O-ring 10X13,5	999	Next
1	N 91045502	Socket head bolt with inner multipoint head M8X65	999	Next
1	N 91026802	Socket head bolt with inner multipoint head M8X20	999	Next
1	N 91102101	Socket head bolt with inner multipoint head M8X45	999	Next
1		Alternator	999	Next
1	N 10610001	Hex collared bolt M8X90	999	Next
1	06J903133A	Tensioner contains: 06J903326, N91149001	999	Next
1	06J903326	Guide ring	999	Next
1	03L260817	Centre sleeve to be used for item: 11,15X6,5 11	999	Next
1	N 91149001	Socket head bolt with hexagon socket head (combination) M6X10	999	Next
1	06J260849D	Poly-v-belt 21,36X1117MM	999	Next
1	06J145172	Holder with idler pulley	999	Next
1	N 90707502	Hexagon head bolt (combi) M8X100X41	999	Next

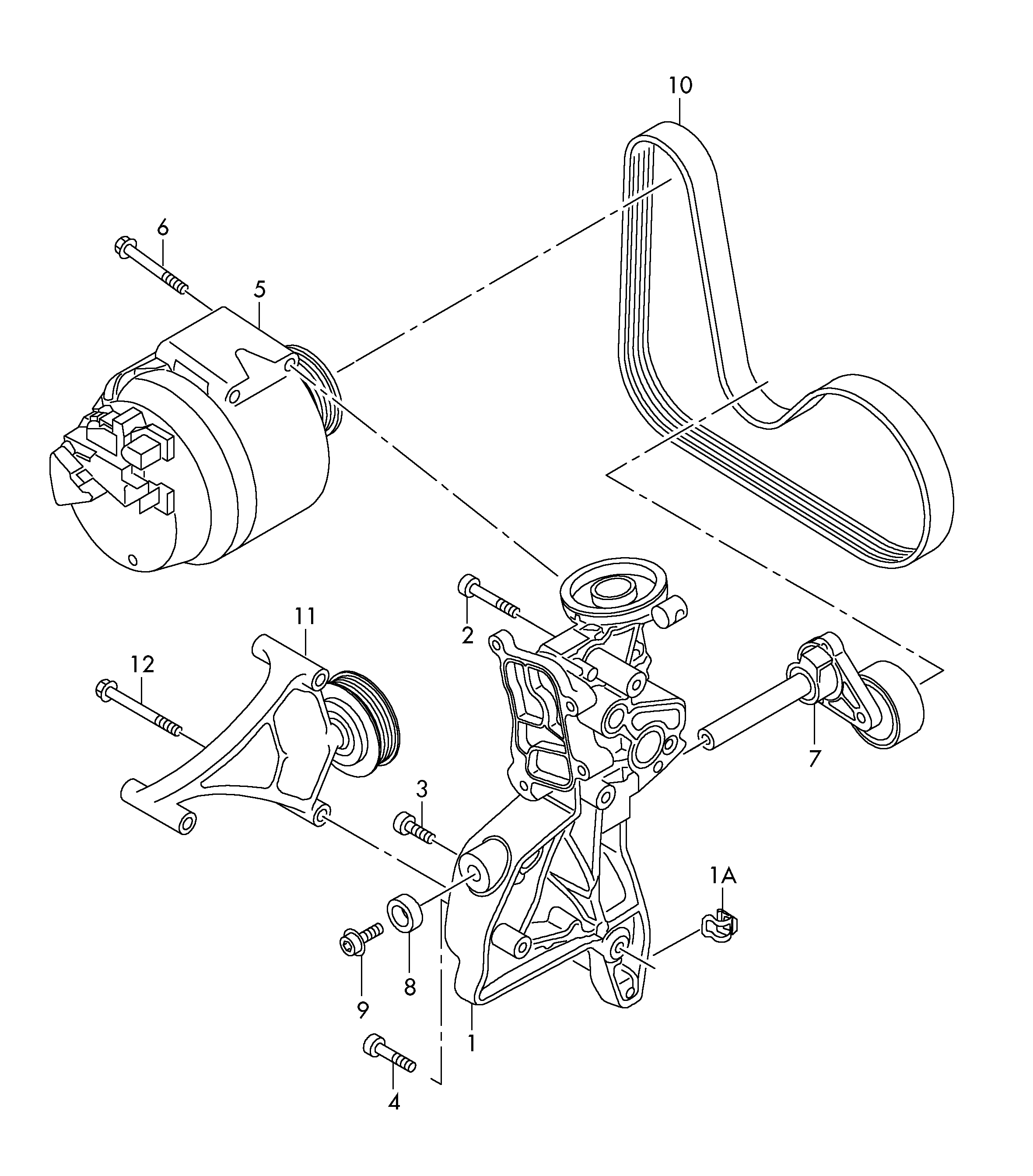

Scheme Connecting and mounting parts for alternator, poly-v-belt 2.0 ltr. CAWB, CAWA, CCTA, CCZA, CCZB, CCZC, CCZD Volkswagen Tiguan 2010-2017 EUR
