Connecting and mounting parts for alternator poly-v-belt 1.8/2.0ltr. BZB, CAWB, CDAA, CCTA, CCZA, CBFA, CCZB, "GUS"+CGYA, "GUS"+CDAB Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06J903143S	Bracket for alternator and refrigerant compressor	999	Next
1	06J903143AH	Bracket for alternator and refrigerant compressor	999	Next
-	N0297022	Sealing plug M10X1	999	Next
-	N0138115	O-ring 10X13,5	999	Next
2	N91045502	Socket head bolt with inner multipoint head M8X65	999	Next
3	N91026802	Socket head bolt with inner multipoint head M8X20	999	Next
4	N91102101	Socket head bolt with inner multipoint head M8X45	999	Next
6	N10610001	Hex collared bolt M8X90	999	Next
7	06J903133A	Tensioner contains: 06J 903 326, N 911 490 01	999	Next
8	06J903326	Guide ring	999	Next
9	N91149001	Socket head bolt with hexagon socket head (combination) M6X10	999	Next
10	06J260849D	Poly-v-belt 21,36X1117MM	999	Next

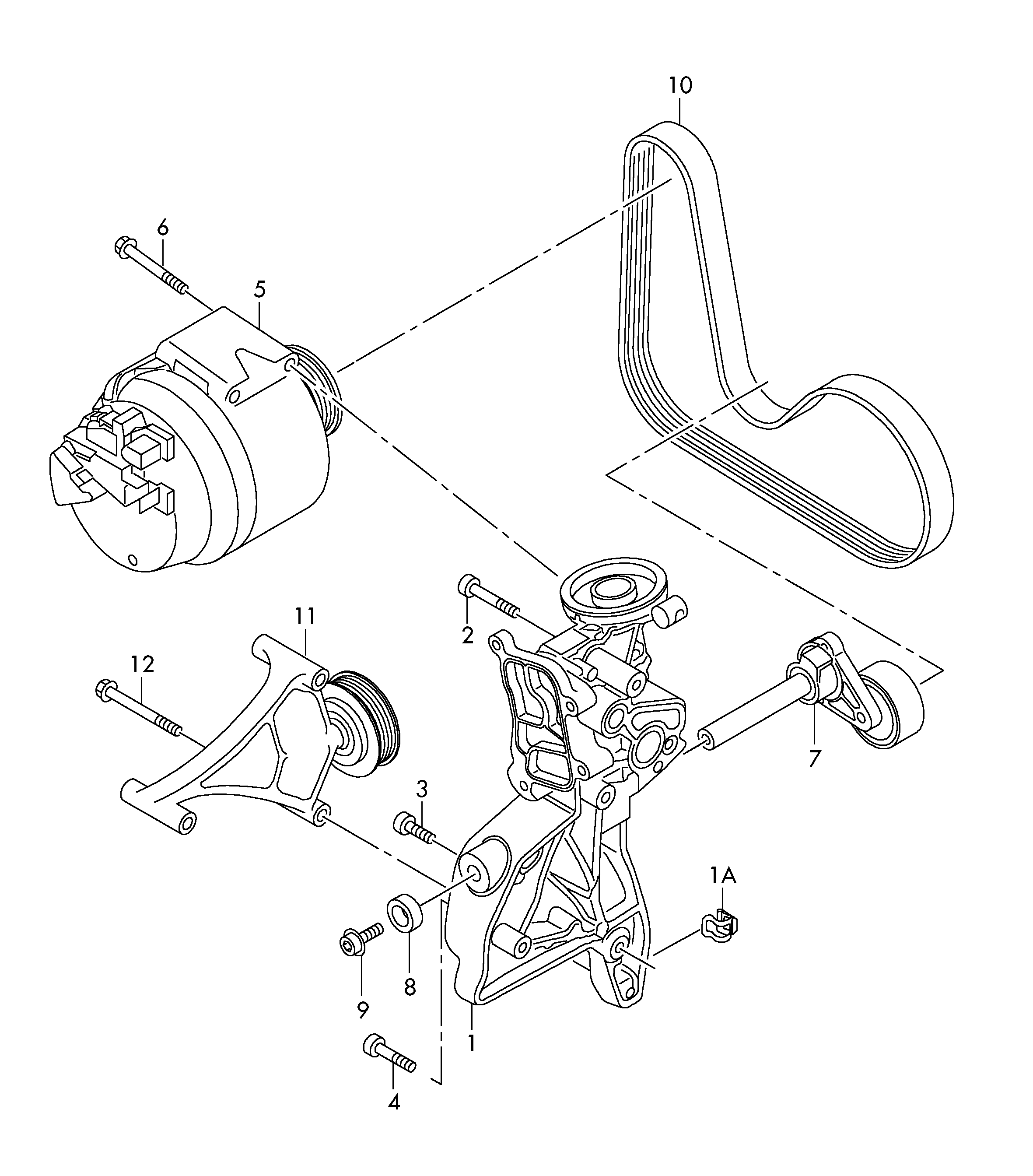

Scheme Connecting and mounting parts for alternator poly-v-belt 1.8/2.0ltr. BZB, CAWB, CDAA, CCTA, CCZA, CBFA, CCZB, "GUS"+CGYA, "GUS"+CDAB Volkswagen Passat CC Coupe 2009-2012 EUR
