Connecting and mounting parts for alternator, poly-v-belt 1.6ltr. CLSA Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RF260885	Bracket for a/c compressor	999	Next
1A	03L260817	Centre sleeve 11,15X6,5	999	Next
2	03C145299C	Belt tensioner damper for a/c compressor to be used for item: use if required: 1 N 106 237 01	999	Next
3	6Q0145299	Tensioner to be used for item:	999	Next
3	6Q0145299A	Tensioner to be used for item:	999	Next
7	6Q0260849A	Poly-v-belt for vehicles with air condit. 21,16X1736MM	999	Next
7	6RF260849	Poly-v-belt 21,36X1736MM	999	Next
9		A/c compressor	999	Next
10		Alternator	999	Next
11	N10610001	Hex collared bolt M8X90	999	Next
12	N10197304	Hex collared bolt only for: M10X65 6Q0 145 299	999	Next
12	N10240003	Hex collared bolt only for: M8X32 6Q0 145 299	999	Next
13		Not for this model	999	Next
14	N10664502	Hex collared bolt M8X45MM	999	Next
15	N10665601	Hexagon head bolt (combi) to be used for item: M10X60-ITR 2	999	Next

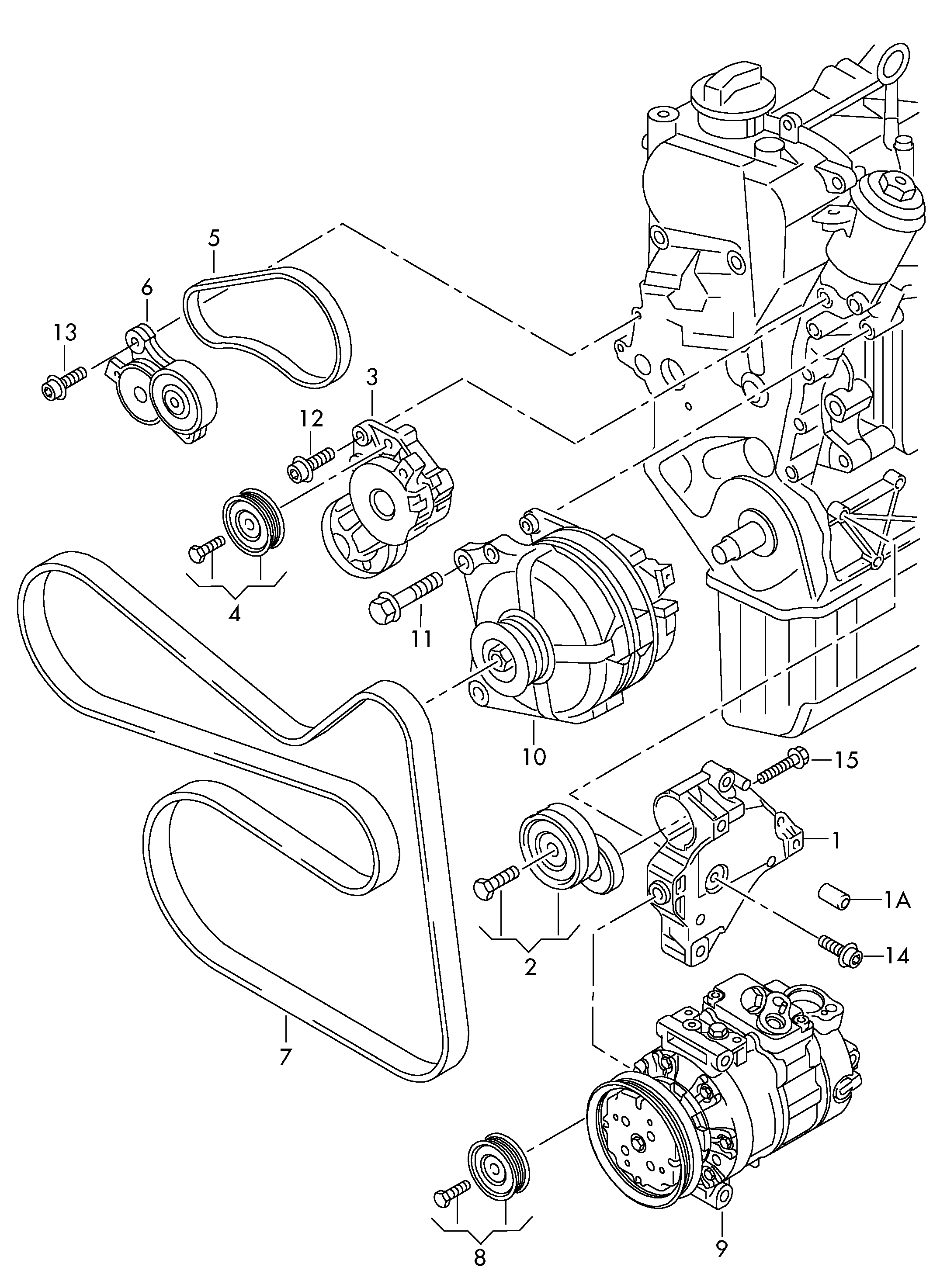

Scheme Connecting and mounting parts for alternator, poly-v-belt 1.6ltr. CLSA Volkswagen Polo 2013-2017 EUR
