Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CGGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F260885	Bracket for a/c compressor	999	Next
2	03F145299A	Belt tensioner damper with bra	999	Next
3	N10664502	Hex collared bolt M8X45MM 1,2	999	Next
4	03C145299Q	Tensioner	999	Next
5	N10623701	Hex collared bolt M10X65 4	999	Next
6		A/c compressor	999	Next
7		Alternator	999	Next
8	N10610001	Hex collared bolt M8X90	999	Next
9	03F145276	Idler pulley with bolt GLATT	999	Next
10	03F903310	Protective cap	999	Next
11	03F260849A	Poly-v-belt for vehicles with air condit. 21,36X1690MM	999	Next
11	03F903137A	Poly-v-belt 21,36X1429MM	999	Next
12	03F903141F	Bracket for alternator oil filter bracket	999	Next
13	03F903575C	Seal bracket for alternator oil filter bracket	999	Next
14	N10664502	Hex collared bolt M8X45MM	999	Next
15	N10708201	Hexagon bolt M8X62	999	Next
16	03F121215	Bush	999	Next

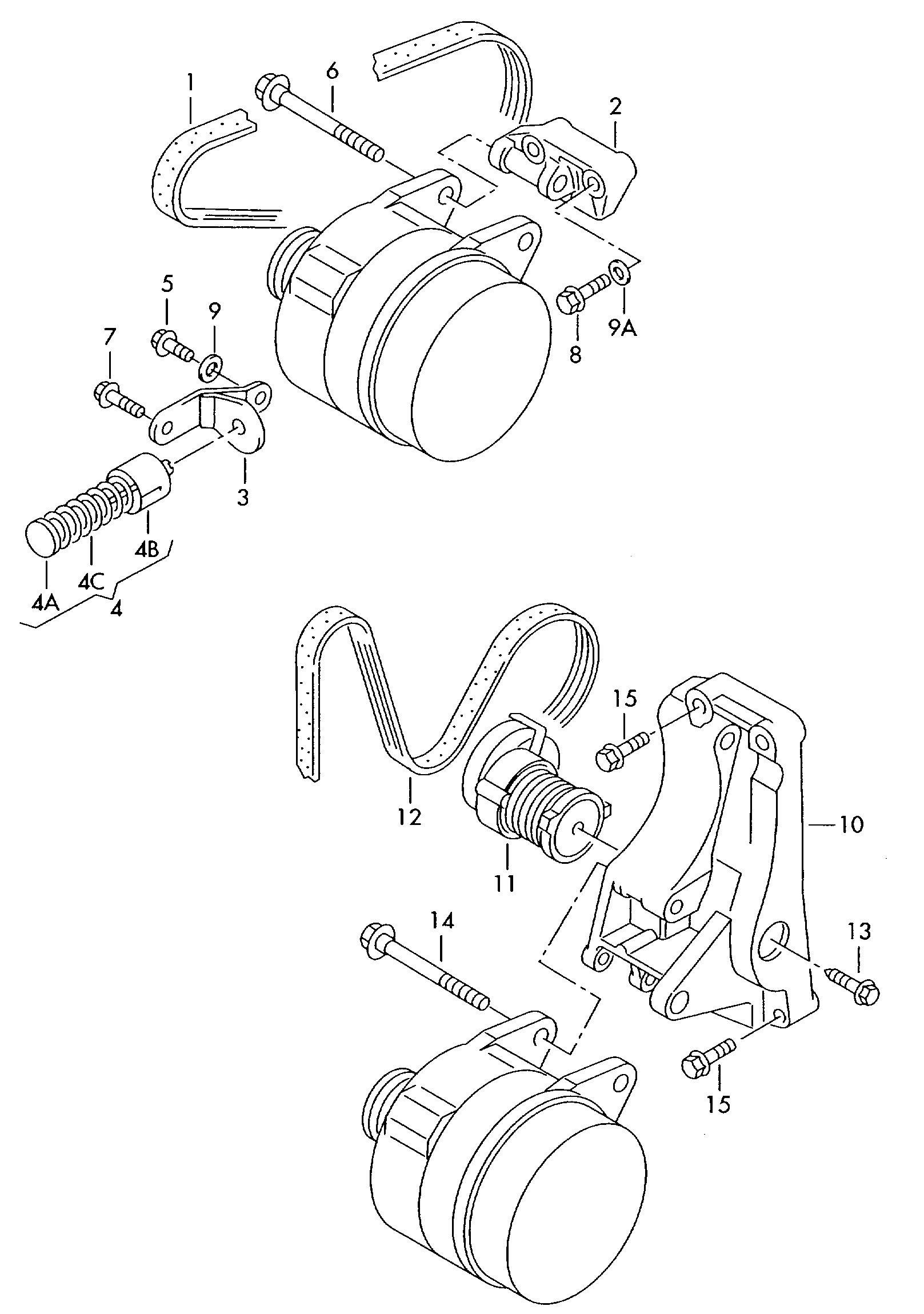

Scheme Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CGGA Volkswagen Golf Plus 2012-2014 EUR
