Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CAXA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	036145933AG	Poly-v-belt 21,36X736MM	999	Next
2	030145169N	Bracket for alternator	999	Next
4	30903329	Tensioning spring	999	Next
6	N10610001	Hex collared bolt M8X90	999	Next
8	N90596906	Bolt, hex. hd. with shoulder, self-locking M10X55X32	999	Next
10	036260883B	Bracket for alternator	999	Next
10A	03L260817	Centre sleeve 11,15X6,5	999	Next
11	030145299F	Belt tensioner damper	999	Next
12	1K0260849B	Poly-v-belt	999	Next
13	N10240103	Hex collared bolt BM8X42	999	Next
14	N10610001	Hex collared bolt M8X90	999	Next
15	N90596906	Bolt, hex. hd. with shoulder, self-locking M10X55X32	999	Next
15	N10241605	Hex collared bolt M10X45	999	Next

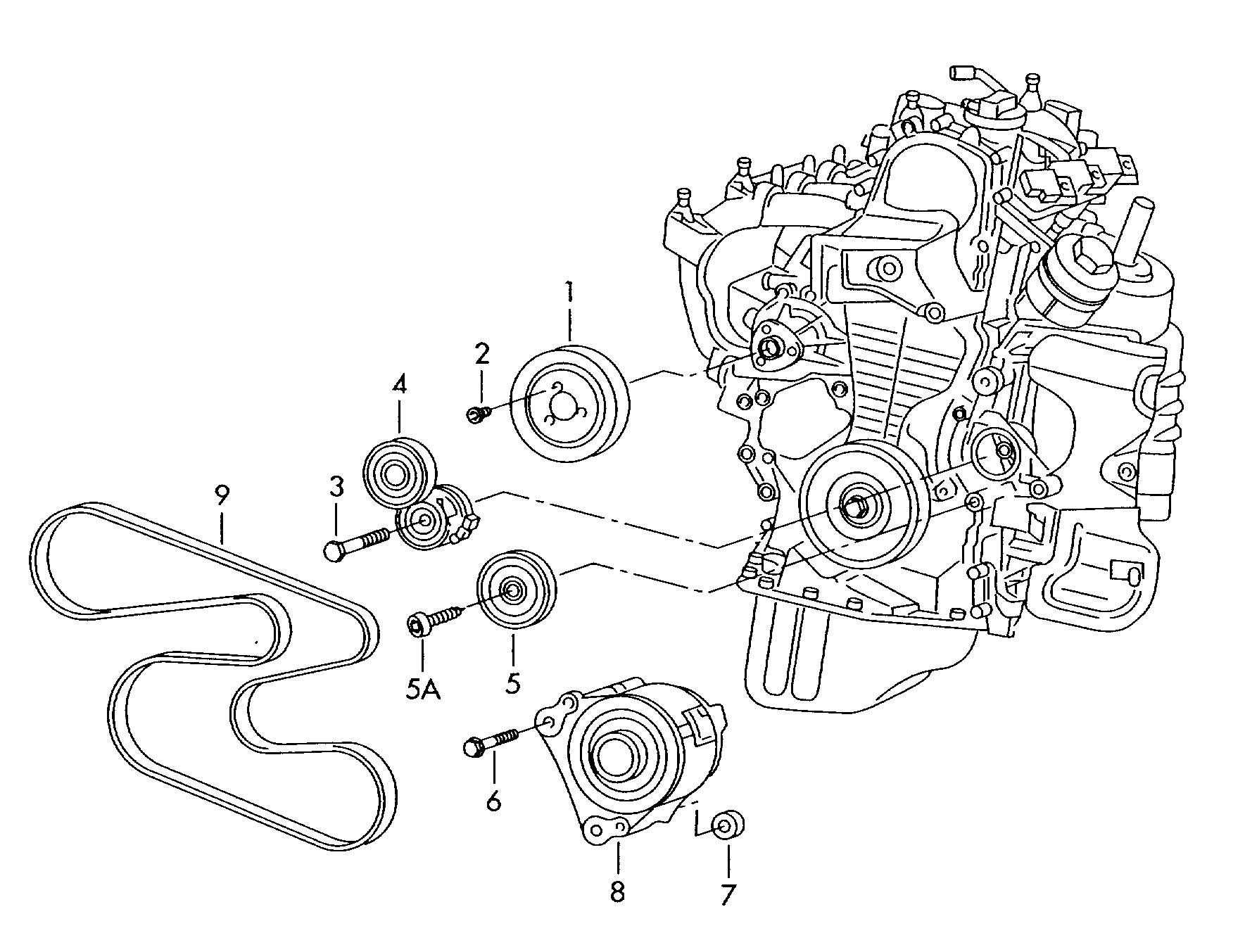

Scheme Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CAXA Volkswagen Golf Plus 2012-2014 EUR
