Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
3	N10240003	Hex collared bolt M8X32	999	Next
3	N10197304	Hex collared bolt M10X65	999	Next
3	N91031702	Hexagon socket head bolt with shoulder for vehicles with air condit. M10X50	999	Next
4	6Q0145299	Tensioner	999	Next
4	6Q0145299A	Tensioner	999	Next
4	03C145299Q	Tensioner for vehicles with air condit.	999	Next
5	6QD145276	Idler pulley with bolt for vehicles with air condit. 76MM	999	Next
5	1J0145276B	Idler pulley with bolt for vehicles with air condit. 76MM	999	Next
5A		Hexagon bolt included in position: 5	999	Next
6	N10610001	Hex collared bolt M8X90	999	Next
8		Alternator	999	Next
9	6Q0903137A	Poly-v-belt 21,16X1088MM	999	Next
9	6Q0260849A	Poly-v-belt for vehicles with air condit. 21,16X1736MM	999	Next
9	6Q0260849E	Poly-v-belt for vehicles with air condit. 21,36X1736MM	999	Next

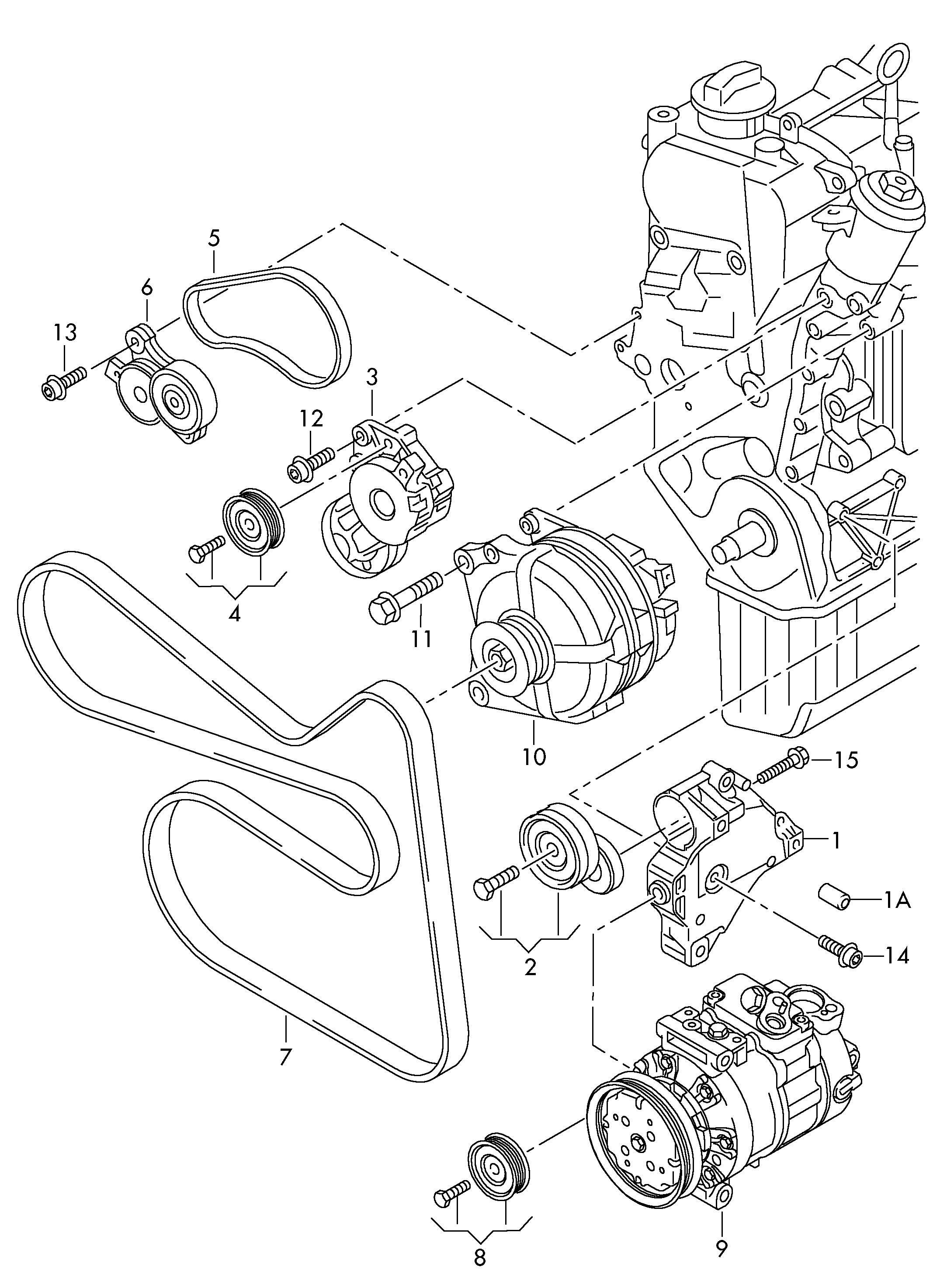

Scheme Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
