Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C903143B	Bracket for a/c compressor	999	Next
1	03L260817	Centre sleeve	999	Next
1	03C145299AC	Tensioner for a/c compressor to be used for item: use if required:	999	Next
1	03C145299AF	Tensioner for a/c compressor to be used for item: use if required: 1 N 106 237 01	999	Next
1	03C145299J	Tensioner to be used for item: 7	999	Next
1	03C145933A	Poly-v-belt for vehicles with air supply unit 17,65X492MM	999	Next
1	03C145299M	Belt tensioner damper compressor	999	Next
1	03C260849A	Poly-v-belt for vehicles with air condit. 21,18X1698MM	999	Next
1	03C903137A	Poly-v-belt 21,18X1596MM	999	Next
1	03C145276C	Idler pulley with bolt 81MM	999	Next
1		A/c compressor	999	Next
1		Alternator	999	Next
1	N 10610001	Hex collared bolt M8X90	999	Next
1	N 10638501	Socket head collared bolt with inner multipoint head only for: M8X45 3C0 145 299 J	999	Next
1	N 91043701	Socket head bolt with inner multipoint head M8X40	999	Next
1	N 0195433	Hex collared bolt M8X50	999	Next
1	N 10623701	Hex collared bolt to be used for item: M10X65 2	999	Next

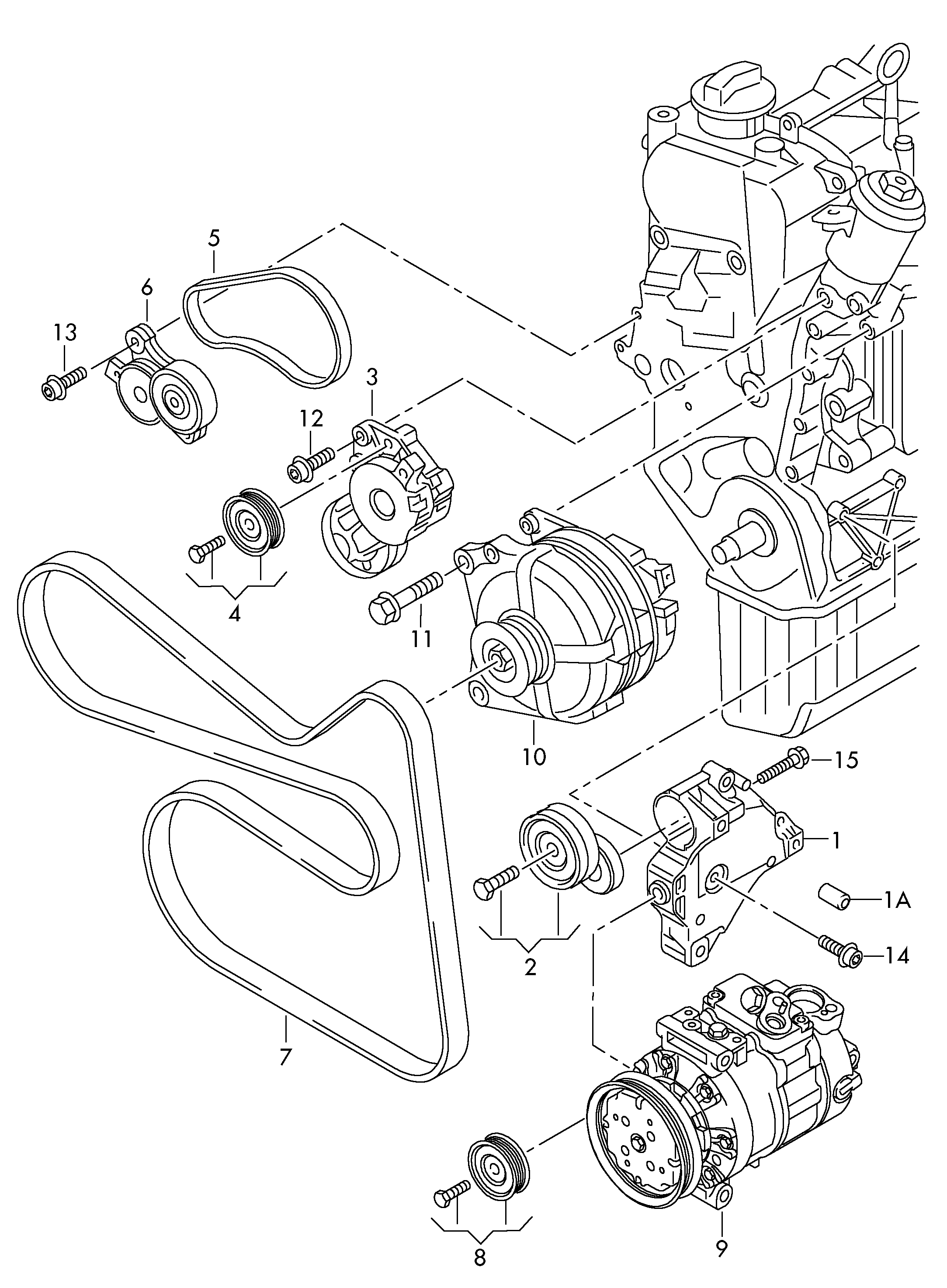

Scheme Connecting and mounting parts for alternator, poly-v-belt 1.4ltr. CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR
