Compressor 1.4ltr. petrol eng.+, CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C145601E	Compressor	999	Next
1	03C145601EX	Compressor	999	Next
1	03C198601E	Repair kit for compressor also use: D188500A2, G070000A1	999	Next
1	D 188500A2	Sealant	999	Next
1	G 070000A1	Compressor oil	999	Next
1	03C145269B	Poly v-belt pulley	999	Next
1	N 10629602	Hex collared bolt M10X35	999	Next
1	N 10636601	Bolt, hex. hd. with shoul. (combi) M8X110X80	999	Next
1	03C145650B	Pressure damper	999	Next
1	03C145650C	Pressure damper	999	Next
1	03C145417A	Seal	999	Next
1	N 10473401	Hexagon socket head panel bolt 6X20	999	Next
1	03C145674B	Pressure pipe	999	Next
1	03C145288B	O-ring	999	Next
1	03C145755J	Connector union	999	Next
1	03C145773D	Seal	999	Next
1	N 91096901	Round hd. screw M6X22	999	Next
1	N 10626101	Hexagon socket flat head bolt 6X45	999	Next
1	03C145747C	Intake hose	999	Next
1	N 90656001	Spring band clamp 55X12	999	Next
1	03C129540D	Foam pressure damper	999	Next
1	03C129540E	Foam belt cover	999	Next
1	03C129540F	Foam pressure damper	999	Next
1	03C103502K	Noise insulation	999	Next
1	03C129540K	Foam compressor	999	Next
1	03C103502M	Noise insulation	999	Next
1	03C198961	1 set of noise insulators for compressors	999	Next
1	03C129540H	Foam compressor	999	Next
1	03C145851F	Cover	999	Next
1	03C145851G	Cover	999	Next
1	03C145851K	Cover	999	Next
1	03C145851L	Cover	999	Next

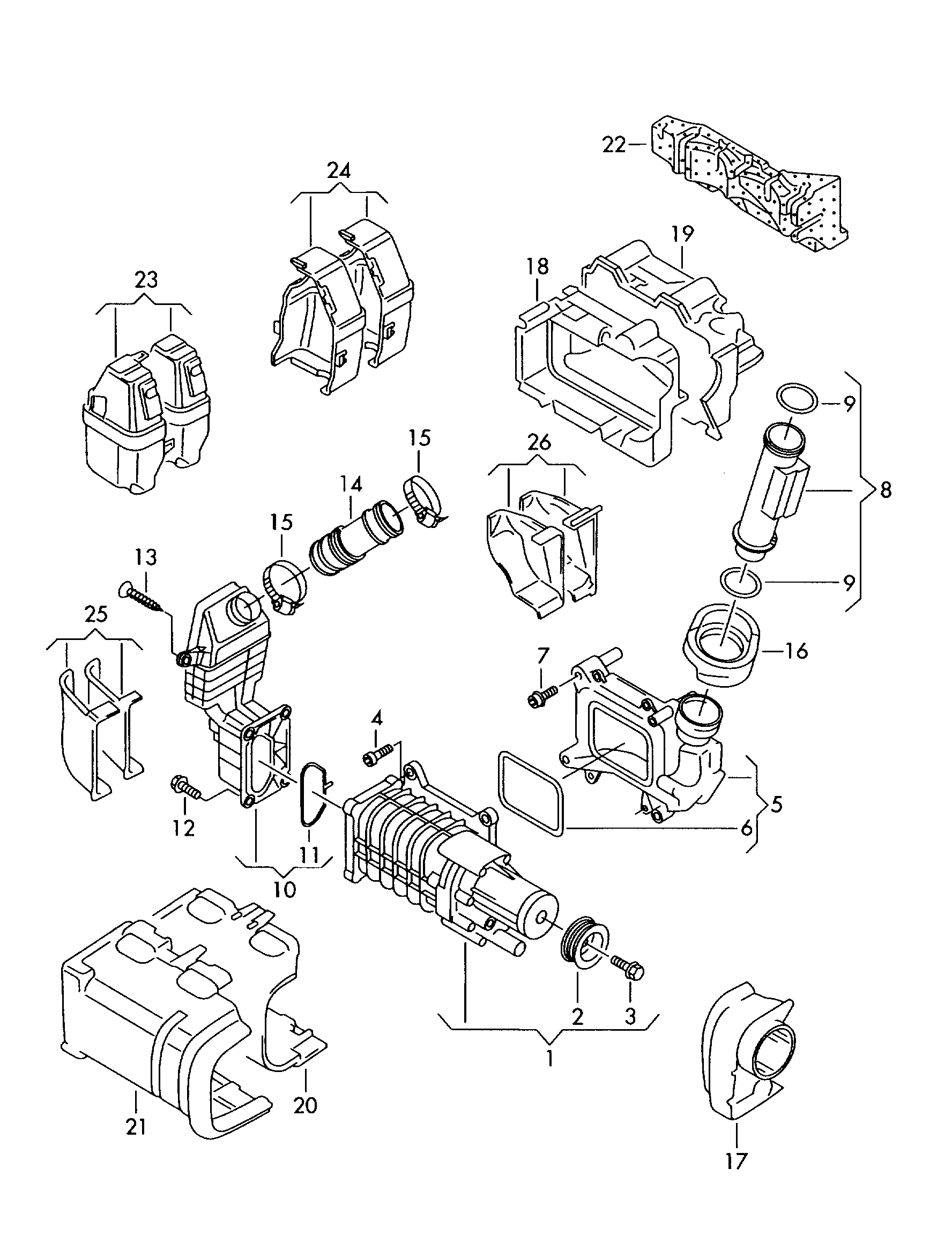

Scheme Compressor 1.4ltr. petrol eng.+, CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR
