Clutch pedal mechanism Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0721373L	Bracket	999	Next
1	1K0721373N	Bracket	999	Next
1	N 01037013	Hexagon bolt BM8X70	999	Next
1	N 02300313	Hexagon collar nut self-locking M8	999	Next
1	N 02300313	Hexagon collar nut self-locking M8	999	Next
1	1K0721410C	Seal	999	Next
1	5N1721913	Crash member	999	Next
1	1K2721913J	Crash member	999	Next
1		Hex collared bolt	999	Next
1	1J0721153A	Bearing bush	999	Next
1	WHT000671	Bearing pin 13X44,11	999	Next
1	1K1721321D	Clutch pedal	999	Next
1	1K1721321D 9B9	Clutch pedal satin black	999	Next
1	1K1721321E	Clutch pedal	999	Next
1	1K1721321E 9B9	Clutch pedal satin black	999	Next
1	3C2721318A	Clutch pedal	999	Next
1	1K1721174	Clutch pedal pad	999	Next
1	1K1721174 9B9	Clutch pedal pad satin black	999	Next
1	1K1721601	Cap	999	Next
1	1K1721601 4J4	Cap brushed aluminium	999	Next
1	1K2721174A	Clutch pedal pad	999	Next
1	1K2721174A 9B9	Clutch pedal pad satin black	999	Next
1	1K2721601	Cap	999	Next
1	1K2721601 4J4	Cap brushed aluminium	999	Next
1	1K0721403	Over-centre spring	999	Next
1	1K0721403	Over-centre spring	999	Next
1	1K0721403	Over-centre spring	999	Next
1	1J0721381	Stop buffer	999	Next
1	6Q1721453B	Hose	999	Next
1	1K2721453B	Hose	999	Next
1	1K2721453C	Hose	999	Next
1	5N2721453	Hose	999	Next
1	3C1721453	Flex hose 165MM	999	Next
1	3C0721388J	Master cylinder	999	Next
1	3C0721388N	Master cylinder	999	Next
1	3C0927810C	Hall sensor	999	Next
1	3C0927810D	Hall sensor	999	Next
1	5N1721480C	Pipe assembly also use: 5N0 721 491 A	999	Next
1	1J0721468C	Breather assy.	999	Next
1	1K0721468C	Breather assy.	999	Next
1	5N0721491A	Clip	999	Next
1	1K0721491B	Clip	999	Next
1	1K0721357A	Support	999	Next
1	1K0721357C	Support	999	Next
1	5N0721491	Clip	999	Next
1	02F141143A	O-ring 9,25X6,07X1,78	999	Next
1	1K0798741	Gasket set	999	Next
1	1K0721741	O-ring	999	Next
1	1K0798741	Gasket set	999	Next
1	5N2721465G	Pipe assembly	999	Next
1	5N2721465F	Pipe/hose line	999	Next
1	G 00045002	Grease 90G	999	Next
1	5N2721615	Heat reflective mat	999	Next
1	5N2721615A	Heat reflective mat	999	Next
1	N 90335004	Clamping washer 5X30	999	Next
1	5N0721794	Damping	999	Next
1	5N0721794	Damping	999	Next
1	N 10726401	Clamping washer B-6X20	999	Next

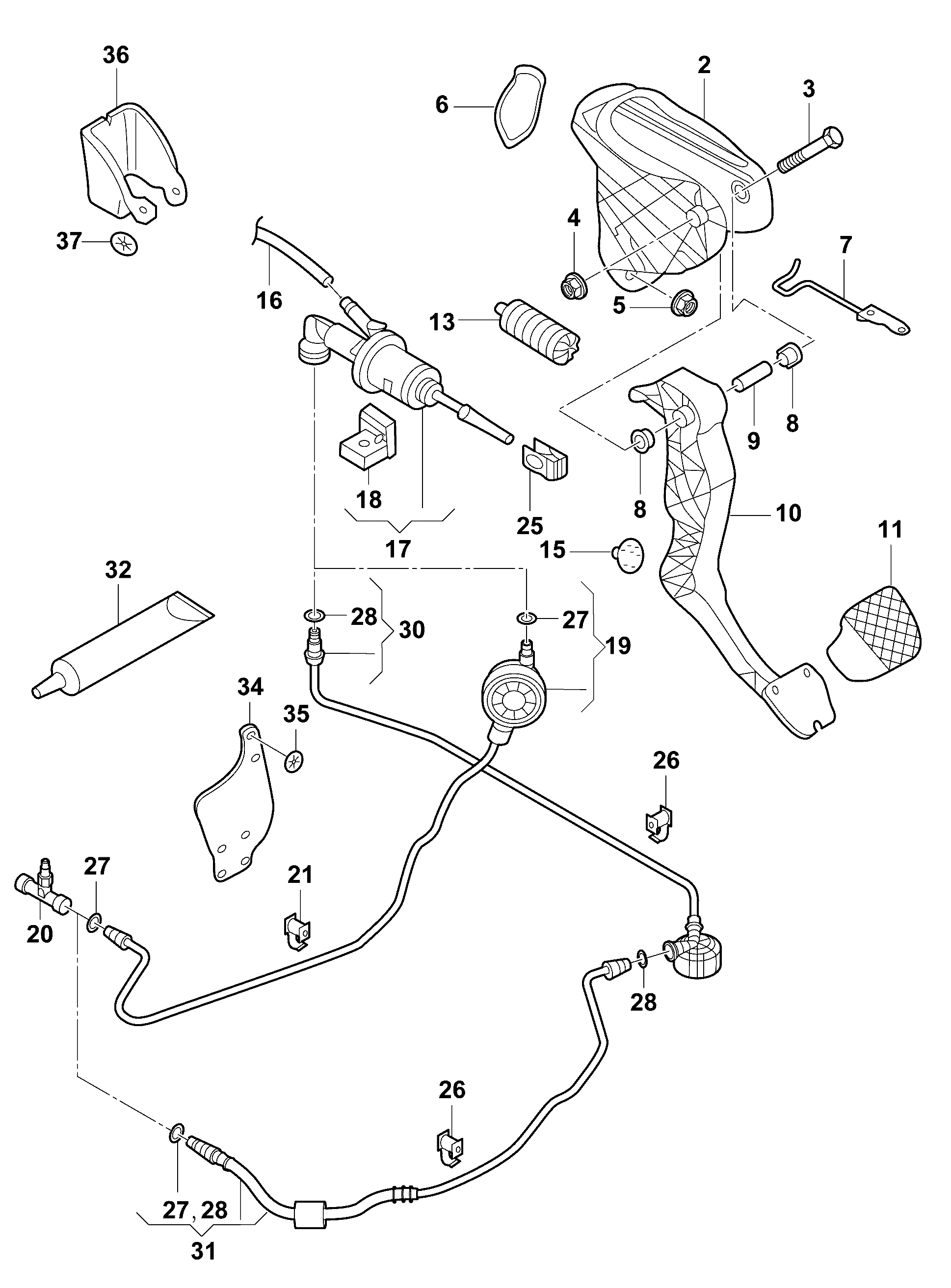

Scheme Clutch pedal mechanism Volkswagen Tiguan 2010-2017 EUR
