Clutch pedal mechanism Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
2	1K0721373L	Bracket	999	Next
3	N01037013	Hexagon bolt M8X70	999	Next
4	N02300313	Hexagon collar nut self-locking M8	999	Next
5	N02300313	Hexagon collar nut self-locking M8	999	Next
6	1K0721410C	Seal	999	Next
7	7N1721913	Crash member	999	Next
7	1K2721913T	Crash member	999	Next
8	1J0721153A	Bearing bush	999	Next
9	WHT000671	Bearing pin 13X44,11	999	Next
10	1K1721321D	Clutch pedal	999	Next
10	1K1721321D9B9	Clutch pedal satin black	999	Next
10	1K2721318D	Clutch pedal	999	Next
11	1K1721174	Clutch pedal pad	999	Next
11	1K17211749B9	Clutch pedal pad satin black	999	Next
11	1K1721601	Cap	999	Next
11	1K17216014J4	Cap brushed aluminium	999	Next
11	1K2721174A	Clutch pedal pad	999	Next
11	1K2721174A9B9	Clutch pedal pad satin black	999	Next
11	1K2721601	Cap	999	Next
11	1K27216014J4	Cap brushed aluminium	999	Next
13	1J2721403A	Over-centre spring	999	Next
13	1J2721403B	Over-centre spring	999	Next
13	1K0721403	Over-centre spring	999	Next
15	1J0721381	Stop buffer	999	Next
16	6Q1721453B	Hose 225MM	999	Next
16	1K2721453C	Hose 210MM	999	Next
17	1K0721388AB	Master cylinder	999	Next
18	1K0927810D	Hall sensor	999	Next
19	1K1721465AM	Pipe/hose line	999	Next
19	1K1721465AN	Pipe/hose line	999	Next
19	1K2721465BN	Pipe/hose line	999	Next
19	1K2721465BP	Pipe/hose line	999	Next
19	1K2721465BR	Pipe/hose line	999	Next
19A	1K1721465AP	Pipe/hose line	999	Next
19A	1K1721465AQ	Pipe/hose line	999	Next
19A	1K1721480B	Pipe/hose line	999	Next
19B	1K2721465BQ	Pipe/hose line	999	Next
20	1J0721468C	Breather assy	999	Next
20	1K0721468C	Breather assy	999	Next
21	1K0721491B	Clip	999	Next
21	4D0201278Q	Clip	999	Next
21	1K0721491	Clip	999	Next
22	N10240003	Hex collared bolt M8X32	999	Next
23	1K0721261K	Slave cylinder	999	Next
23	1K0721261N	Slave cylinder	999	Next
23	1K0721261L	Slave cylinder	999	Next
23	1K0721261N	Slave cylinder	999	Next
23	1K0721261Q	Slave cylinder	999	Next
23	5Q0721261	Slave cylinder	999	Next
23	6Q0721261F	Slave cylinder	999	Next
24	1K0721487D	Bracket	999	Next
24	1K0721487C	Bracket	999	Next
25	1K0721357A	Support	999	Next
26	N10331401	Bracket 6X6,5	999	Next
27	1K0721741	O-ring	999	Next
27	1K0798741	Gasket set	999	Next
28	1K0721741	O-ring	999	Next
28	1K0798741	Gasket set	999	Next
29	N10318302	Hex collared bolt M8X70X41	999	Next
30	1K2721465BL	Pipe/hose line	999	Next
31	1K2721465BS	Pipe/hose line	999	Next
32	G00045002	Grease 90G	999	Next
34	1K2721615C	Heat insulation use if required: N 903 350 05	999	Next
-	N90335005	Clamping washer 5X30	999	Next
36	5N0721794	Damping clutch pedal	999	Next
37	N10726401	Clamping washer B-6X20	999	Next

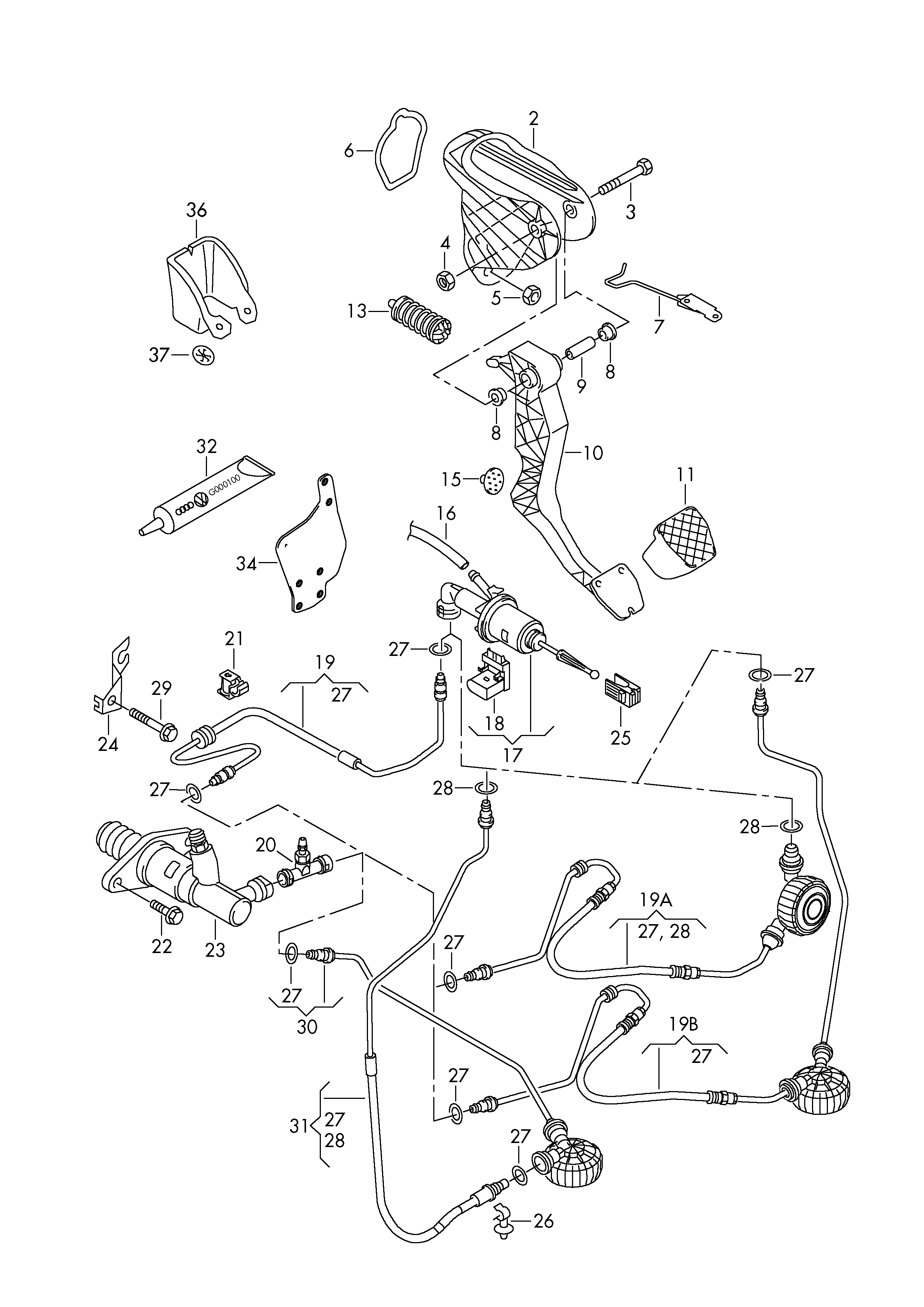

Scheme Clutch pedal mechanism Volkswagen Golf Plus 2012-2014 EUR
