Charge air cooler 2.0 ltr. petrol eng.+, CCZB Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3AA145805C	Charge air cooler	999	Next
1	5N0145834N	Pressure hose	999	Next
1	N 10735801	Spring band clamp 55-75X12	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	1K0145770AH	Air pipe	999	Next
1	038906051D	Pressure sensor	999	Next
1	N 90905903	Hex socket head collared bolt TP5X16-Q	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
1	867129669	Grommet	999	Next
1	1K0145838AG	Pressure hose throttle valve adapter	999	Next
1	N 10735201	Spring band clamp 60X80X12	999	Next
1	5N0145832Q	Pressure hose	999	Next
1	5N0145832T	Pressure hose	999	Next
1	N 10735101	Spring band clamp 55X75X12	999	Next
1	3C0145117F	O-ring 57,85MM	999	Next
1	1K0145840R	Air pipe	999	Next
1	06J145961	Bracket charge air tube	999	Next
1	1K0145769J	Retaining clip	999	Next
1	1K0145828F	Pressure hose (before turbocharger)	999	Next
1	1K0145828AC	Pressure hose (before turbocharger)	999	Next
1	3C0145117D	O-ring 53,95 MM	999	Next
1	1K0145769H	Retaining clip SCS48	999	Next
1	1K0121367F	Bush	999	Next
1	1K0121367P	Bracket	999	Next
1	1K0121367G	Bracket	999	Next
1	N 90808201	Hexagon socket head panel bolt 6X18,5	999	Next
1		Seal	999	Next
1		Seal	999	Next

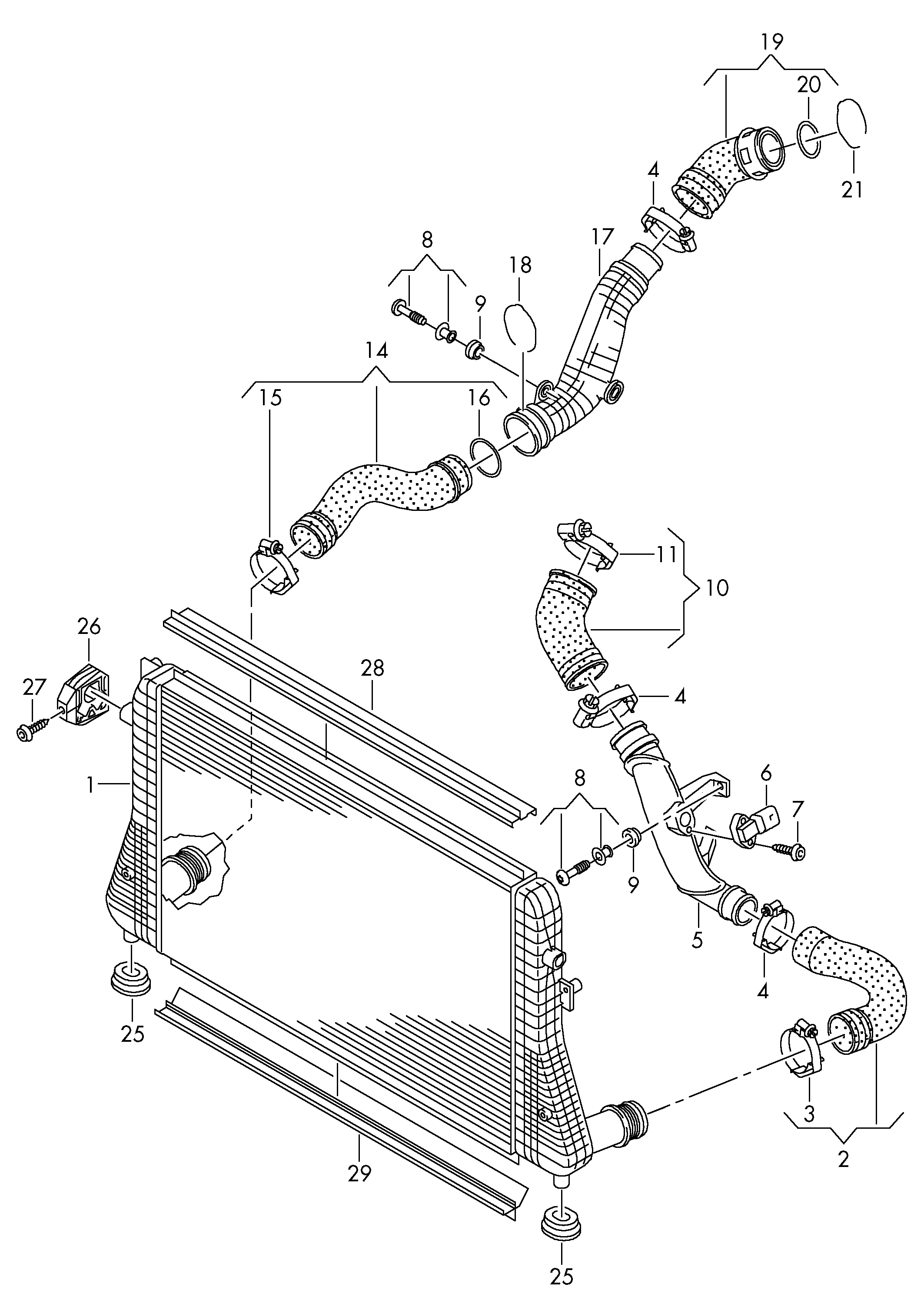

Scheme Charge air cooler 2.0 ltr. petrol eng.+, CCZB Volkswagen Tiguan 2010-2017 EUR
