Charge air cooler, 2.0 ltr. petrol eng.+, CAWB, CCTA, CBFA, CCZA, before 08.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0145805R	Charge air cooler	999	Next
1A	1J0145769H	Retaining clip for charge air cooler D=70MM	999	Next
3A	3C0145117F	O-ring 57,85MM	999	Next
3B	N10518901	Clamp 5070X12	999	Next
4	3C0145834K	Pressure hose, before 30.04.2009	999	Next
4	1K0145834AM	Pressure hose, D 01.05.2009 and after	999	Next
5A	N10518901	Clamp 5070X12	999	Next
6	1K0145770AH	Air pipe	999	Next
6	1K0145770N	Air pipe	999	Next
7	1K0145838M	Pressure hose, before 30.11.2008	999	Next
7	1K0145838AG	Pressure hose throttle valve adapter	999	Next
8	3C0145117H	O-ring 61,90MM	999	Next
8A	3C0145117H	O-ring 61,90MM	999	Next
9	3C0145832Q	Connecting pipe	999	Next
10	1K0145769J	Retaining clip	999	Next
11	1K0145840R	Air pipe	999	Next
-	06J145961	Bracket charge air tube	999	Next
12	3C0145117D	O-ring 53,95 MM	999	Next
12A	N10518901	Clamp 5070X12	999	Next
12B	N10544401	Clamp 6080X12	999	Next
13	1K0145828F	Pressure hose exhaust gas turbocharger	999	Next
13	1K0145828AC	Pressure hose exhaust gas turbocharger	999	Next
15	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
15A	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
15B		Spacer sleeve with cylinder collar bolt not for this model	999	Next
16	867129669	Grommet	999	Next
16A	867129669	Grommet	999	Next
17	N90905903	Hex socket head collared bolt TP5X16-Q	999	Next
18	038906051D	Pressure sensor	999	Next
19		Hexagon socket head bolt, self-locking not for this model M6X25	999	Next
19A		Hexagon socket head bolt, self-locking not for this model M6X25	999	Next
21		Seal	999	Next
22		Seal	999	Next
25	N90817003	Hexagon socket head panel bolt 6X17	999	Next

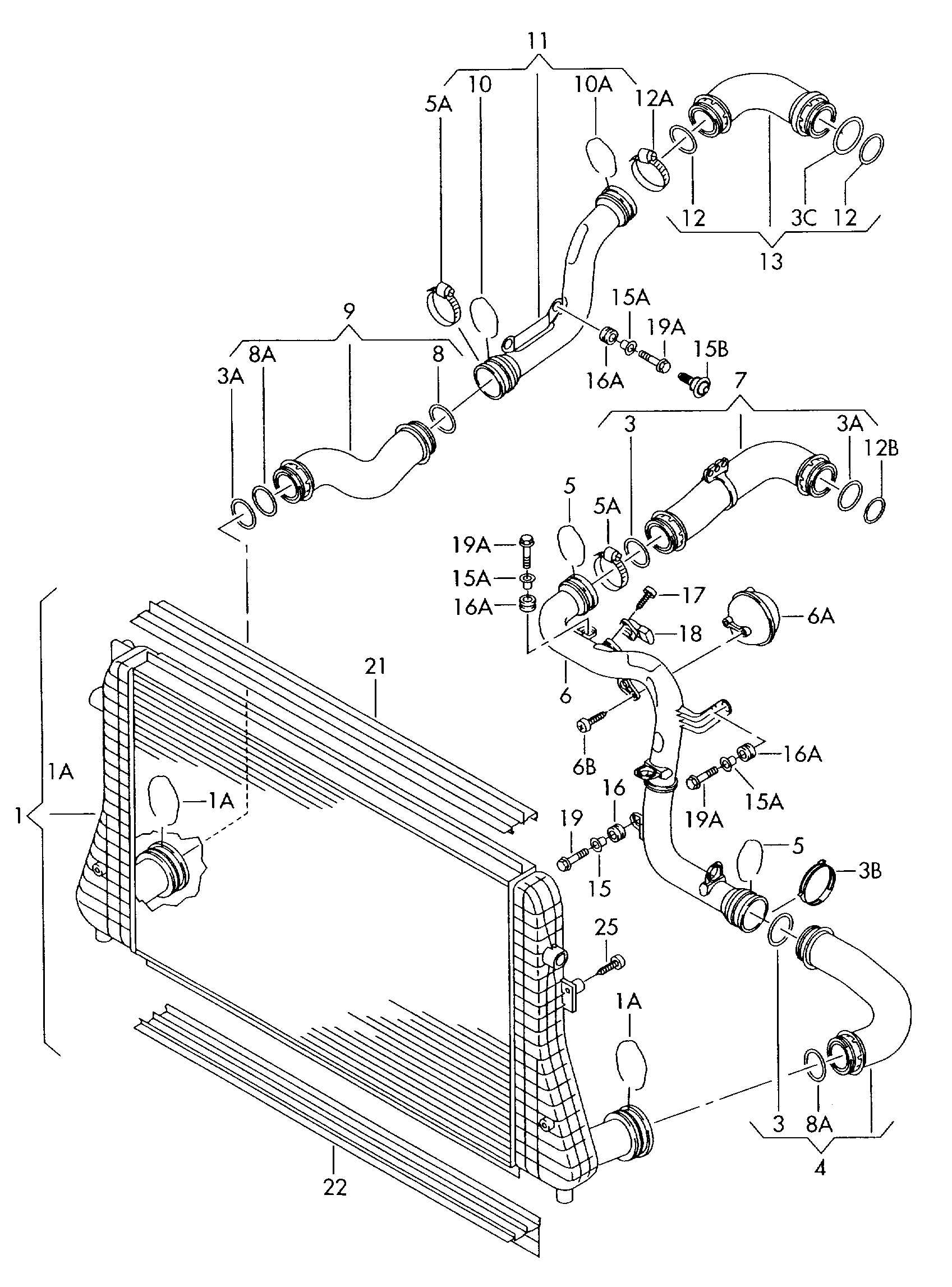

Scheme Charge air cooler, 2.0 ltr. petrol eng.+, CAWB, CCTA, CBFA, CCZA, before 08.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR
