Charge air cooler 2.0 ltr. petrol eng.+, CAWA, CAWB, CCTA, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0145805R	Charge air cooler	999	Next
1	1K0145769D	Retaining clip SCC56	999	Next
1		Seal	999	Next
1		Seal	999	Next
1	5N0145834J	Pressure hose	999	Next
1	3C0145117H	O-ring 61,90MM	999	Next
1	1K0145770AH	Air pipe	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	1K0145838AG	Pressure hose throttle valve adapter	999	Next
1	N 10544401	Clamp 60-80X12	999	Next
1	038906051D	Pressure sensor	999	Next
1	N 90905903	Hex socket head collared bolt TP5X16-Q	999	Next
1	867129669	Grommet	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
1	5N0145832D	Connecting pipe	999	Next
1	5N0145832S	Connecting pipe	999	Next
1	3C0145117H	O-ring 61,90MM	999	Next
1	3C0145117F	O-ring 57,85MM	999	Next
1	1K0145840R	Air pipe	999	Next
1	06J145961	Bracket charge air tube	999	Next
1	1K0145769J	Retaining clip	999	Next
1	1K0145828F	Pressure hose (before turbocharger)	999	Next
1	1K0145828AC	Pressure hose (before turbocharger)	999	Next
1	3C0145117D	O-ring 53,95MM	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	867129669	Grommet	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next

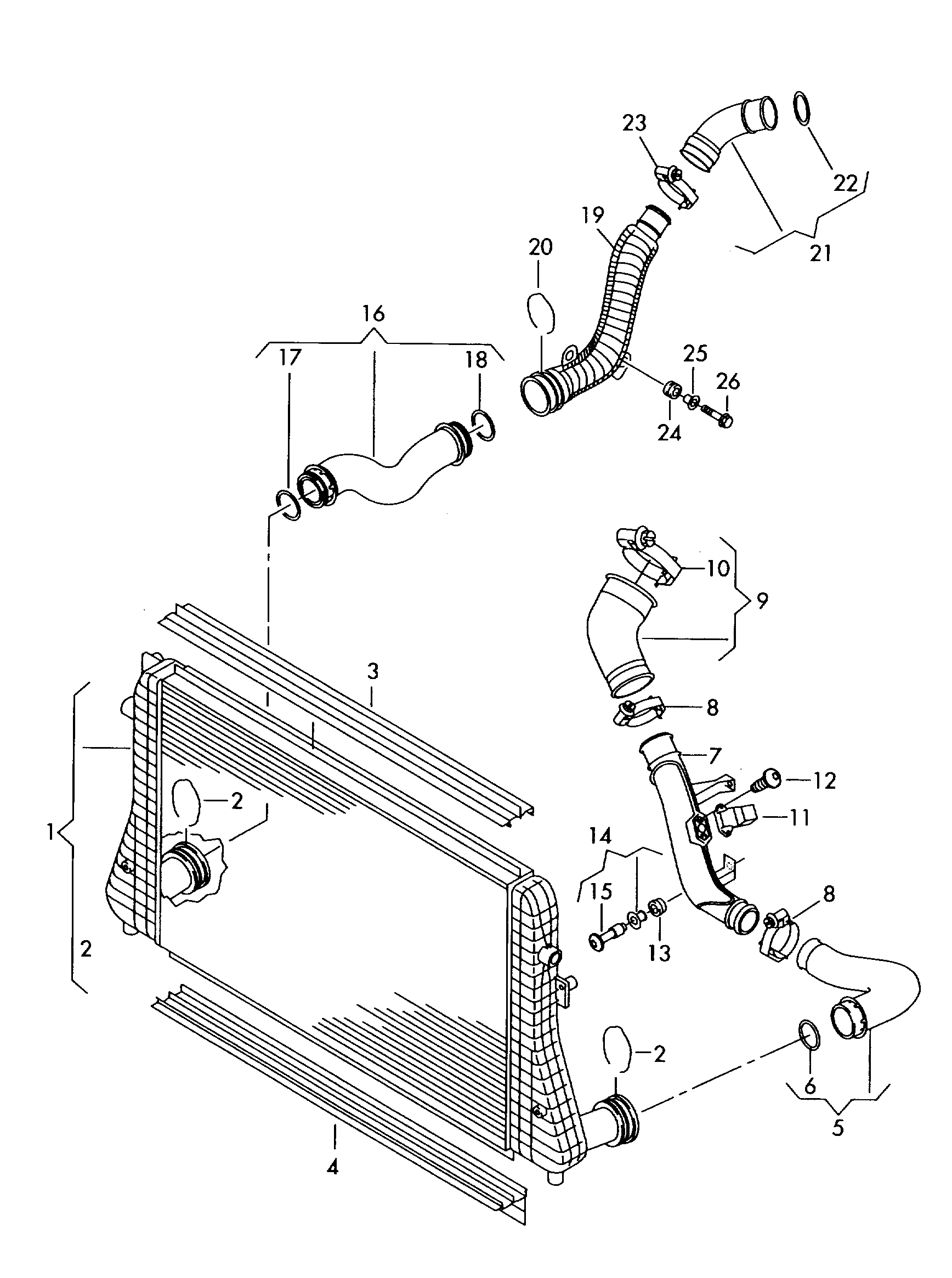

Scheme Charge air cooler 2.0 ltr. petrol eng.+, CAWA, CAWB, CCTA, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR
