Charge air cooler 2.0 ltr. diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0145803BM	Charge air cooler	999	Next
1	1K0145803CA	Charge air cooler	999	Next
2	1K0145832AA	Connecting pipe	999	Next
2	1K0145832AC	Pressure hose	999	Next
3	N10735801	Spring band clamp 55-75X12	999	Next
4	N10619801	Clamp 45-65X12	999	Next
5	1K0145840AC	Air pipe	999	Next
5	5N0145840G	Air pipe	999	Next
6	N10518801	Clamp 40-60X12	999	Next
7	1K0145828T	Pressure hose exhaust gas turbocharger	999	Next
7	5N0145828E	Pressure hose	999	Next
8	N10734801	Clamp 40-60X12	999	Next
9	N10619901	Clamp 55-75X12	999	Next
10	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
11	867129669	Grommet	999	Next
12	1K0145834AP	Pressure hose	999	Next
14	N10518901	Clamp 50-70X12	999	Next
15	1K0145770AE	Air pipe	999	Next
17	1K0145838AH	Pressure hose throttle valve adapter	999	Next
18	N10518901	Clamp 50-70X12	999	Next
20	03G906051E	Pressure sensor	999	Next
21	N10507201	Fillister hd. bolt	999	Next
22	1K0121345E	Seal for charge air cooler shorten if necessary	999	Next
23	1K0121345D	Seal for charge air cooler shorten if necessary	999	Next
24	1K0121367F	Bush	999	Next
25	1K0121367P	Bracket	999	Next
26	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next

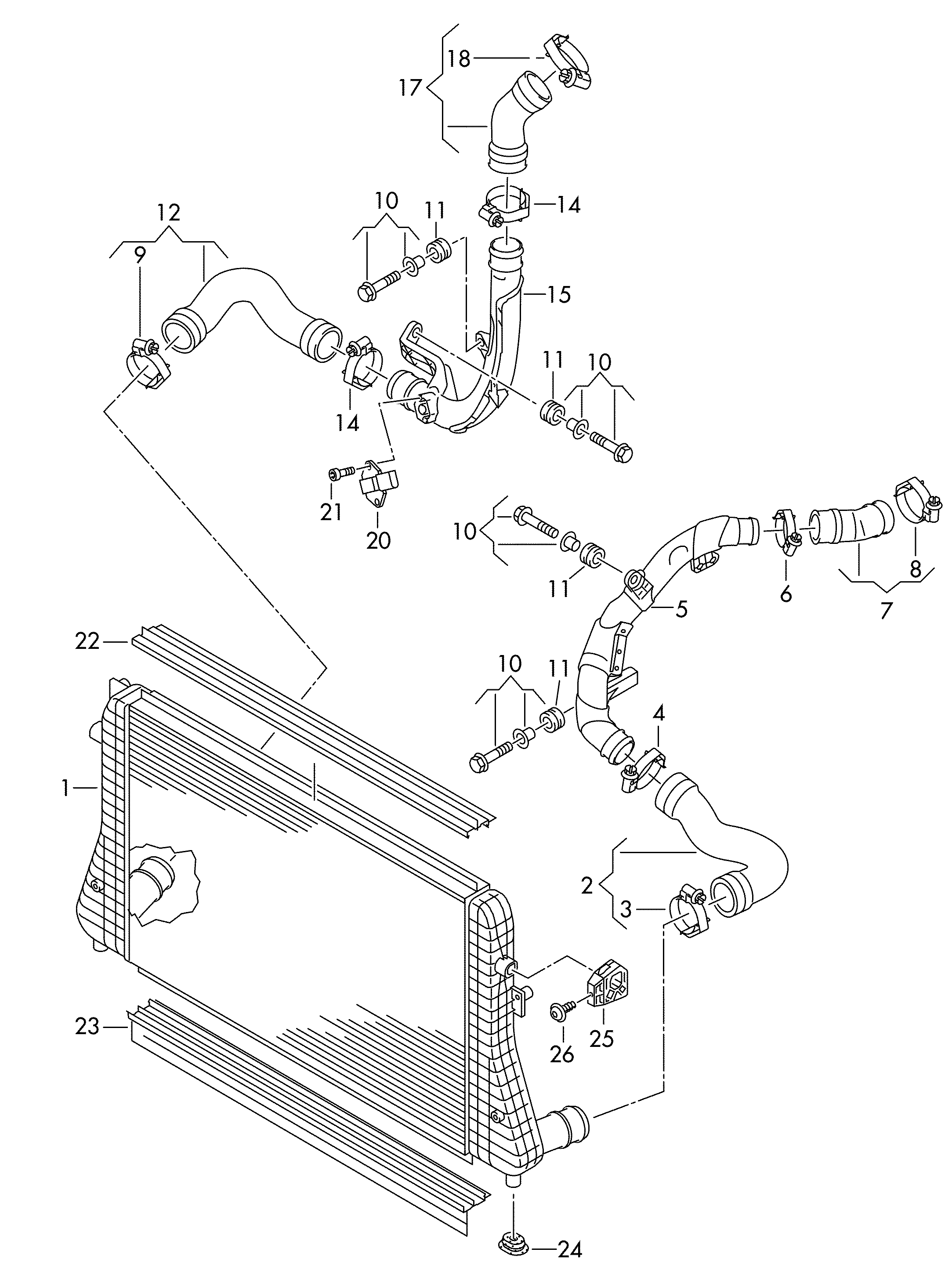

Scheme Charge air cooler 2.0 ltr. diesel eng.+, CFHB, CFHC, CLCA Volkswagen Golf Plus 2012-2014 EUR
