Charge air cooler 2.0 ltr. diesel eng.+, CFFA, CFFB, CFFD, CLJA, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0145805AN	Charge air cooler	999	Next
1	3C0145805AM	Charge air cooler	999	Next
1	5N0145832K	Pressure hose	999	Next
1	N 10735801	Spring band clamp 55-75X12	999	Next
1	N 10619801	Clamp 45-65X12	999	Next
1	1K0145840AC	Air pipe	999	Next
1	N 10518801	Clamp 40-60X12	999	Next
1	1K0145828T	Pressure hose exhaust gas turbocharger	999	Next
1	N 10734801	Clamp 40-60X12	999	Next
1	N 10619901	Clamp 55-75X12	999	Next
1	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
1	867129669	Grommet	999	Next
1	5N0145834G	Pressure hose	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	1K0145770AE	Air pipe	999	Next
1	1K0145838AH	Pressure hose throttle valve adapter	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	03G906051E	Pressure sensor	999	Next
1	N 10507201	Fillister hd. bolt 5X20	999	Next
1		Seal	999	Next
1		Seal	999	Next
1	1K0121367F	Bush	999	Next
1	1K0121367P	Bracket	999	Next
1	1K0121367G	Bracket	999	Next
1	N 90808201	Hexagon socket head panel bolt 6X18,5	999	Next

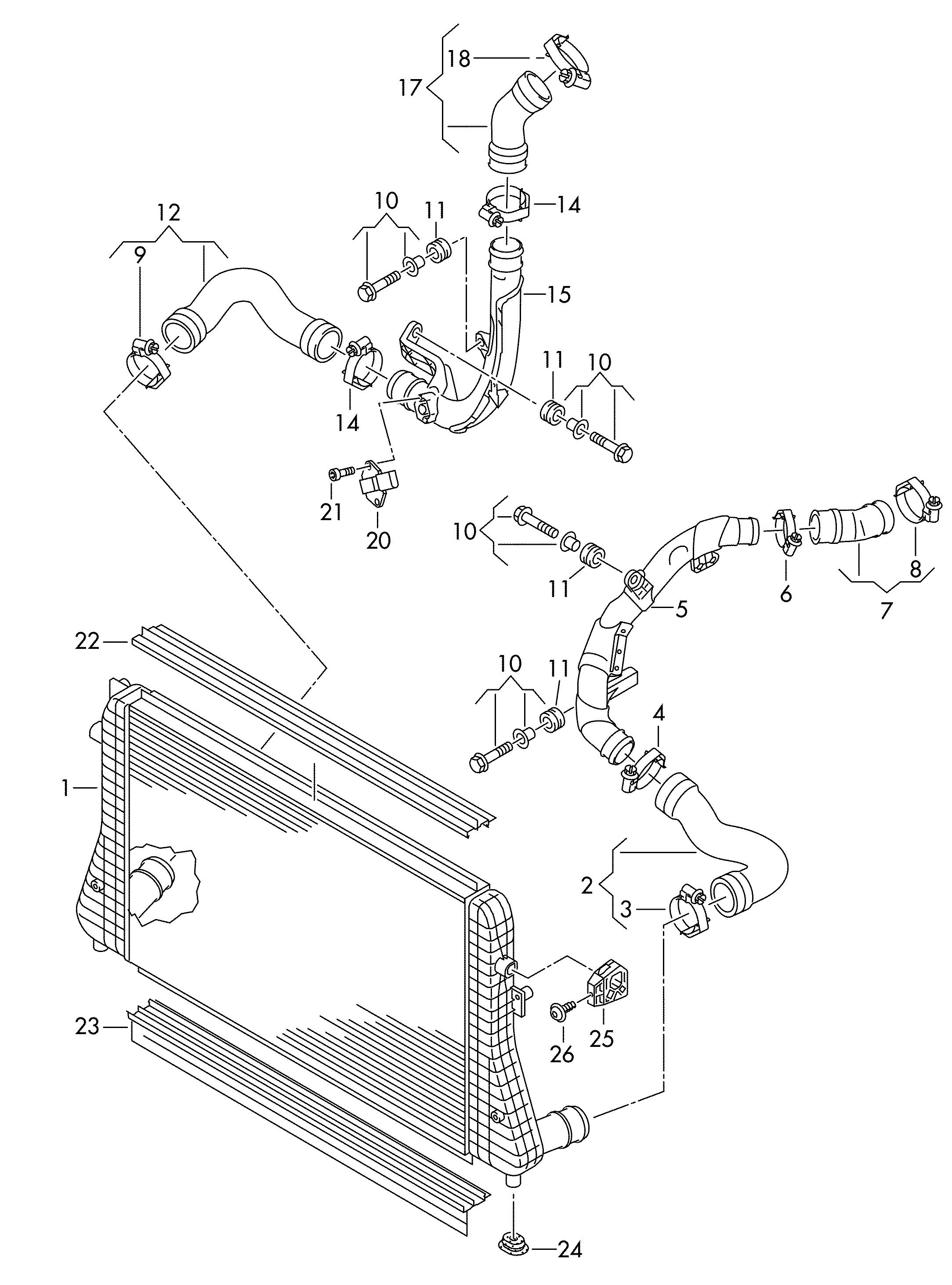

Scheme Charge air cooler 2.0 ltr. diesel eng.+, CFFA, CFFB, CFFD, CLJA, CFGB, CFGC Volkswagen Tiguan 2010-2017 EUR
