Charge air cooler, 1.8ltr. petrol eng.+, CDAB, CDAA, D 09.11.2010 and after Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0145805AK	Charge air cooler	999	Next
2	1K0145834AJ	Pressure hose	999	Next
3	N10735801	Spring band clamp 5575X12	999	Next
4	N10518901	Clamp 5070X12	999	Next
5	1K0145770AH	Air pipe	999	Next
6	038906051D	Pressure sensor	999	Next
7	N90739704	Panel screw 5X22	999	Next
8	3C0145830	Spacer sleeve with cylinder collar bolt	999	Next
9	867129669	Grommet	999	Next
10	1K0145838AG	Pressure hose throttle valve adapter	999	Next
11	N10735201	Spring band clamp 60X80X12	999	Next
14	3C0145832R	Pressure hose	999	Next
15	N10735101	Spring band clamp 55X75X12	999	Next
16	3C0145117F	O-ring 57,85MM	999	Next
17	1K0145840R	Air pipe	999	Next
-	06J145961	Bracket charge air tube	999	Next
18	1K0145769J	Retaining clip	999	Next
19	1K0145828F	Pressure hose exhaust gas turbocharger	999	Next
19	1K0145828AC	Pressure hose exhaust gas turbocharger	999	Next
20	3C0145117D	O-ring 53,95 MM	999	Next
21	1K0145769H	Retaining clip SCS48	999	Next
25	1K0121367F	Bush	999	Next
26	1K0121367G	Bracket	999	Next
27	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next
28	3C0121345AP	Seal for charge air cooler for vehicle use in moderate climates	999	Next
29	3C0121345AP	Seal for charge air cooler for vehicle use in moderate climates	999	Next
29	3C0121345AN	Seal for charge air cooler for vehicle use in warm climates	999	Next

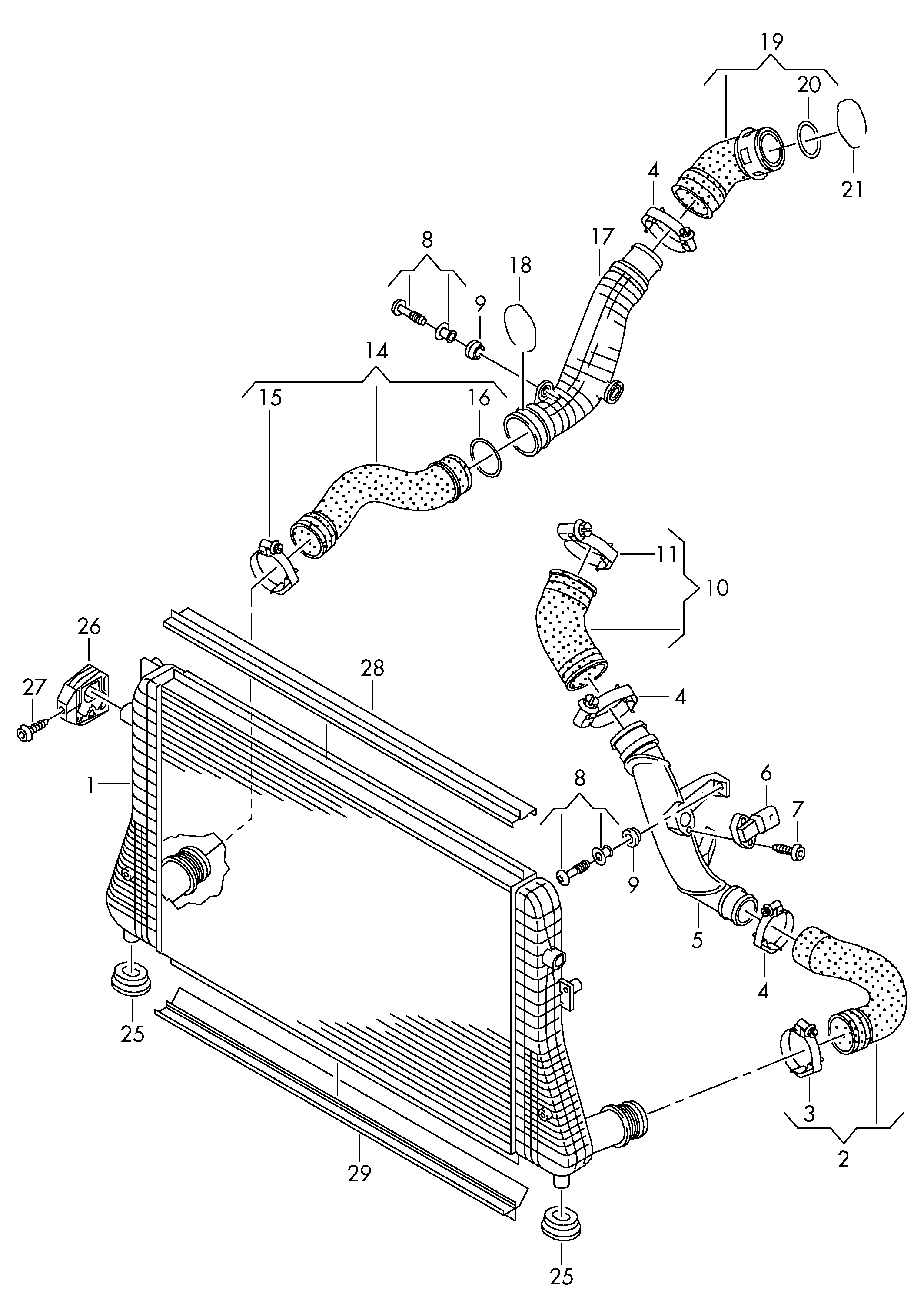

Scheme Charge air cooler, 1.8ltr. petrol eng.+, CDAB, CDAA, D 09.11.2010 and after Volkswagen Passat CC Coupe 2009-2012 EUR
