Charge air cooler, 1.4ltr. petrol eng.+, CKMA+, PR-0Y1, 0Y4, 0Y5, 0Y7, D 04.10.2011 and after Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0145805AK	Charge air cooler	999	Next
2	1K0145832AK	Pressure hose	999	Next
3	N10619901	Clamp 5575X12	999	Next
4	1K0145840K	Pressure pipe	999	Next
5	N10518901	Clamp 5070X12	999	Next
6	1K0145828C	Pressure hose exhaust gas turbocharger	999	Next
7	N10518801	Clamp 4060X12	999	Next
8	867129669	Grommet	999	Next
9	1K0129734B	Bush	999	Next
10	N90993601	Hexagon socket head bolt, self-locking M6X25	999	Next
11	1K0145812B	Retaining bar	999	Next
12	3C0145834Q	Pressure hose	999	Next
14	N10619901	Clamp 5575X12	999	Next
15	3C0145117D	O-ring 53,95 MM	999	Next
16	1K0145769H	Retaining clip SCS48	999	Next
17	3AA145770	Air pipe	999	Next
18	03G906051E	Pressure sensor	999	Next
19	N90905903	Hex socket head collared bolt 5X16	999	Next
20	1K0145961B	Bracket	999	Next
21	N10335202	Oval hexagon socket head bolt M6X12	999	Next
22	1K0145838L	Pressure hose throttle valve adapter	999	Next
23	N10518901	Clamp 5070X12	999	Next
24	N10544401	Clamp 6080X12	999	Next
25	1K0121367F	Bush	999	Next
26	1K0121367G	Bracket	999	Next
27	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next
28	3C0121345AN	Seal	999	Next
29	3C0121345AH	Seal	999	Next
30	03C199207A	Support	999	Next
31	N91026802	Socket head bolt with inner multipoint head M8X20	999	Next

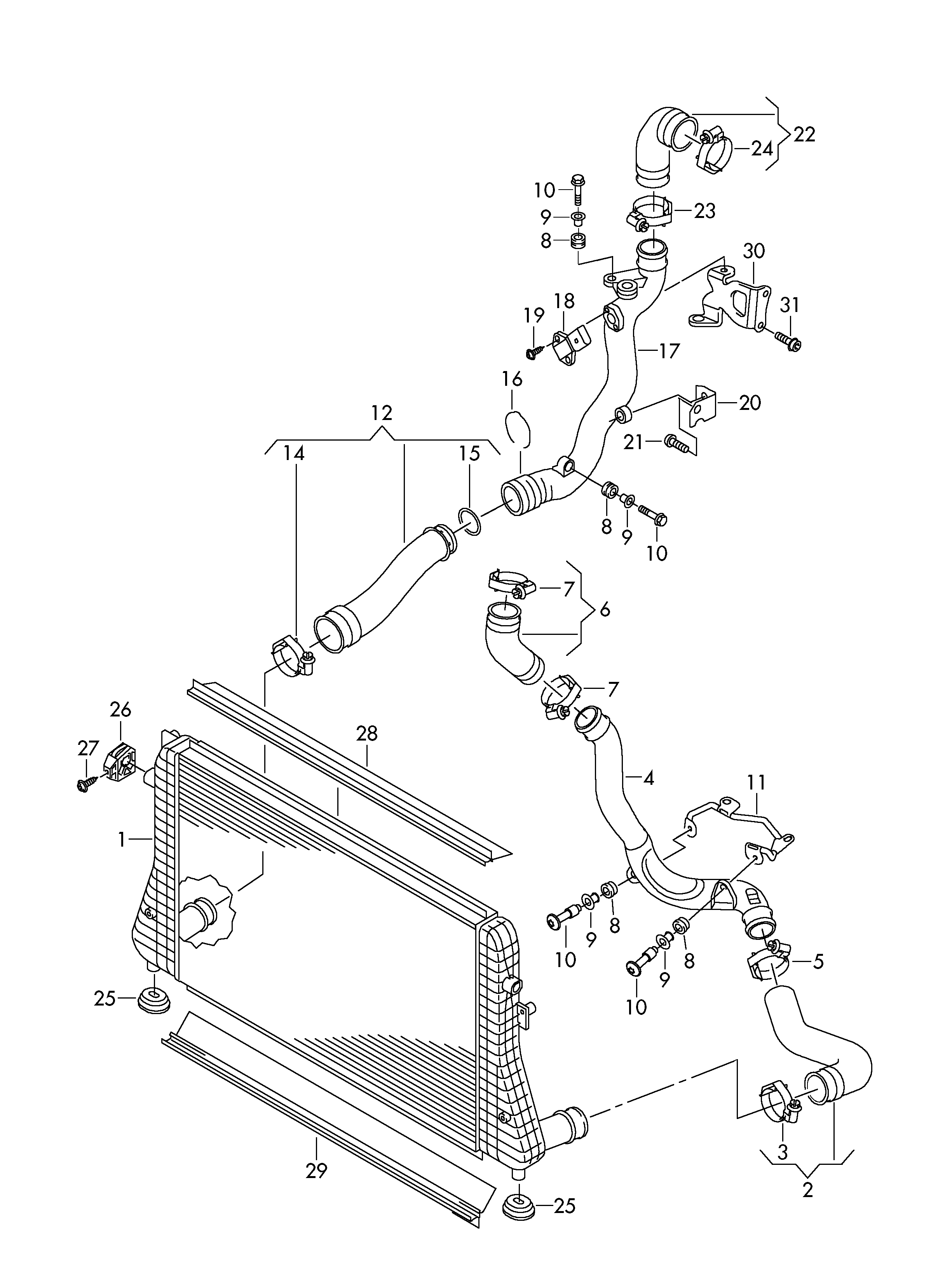

Scheme Charge air cooler, 1.4ltr. petrol eng.+, CKMA+, PR-0Y1, 0Y4, 0Y5, 0Y7, D 04.10.2011 and after Volkswagen Passat CC Coupe 2009-2012 EUR
