Charge air cooler 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0145803T	Charge air cooler	999	Next
1A	1K0145769D	Retaining clip for charge air cooler SCC56	999	Next
3A	N10518801	Clamp 40-60X12	999	Next
3B	N10518901	Clamp 50-70X12	999	Next
3C	N10544401	Clamp 60-80X12	999	Next
4	1K0145832F	Pressure hose	999	Next
5A	N10518801	Clamp 40-60X12	999	Next
6	1T0145840	Charge air tube	999	Next
7	1K0145828C	Pressure hose exhaust gas turbocharger	999	Next
8	3C0145117D	O-ring 53,95 MM	999	Next
8A	3C0145117H	O-ring 61,90MM	999	Next
9	1K0145834BD	Pressure hose	999	Next
9	1K0145834AN	Pressure hose	999	Next
10	1K0145769H	Retaining clip SCS48	999	Next
11	1K0145770R	Air pipe	999	Next
11	1K0145770AK	Air pipe	999	Next
12A	N10518901	Clamp 50-70X12	999	Next
13	1K0145838L	Pressure hose throttle valve adapter	999	Next
14	1K0145961B	Bracket air pipe	999	Next
14	03C199207A	Support	999	Next
14A	N10335202	Oval hexagon socket head bolt M6X12	999	Next
15A	1K0129734B	Bush	999	Next
16A	867129669	Grommet	999	Next
17	N90905903	Hex socket head collared bolt TP5X16-Q	999	Next
18	03G906051E	Pressure sensor	999	Next
19	N91108301	Socket head bolt with inner multipoint head (kombi) M8X20	999	Next
19A	N90993601	Hexagon socket head bolt, self-locking M6X25	999	Next
20	1K0145812B	Retaining bar	999	Next
21	1K0121345E	Seal for charge air cooler shorten if necessary	999	Next
22	1K0121345D	Seal for charge air cooler shorten if necessary	999	Next
33	1K0121367P	Bracket	999	Next
34	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next

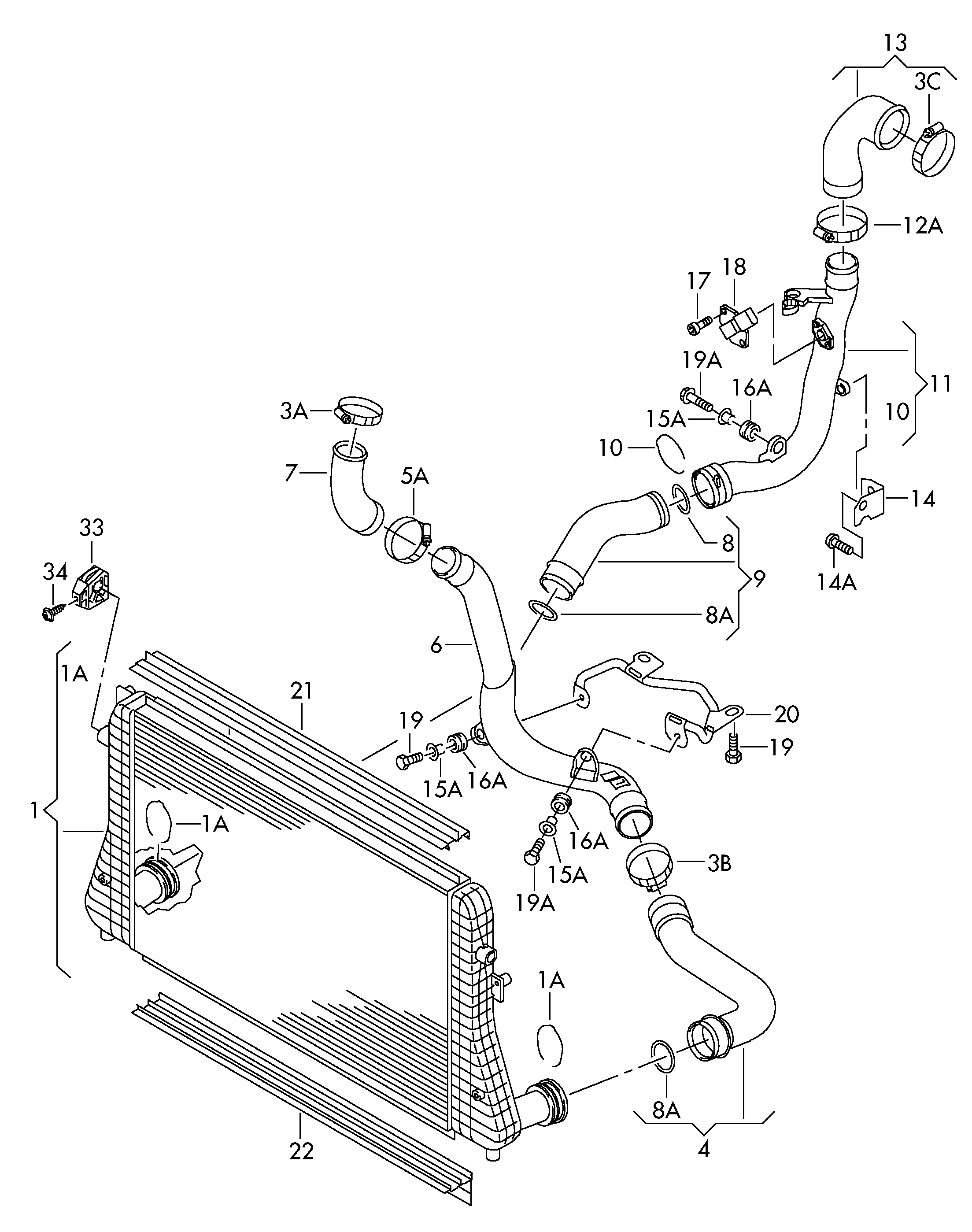

Scheme Charge air cooler 1.4ltr. petrol eng.+, CAVD, CNWA, CTHD, CTKA Volkswagen Golf Plus 2012-2014 EUR
