Charge air cooler 1.4ltr. petrol eng.+, CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0145805P	Charge air cooler	999	Next
1	1K0145769D	Retaining clip SCC56	999	Next
1	N 10518801	Clamp 40-60X12	999	Next
1	N 10544401	Clamp 60-80X12	999	Next
1	5N0145832E	Pressure hose	999	Next
1	1T0145840	Charge air tube	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	N 10518801	Clamp 40-60X12	999	Next
1	1K0145828C	Pressure hose (before turbocharger)	999	Next
1	3C0145117D	O-ring 53,95MM SCC48	999	Next
1	3C0145117H	O-ring 61,90MM	999	Next
1	5N0145834H	Pressure hose	999	Next
1	1K0145769H	Retaining clip SCS48	999	Next
1	1K0145770AK	Air pipe	999	Next
1	N 10518901	Clamp 50-70X12	999	Next
1	1K0145838L	Pressure hose throttle valve adapter	999	Next
1	1K0145961B	Bracket charge air tube	999	Next
1	N 10335202	Oval hexagon socket head bolt M6X12	999	Next
1	1K0129734B	Bush	999	Next
1	867129669	Grommet	999	Next
1	N 90288606	Fillister hd. bolt 5X17	999	Next
1	03G906051E	Pressure sensor	999	Next
1	N 91104901	Socket head bolt with inner multipoint head (kombi) M8X25	999	Next
1	N 90993601	Hexagon socket head bolt, self-locking M6X25	999	Next
1	1K0145812B	Retaining bar	999	Next
1		Seal	999	Next
1		Seal	999	Next
1	03C199207D	Support	999	Next
1	N 91026802	Socket head bolt with inner multipoint head M8X20	999	Next
1	1K0121367P	Bracket	999	Next
1	1K0121367G	Bracket	999	Next
1	1K0121367F	Bush	999	Next
1	N 90808201	Hexagon socket head panel bolt 6X18,5	999	Next

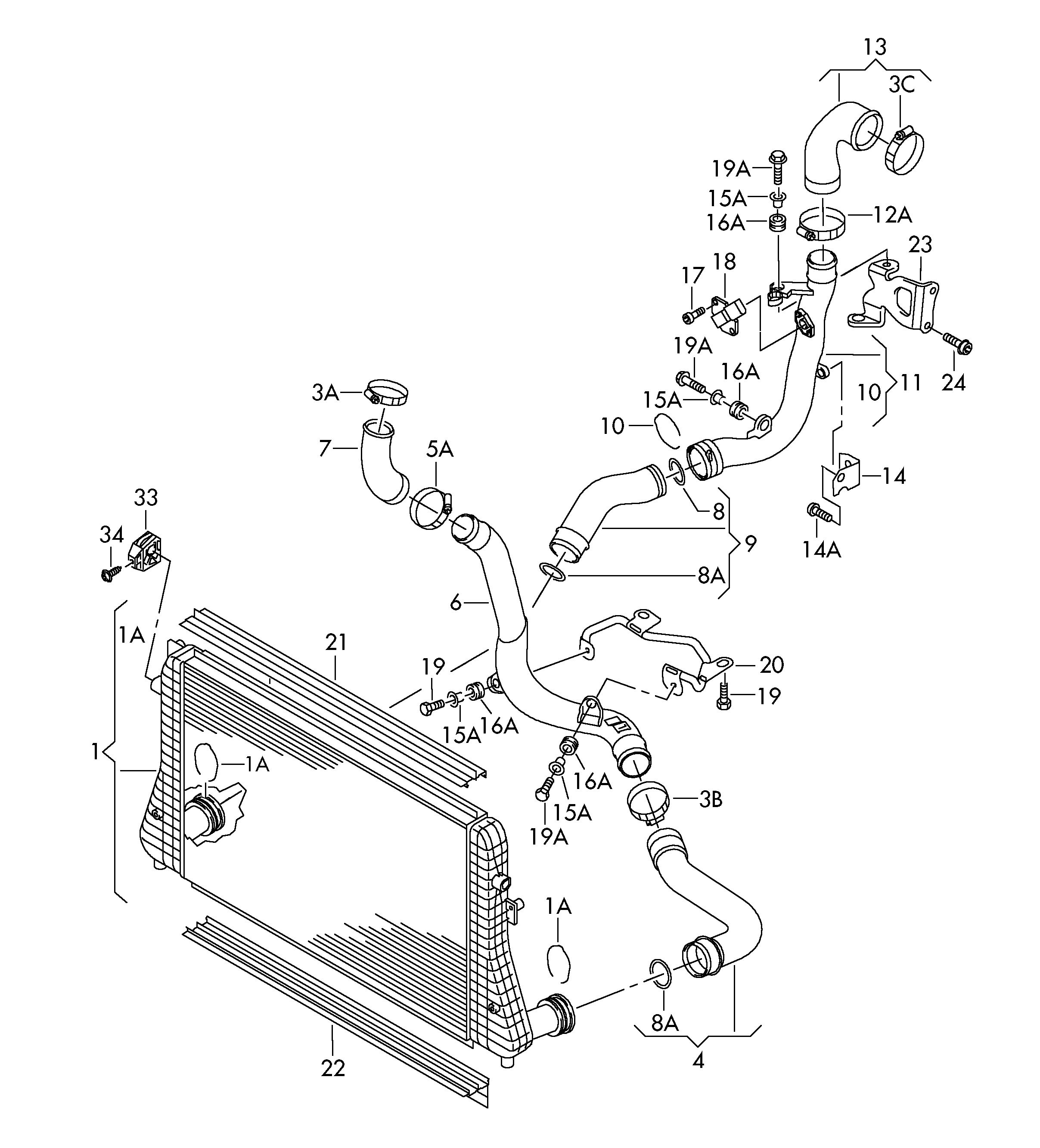

Scheme Charge air cooler 1.4ltr. petrol eng.+, CAVA, CAVD, CTHA, CTHD Volkswagen Tiguan 2010-2017 EUR
