Centre console rear Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0864089B	Carrier centre console	999	Next
2	N90698801	Speed nut 4,2X16X12	999	Next
3	N90918701	Hexagon socket head panel bolt 4X12	999	Next
8	3C0864254B	Air guide channel centre console	999	Next
9	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
12	3C0864369	Clip for vehicles with telephone or preparation for telephone	999	Next
13	3D0863453	Stop buffer	999	Next
14		Centre console not for this model use item: 15	999	Next
15	3C0864320F	Centre console with stow. comp for models with center armrest	999	Next
15	3C0864320F1QB	Centre console with stow. comp for models with center armrest black	999	Next
15	3C0864320G	Centre console with stow. comp for model with telephone hand set in the centre armrest	999	Next
15	3C0864320G1QB	Centre console with stow. comp for model with telephone hand set in the centre armrest black	999	Next
16	N10415903	Oval hexagon socket head bolt 4X12	999	Next
19	3C0864337	Cover cap	999	Next
20		Insert for stowage compartment not for this model use item: 15	999	Next
21		Insert for stowage compartment not for this model	999	Next
23	N90714303	Hex. nut with washer M6	999	Next
25		Aux-in socket	999	Next
26		Dummy cover	999	Next
30		Stowage compartment with cover not for this model	999	Next
31		Insert stowage compartment not for this model	999	Next
32	3C0863365A	Trim	999	Next
32	3C0863365A1QB	Trim black	999	Next
33	3C0863615	Retainer for trim	999	Next
35		Inverter	999	Next
36		Trim for socket	999	Next
37	N10526302	Self-tapping screw 4X14	999	Next
40	3C0864376F	Frame	999	Next
40	3C0864376F1QB	Frame black	999	Next
40	3AA864376	Frame	999	Next
40	3AA8643761QB	Frame black	999	Next
40	3C0864376G	Frame for vehicles with inverter	999	Next
40	3C0864376G1QB	Frame for vehicles with inverter black	999	Next
40	3AA864376A	Frame for vehicles with inverter	999	Next
40	3AA864376A1QB	Frame for vehicles with inverter black	999	Next
41	N10656702	Hexagon socket head panel bolt 4,2X16	999	Next
42		Vent	999	Next
45	3C0863289D	Trim	999	Next
45	3C0863289D1QB	Trim black	999	Next
45	3C0863289C	Trim for models with seat heating	999	Next
45	3C0863289C1QB	Trim for models with seat heating black	999	Next
46		Switch for seat heating	999	Next
47		Cigarette lighter	999	Next

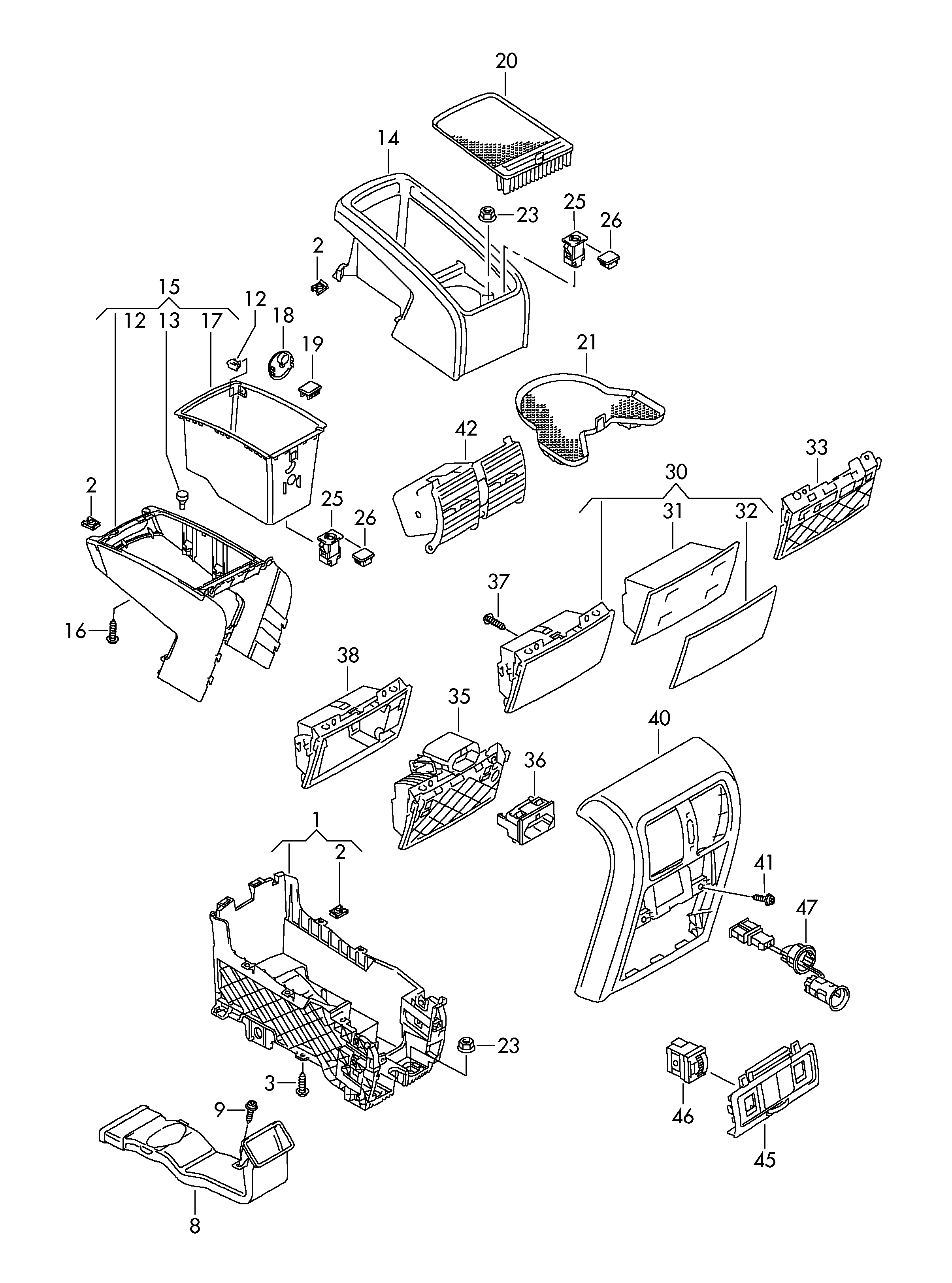

Scheme Centre console rear Volkswagen Passat CC Coupe 2009-2012 EUR
