Centre console front, before 07.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1863143A	Securing bracket	999	Next
1	3C2863143A	Securing bracket	999	Next
1	3C1863144A	Securing bracket	999	Next
2	3C0864253	Air guide channel, before 07.03.2010	999	Next
2	3C0864253A	Air guide channel	999	Next
3	N90714303	Hex. nut with washer M6	999	Next
4	WHT000733	Speed nut	999	Next
5	3C0863525	Securing bracket	999	Next
6	N90446502	Hexagon collar nut M6	999	Next
7		Speed nut not for this model	999	Next
8		Retaining bracket not for this model	999	Next
9	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
10	1K0864220	Damping for manual gearbox, before 05.04.2010	999	Next
10	1J0867809	Sound absorber (self-adhesive) for manual gearbox modify in workshop, D 06.04.2010 and after 500X490X15	999	Next
13	1T0833177A	Sealing strip 10X10X4000	999	Next
13	D373125A2	Fleece adhesive tape 0,5X25X10000	999	Next
14	G052141A2	Special lubricating paste 20G.	999	Next
14	G060172A3	Special lubricating paste 57G/30ML	999	Next
15	3C1863496	Filler piece for tunnel	999	Next
15	3C2863496	Filler piece for tunnel	999	Next
16	N0385491	Spreader rivet 8X12	999	Next
18		Insert for cupholder not for this model	999	Next
19		Insert for stowage compartment not for this model	999	Next
20		Mounting for drinks holder not for this model	999	Next
21		Stowage comp. with mounting not for this model	999	Next
22	3C0858329H	Drinks holder	999	Next
22	3C0858329HUBN	Drinks holder satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU,	999	Next
22	3C0858329HYMK	Drinks holder cornsilk beige/chrome silk -HM, XF, ZV	999	Next
23	3C0862531D	Drinks holder	999	Next
23	3C0862531D1QB	Drinks holder black -IW, NC, TL, ZU	999	Next
23	3C0862531DH67	Drinks holder corn silk beige -ND, ZV	999	Next
24	3C0857503	Cover for stowage compartment	999	Next
24	3C0857503UBN	Cover for stowage compartment satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU,	999	Next
24	3C0857503YMK	Cover for stowage compartment cornsilk beige/chrome silk -HM, XF, ZV	999	Next
25	N10415903	Oval hexagon socket head bolt 4X12	999	Next
26	3C0863328A	Insert for stowage compartment	999	Next
26	3C0863328A9B9	Insert for stowage compartment satin black	999	Next
27	3C0863330B	Insert for cupholder	999	Next
27	3C0863330B9B9	Insert for cupholder satin black -IW, NC, TL, ZU	999	Next
27	3C0863330B95T	Insert for cupholder corn silk beige -ND, ZV	999	Next
28	3C0863328D	Insert for stowage compartment	999	Next
28	3C0863328D9B9	Insert for stowage compartment satin black -IW, NC, TL, ZU	999	Next
28	3C0863328D95T	Insert for stowage compartment corn silk beige -ND, ZV	999	Next
28	3C0863416	Insert for stowage compartment	999	Next
28	3C08634169B9	Insert for stowage compartment satin black -IW, NC, TL, ZU	999	Next
28	3C086341695T	Insert for stowage compartment corn silk beige -ND, ZV	999	Next
30	3C1863241DD	Centre console	999	Next
30	3C1863241DDXSF	Centre console cornsilk beige/chrome silk -HM, ND, XF, ZV	999	Next
30	3C1863241DD	Centre console	999	Next
30	3C1863241DDVAL	Centre console satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU,	999	Next
30	3C1863243L	Centre console	999	Next
30	3C1863243LH67	Centre console corn silk beige -HM, ND, XF, ZV	999	Next
30	3C1863243L1QB	Centre console black -HL, IW, KX, NC, TL, VX, ZU	999	Next
30	3C2863241CC	Centre console	999	Next
30	3C2863241CCVAL	Centre console satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU,	999	Next
30	3C2863241CCXSF	Centre console corn silk beige -HM, ND, XF, ZV	999	Next
30	3C2863243H	Centre console	999	Next
30	3C2863243HH67	Centre console corn silk beige -HM, ND, XF, ZV	999	Next
30	3C2863243H1QB	Centre console black -HL, IW, KX, NC, TL, VX, ZU	999	Next
31	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
32	1K0867388A	Clip	999	Next
32	1K0867388	Clip	999	Next
33		Hexagon socket head bolt not for this model	999	Next
34	N90698801	Speed nut 4,2X16X12	999	Next
35	1T0857047A	Threaded plate	999	Next
36	3B0867190	Spring clip	999	Next
37	3C0863453B	Stop buffer	999	Next
38	3C0863192	Sleeve centre console	999	Next
40	3C1863045C	Side panel trim for centre console	999	Next
40	3C1863045C1QB	Side panel trim for centre console black	999	Next
40	3C2863045C	Side panel trim for centre console	999	Next
40	3C2863045C1QB	Side panel trim for centre console black	999	Next
40	3C1863046C	Side panel trim for centre console	999	Next
40	3C1863046C1QB	Side panel trim for centre console black	999	Next
40	3C2863046C	Side panel trim for centre console	999	Next
40	3C2863046C1QB	Side panel trim for centre console black	999	Next
41	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
42		Cover cap not for this model	999	Next
42	3C0863359A	Cover cap	999	Next
42	3C0863359A9B9	Cover cap satin black -HL, IW, KX, TL, VX, ZU,	999	Next
42	3C0863359A95T	Cover cap corn silk beige -HM, ND, XF, ZV	999	Next
43	N90746801	Clip 3,2X12,5X0,4	999	Next
50	3C0864263G	Trim for centre console	999	Next
50	3C0864263G3H5	Trim for centre console matt chrome	999	Next
50	3C0864263F	Trim for centre console for models with aluminium decorative inlay	999	Next
50	3C0864263F20V	Trim for centre console for models with aluminium decorative inlay brushed aluminium	999	Next
50	3C8863100	Trim for fresh air and heater controls	999	Next
50	3C88631003H5	Trim for fresh air and heater controls matt chrome	999	Next
50	3C8863100A	Trim for fresh air and heater controls for models with aluminium decorative inlay	999	Next
50	3C8863100A20V	Trim for fresh air and heater controls for models with aluminium decorative inlay brushed aluminium	999	Next

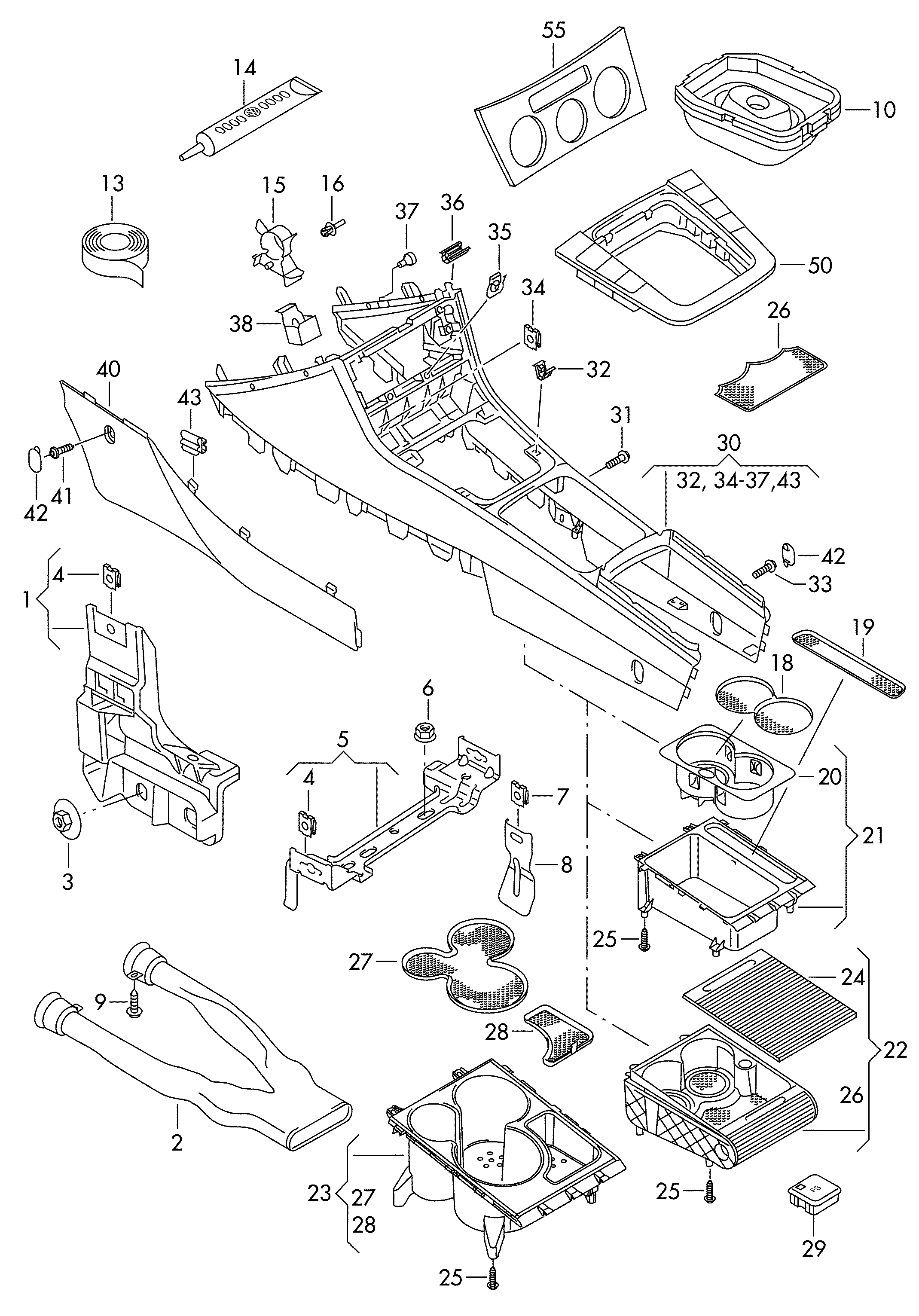

Scheme Centre console front, before 07.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR
