Centre console front, 08.11.2010 and after Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1863143A	Securing bracket	999	Next
1	3C2863143A	Securing bracket	999	Next
1	3C1863144A	Securing bracket	999	Next
3	N90714303	Hex. nut with washer M6	999	Next
4	WHT000733	Speed nut 4,2X24,5X21	999	Next
5	3C0863525	Securing bracket	999	Next
6	N90446502	Hexagon collar nut M6	999	Next
7	3C0864253A	Air guide channel	999	Next
9	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
10	1J0867809	Sound absorber (self-adhesive) for manual gearbox modify in workshop 500X490X15	999	Next
11	3C1863496	Filler piece for tunnel	999	Next
11	3C2863496	Filler piece for tunnel	999	Next
12	N0385491	Spreader rivet 8X12	999	Next
13	1T0833177A	Sealing strip 10X10X4000	999	Next
18		Insert for cupholder not for this model	999	Next
19		Insert for stowage compartment not for this model	999	Next
20		Push button not for this model	999	Next
20		Drinks holder not for this model	999	Next
22	3C0858329E	Drinks holder	999	Next
22	3C0858329EUBN	Drinks holder satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU,	999	Next
22	3C0858329EYMK	Drinks holder cornsilk beige/chrome silk -HM, XF, ZV	999	Next
22	3C0858329H	Drinks holder	999	Next
22	3C0858329HUBN	Drinks holder satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU	999	Next
22	3C0858329HYMK	Drinks holder cornsilk beige/chrome silk -HM, XF, ZV	999	Next
23	3C0862531D	Drinks holder	999	Next
23	3C0862531D1QB	Drinks holder black -IW, NC, TL, ZU	999	Next
23	3C0862531DH67	Drinks holder corn silk beige -ND, ZV	999	Next
24	3C0857503	Cover for stowage compartment	999	Next
24	3C0857503UBN	Cover for stowage compartment satin black/chrome matt silk -HL, IW, KX, TL, VX, ZU	999	Next
24	3C0857503YMK	Cover for stowage compartment cornsilk beige/chrome silk -HM, XF, ZV	999	Next
25	N10415903	Oval hexagon socket head bolt 4X12	999	Next
26	3C0863328A	Insert for stowage compartment	999	Next
26	3C0863328A9B9	Insert for stowage compartment satin black	999	Next
27	3C0863416	Insert for stowage compartment	999	Next
27	3C086341695T	Insert for stowage compartment corn silk beige -ND, ZV	999	Next
27	3C08634169B9	Insert for stowage compartment satin black -IW, NC, TL, ZU	999	Next
28	3C0863330B	Insert for cupholder	999	Next
28	3C0863330B95T	Insert for cupholder corn silk beige -ND, ZV	999	Next
28	3C0863330B9B9	Insert for cupholder satin black -IW, NC, TL, ZU	999	Next
29	3C0863328D	Insert for stowage compartment	999	Next
29	3C0863328D95T	Insert for stowage compartment corn silk beige -ND, ZV	999	Next
29	3C0863328D9B9	Insert for stowage compartment satin black -IW, NC, TL, ZU	999	Next
30	3AB863243	Centre console	999	Next
	3AB863243H67	Corn silk beige -HM, ND, XF, ZV	999	Next
	3AB8632431QB	Black -HL, IW, KX, NC, TL, VX, ZU	999	Next
30	3AC863243	Centre console	999	Next
	3AC863243H67	Corn silk beige -HM, ND, XF, ZV	999	Next
	3AC8632431QB	Black -HL, IW, KX, NC, TL, VX, ZU	999	Next
31		Damping rubber to manufacture from item: 13	999	Next
32		Damping sleeve included in position: 30	999	Next
33		Damping element included in position: 30	999	Next
34	N90698801	Speed nut 4,2X16X12	999	Next
35	1T0857047A	Threaded plate	999	Next
36	3B0867190	Spring clip	999	Next
37	3C0863453B	Stop buffer	999	Next
38	3C0863192	Sleeve centre console	999	Next
39		Bump stop buffer included in position: 30	999	Next
40	3C1863045C	Side panel trim for centre console	999	Next
40	3C1863045C1QB	Side panel trim for centre console black	999	Next
40	3C2863045C	Side panel trim for centre console	999	Next
40	3C2863045C1QB	Side panel trim for centre console black	999	Next
40	3C1863046C	Side panel trim for centre console	999	Next
40	3C1863046C1QB	Side panel trim for centre console black	999	Next
40	3C2863046C	Side panel trim for centre console	999	Next
40	3C2863046C1QB	Side panel trim for centre console black	999	Next
41	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
43	N90746801	Clip 3,2X12,5X0,4	999	Next
50	3AA863324	Trim for centre console	999	Next
50	3AA8633243H5	Trim for centre console matt chrome	999	Next
50	3AA863324B	Trim for centre console	999	Next
50	3AA863324B3H5	Trim for centre console matt chrome	999	Next
50	3AA863324A	Trim for centre console for models with aluminium decorative inlay	999	Next
50	3AA863324APD4	Trim for centre console for models with aluminium decorative inlay brushed aluminium	999	Next
50	3AA863324C	Trim for centre console for models with aluminium decorative inlay	999	Next
50	3AA863324CPD4	Trim for centre console for models with aluminium decorative inlay brushed aluminium	999	Next
51, 52		Control panel with push buttons	999	Next
55	3AA863100B	Trim for fresh air and heater controls	999	Next
55	3AA863100B3H5	Trim for fresh air and heater controls matt chrome	999	Next
55	3AA863082	Trim for fresh air and heater controls	999	Next
55	3AA8630823H5	Trim for fresh air and heater controls matt chrome	999	Next
55	3AA863100C	Trim for fresh air and heater controls for models with aluminium decorative inlay	999	Next
55	3AA863100CSOC	Trim for fresh air and heater controls for models with aluminium decorative inlay brushed aluminium	999	Next
55	3AA863082A	Trim for fresh air and heater controls for models with aluminium decorative inlay	999	Next
55	3AA863082ASOC	Trim for fresh air and heater controls for models with aluminium decorative inlay brushed aluminium	999	Next
56		Control lamp for deact- ivation of front passenger airbag	999	Next
57	6R0858154A	Clip, D 01.04.2011 and after	999	Next

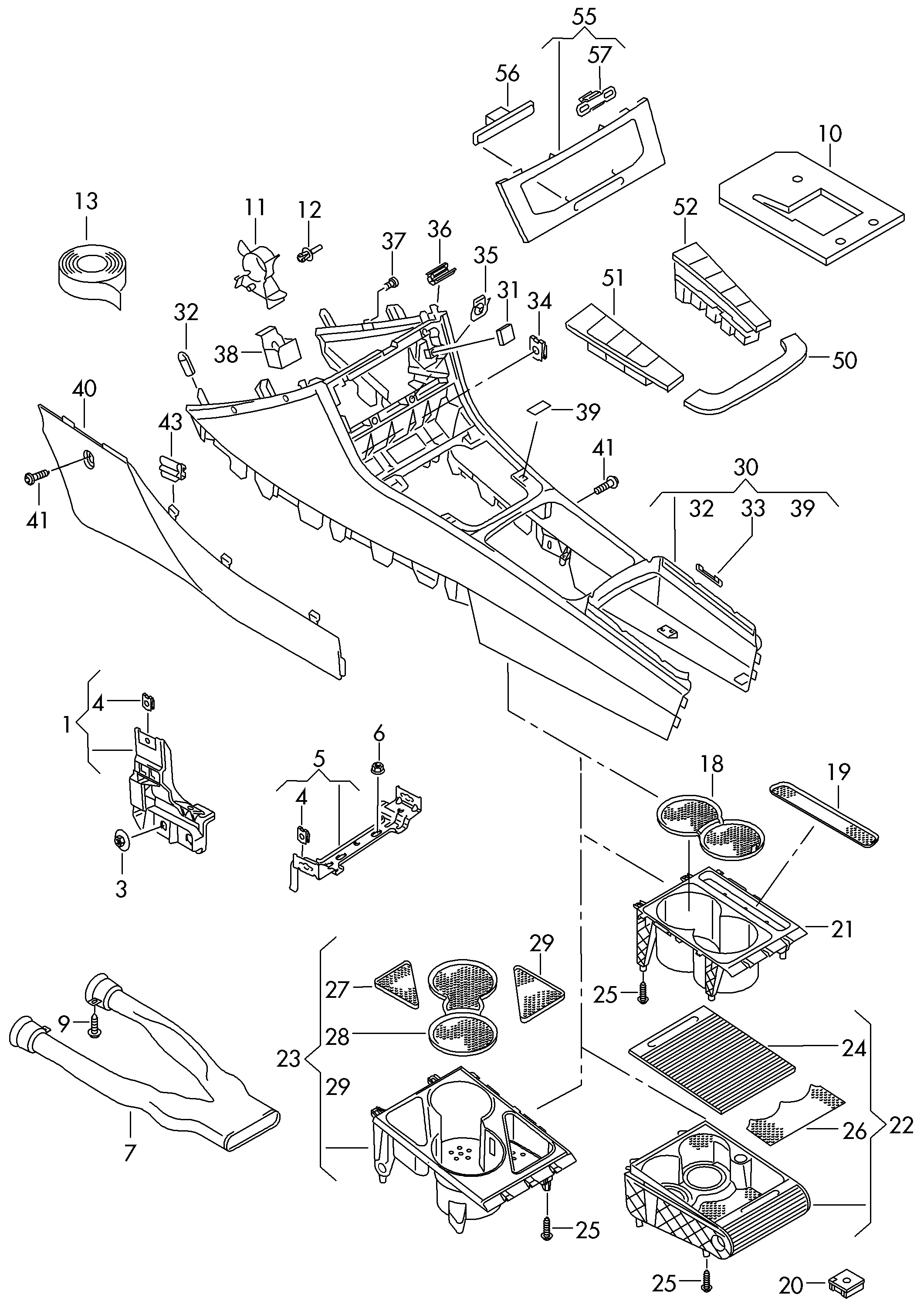

Scheme Centre console front, 08.11.2010 and after Volkswagen Passat CC Coupe 2009-2012 EUR
