Centre console, ashtray, middle armrest, front square back Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RG863531	Securing bracket	999	Next
2	N90347104	Collar nut M8	999	Next
4	6R0863532	Securing bracket	999	Next
5	6RF864255	Air guide channel	999	Next
10	6RG863243K	Centre console also use: 28	999	Next
10	6RG863243K82V	Centre console also use: 28 titan black	999	Next
11	1C0867388	Clip	999	Next
12	WHT000733	Speed nut ST4,2X24,5X21	999	Next
13	6RF862533B	Drinks holder	999	Next
13	6RF862533B82V	Drinks holder titan black	999	Next
14	4D0863437A	Velcro 35X22MM	999	Next
15	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
16	N90698801	Speed nut 4,2X16X12	999	Next
17	6R0858809A	Trim for centre console	999	Next
18		Socket	999	Next
20	6RG863680C	Centre console, upper part	999	Next
20	6RG863680C82V	Centre console, upper part titan black	999	Next
20	6RF863680C	Centre console, upper part	999	Next
20	6RF863680C82V	Centre console, upper part titan black	999	Next
21	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
22	N90698703	Speed nut 4,2X16X12	999	Next
23	6RU863739	Cover for handbrake aperture	999	Next
23	6RU86373982V	Cover for handbrake aperture titan black	999	Next
23	6RF863739A	Cover for handbrake aperture	999	Next
23	6RF863739A82V	Cover for handbrake aperture titan black	999	Next
25	6RG857961	Ashtray	999	Next
25	6RG85796182V	Ashtray titan black	999	Next
27	6RU858373A	Stowage compartment	999	Next
27	6RU858373A82V	Stowage compartment titan black	999	Next
27	6RF863319A	Centre console compartment	999	Next
27	6RF863319A82V	Centre console compartment titan black	999	Next
30		Vent	999	Next
32		Trim for air vent	999	Next
35	6RU858373A	Stowage compartment	999	Next
35	6RU858373A82V	Stowage compartment titan black	999	Next
35	6RF862531H	Drinks holder	999	Next
35	6RF862531HADO	Drinks holder titan black	999	Next
35	6RF862531H	Drinks holder	999	Next
35	6RF862531HADO	Drinks holder titan black	999	Next
37	N90986803	Hexagon socket head panel bolt 4,2X13	999	Next
37		Hexagon socket head panel bolt 4,2X13 middle armrest front	999	Next
40	6RF864273	Bracket for arm rest	999	Next
41	N10285504	Socket head bolt with inner hex round head M6X12	999	Next
43	6RF867173B	Armrest (upper part)	999	Next
43	6RF867173BXPA	Armrest (upper part) titan black	999	Next
44	6RF867174C	Armrest (lower part)	999	Next
44	6RF867174C82V	Armrest (lower part) titan black	999	Next
-	G052778A2	Lock cylinder grease spray service fluid -lubricant- 50ML	999	Next
45	N90698803	Speed nut 4,2X16X12	999	Next
46	6RF863301A	Insert for stowage compartment	999	Next
46	6RF863301A82V	Insert for stowage compartment titan black	999	Next
47	6RF864279B	Trim for armrest	999	Next
47	6RF864279B82V	Trim for armrest titan black	999	Next
48	N10261310	Hexagon collar nut M10	999	Next

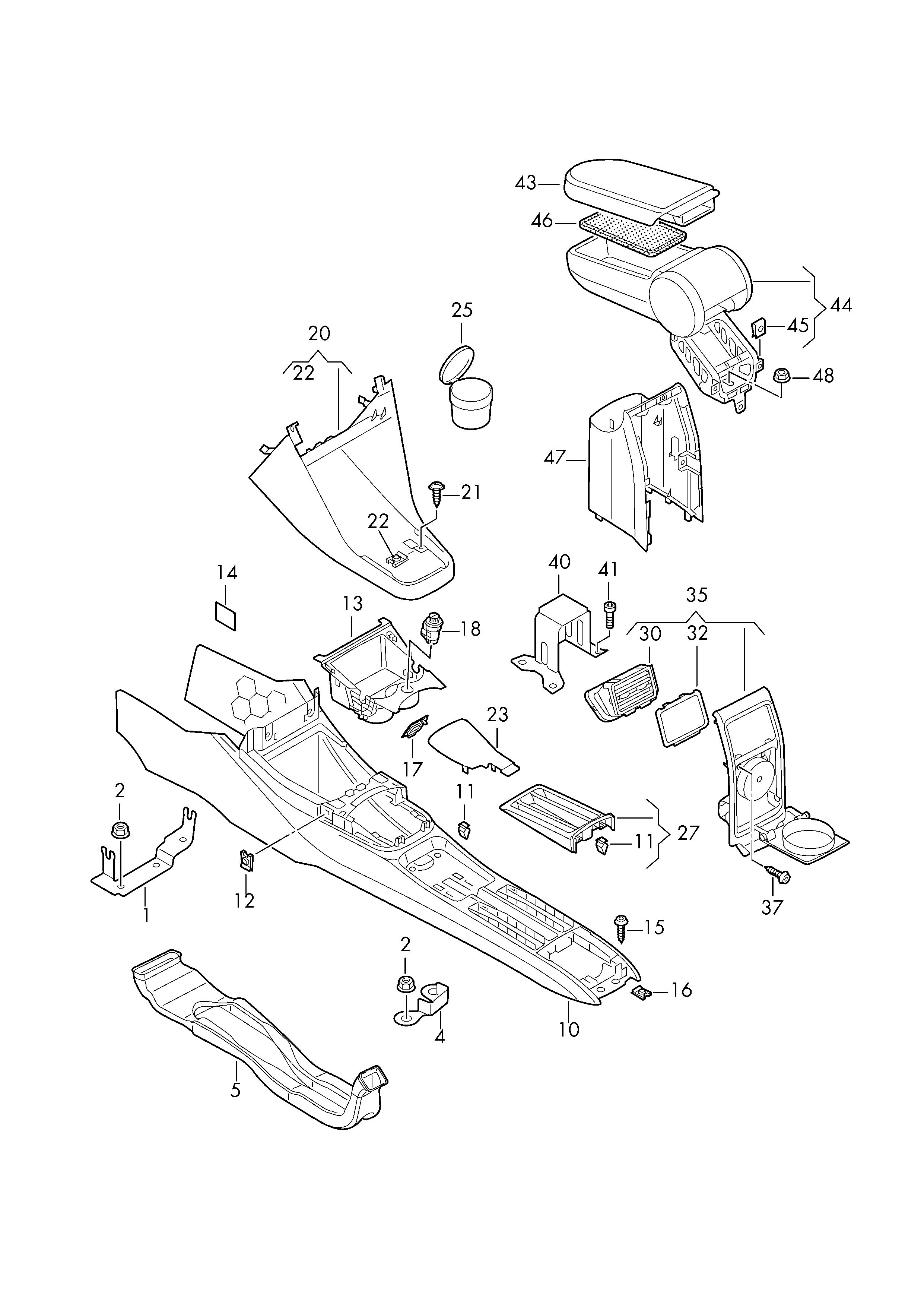

Scheme Centre console, ashtray, middle armrest, front square back Volkswagen Polo 2013-2017 EUR
