Central wiring set Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0971051	Central wiring set * part number must be ordered * manually by indicating * vehicle id number. * copy of vehicle data * plate must be included * if possible	999	Next
1	1K0971371	Diode, with cable for wire cross section: also use: repair set 1N4002 1,0-1,5 000 979 941 KL.75	999	Next
1	5N0971327	Adapter cable loom control unit for camera radio navigation unit	999	Next
1	1J0973332	Flat contact housing can bus interface	999	Next
1	1J0973119	Flat contact housing with contact locking mechanism can bus interface	999	Next
1	1J0973119	Flat contact housing with contact locking mechanism can bus interface	999	Next
1	443937527	Relay plate	999	Next
1	8E0937527	Adapter dual small relay plate	999	Next
1	4B0937527	Relay plate	999	Next
1	1K0972117A	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
1	4A0937530	Fuse holder	999	Next
1	1J0971972	Flat connector housing wiring set for footwell lamp	999	Next
1	1J0973119	Flat contact housing with contact locking mechanism glove compartment lid light	999	Next
1	1K0972930A	Flat connector housing with contact locking mechanism central control unit for convenience system	999	Next
1	1K0972924	Flat contact housing with contact locking mechanism central control unit for convenience system	999	Next
1	7M3972726B	Flat contact housing with cap locking mechanism control unit for cornering light and headlight range ctrl	999	Next
1	1K0971992	Flat connector housing with contact locking mechanism	999	Next
1	7L0972776	Flat contact housing for models with the possibility of deactivating the front passenger airbag	999	Next
1	1J0971972	Flat connector housing glove compartment lid light	999	Next
1	4E0973205	Flat contact housing with contact locking mechanism for vehicles with front passenger airbag	999	Next
1	1K0972923	Flat contact housing with contact locking mechanism central control unit for convenience system	999	Next
1	4E0972586	Flat contact housing for vehicles with front passenger airbag	999	Next
1	1J0971972	Flat connector housing temperature sensor air guide channel	999	Next
1	1J0971972	Flat connector housing for models with footwell illumination	999	Next
1	1K0937722D	Flat contact housing with contact locking mechanism coupling element wiring set for door (passenger side)	999	Next
1	5N0973100	Flat connector housing control unit for airbag seal also use: 8K0 971 904 5Q0 973 779 A	999	Next
1	5N0973100A	Flat connector housing control unit for airbag seal also use: 8K0 971 904 5Q0 973 779 A	999	Next
1	5N0973100B	Flat connector housing control unit for airbag seal also use: 8K0 971 904 5Q0 973 779 A	999	Next
1	5N0973100C	Flat connector housing control unit for airbag seal also use: 8K0 971 904 5Q0 973 779 A	999	Next
1	5Q0973779	Locking mechanism	999	Next
1	8K0973706	Flat contact housing with contact locking mechanism accelerator pedal sender	999	Next
1	1K0972723A	Flat contact housing for vehicles with additional electric air heater	999	Next
1	1K0972704C	Flat contact housing sun sensor	999	Next
1	1K0972961	Flat contact housing with contact locking mechanism onboard supply control unit slot: E	999	Next
1	1K0972929	Flat contact housing with contact locking mechanism onboard supply control unit slot: A	999	Next
1	1K0937702D	Flat contact housing with contact locking mechanism onboard supply control unit slot: A	999	Next
1	3A0972695A	Flat contact housing with contact locking mechanism for diagnostic plug connector mounting	999	Next
1	1K0937702E	Flat contact housing with contact locking mechanism onboard supply control unit slot: B	999	Next
1	1K0972929A	Flat contact housing with contact locking mechanism onboard supply control unit slot: D	999	Next
1	1K0937702F	Flat contact housing with contact locking mechanism onboard supply control unit slot: C	999	Next
1	1K0937722D	Flat contact housing with contact locking mechanism coupling element wiring set for door (drivers side)	999	Next
1	1T1937615B	Fuse holder dashboard	999	Next
1	5Q0972718B	Flat contact housing with contact locking mechanism switches in central console	999	Next
1	5Q0972718A	Flat contact housing with contact locking mechanism switches in central console	999	Next
1	1J0919321	Flat contact housing cigarette lighter	999	Next
1	1K0972776	Flat contact housing with contact locking mechanism selector mechanism	999	Next
1	1K0972928	Flat contact housing with contact locking mechanism button for electromechanical parking brake	999	Next
1	7L0972762	Flat contact housing with contact locking mechanism coupling element seat	999	Next
1	1J0973332	Flat contact housing belt latch	999	Next
1	1K0972766A	Flat contact housing with contact locking mechanism for models with seat occupant detection	999	Next
1	3D0972762	Flat connector housing belt latch with warning contact	999	Next
1	8J0972586	Flat contact housing with contact locking mechanism belt latch with warning contact	999	Next
1	4E0972144	Flat contact housing with contact locking mechanism interface box	999	Next
1	4M0972144	Flat contact housing with contact locking mechanism interface box	999	Next
1	3B0972724	Flat contact housing with contact locking mechanism digital satellite radio tuner	999	Next
1	3D0972708	Flat contact housing digital satellite radio tuner	999	Next
1	4E0972144	Flat contact housing with contact locking mechanism digital tv tuner (dvb-t)	999	Next
1	4M0972144	Flat contact housing with contact locking mechanism multimedia interface box 'mdi' with integrated control unit	999	Next
1	3C0973763B	Flat contact housing with cap slide valve control unit for electro- mechanical parking brake	999	Next
1	1J0919321	Flat contact housing cigarette lighter	999	Next
1	8K0973754	Flat contact housing aux-in socket	999	Next
1	1J0919321	Flat contact housing cigarette lighter	999	Next
1	8E0972112	Flat contact housing with contact locking mechanism multimedia interface box 'mdi' with integrated control unit	999	Next
1	4E0972726	Flat contact housing with cap locking mechanism control unit for parking aid	999	Next
1	5Q0972718A	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
1	6Q0972726	Flat contact housing with contact locking mechanism cd changers >>	999	Next
1	1J0972923	Flat contact housing with contact locking mechanism socket	999	Next
1	3B0972722	Flat contact housing aux-in socket	999	Next
1	1J0972753	Flat contact housing inverter	999	Next
1	4E0971636C	Flat contact housing with cap amplifiers	999	Next
1	1K0971975	Flat contact housing with contact locking mechanism for vehicles with semi-automatic controlled a/c system	999	Next
1	1K0972772	Flat contact housing with contact locking mechanism switch hazard warning lights	999	Next
1	3B0972722	Flat contact housing control lamp for deactivation of front passenger airbag	999	Next
1	8E0972420	Flat contact housing with contact locking mechanism diagnosis interface for data bus (gateway)	999	Next
1	7L6972726	Flat contact housing with cap locking mechanism radio	999	Next
1	3B7035447B	Flat contact housing with contact locking mechanism radio	999	Next
1	3B7035444	Flat contact housing with additional contact lock and additional connector housing mountings radio	999	Next
1	3B7035444A	Flat contact housing with additional contact lock and additional connector housing mountings RADIO	999	Next
1	8X0035444	Flat contact housing with additional contact lock and additional connector housing mountings	999	Next
1	8X0035447A	Flat contact housing with contact locking mechanism radio	999	Next
1	3B7035447A	Flat contact housing with contact locking mechanism radio	999	Next
1	8X0035447B	Flat contact housing with contact locking mechanism radio	999	Next
1	3B7035447	Flat contact housing with contact locking mechanism radio	999	Next
1	8W0971832	Flat contact housing reader coil	999	Next
1	1J0972977D	Flat contact housing with cap locking mechanism	999	Next
1	4B0972623	Flat contact housing with contact locking mechanism loudspeaker parking aid	999	Next
1	1J0971972	Flat connector housing temperature sensor for vehicles with electronically regulated air condit.	999	Next
1	8E0971980	Flat contact housing with contact locking mechanism switch for lighting	999	Next
1	8E0972112	Flat contact housing with contact locking mechanism multimedia interface box 'mdi' with integrated control unit	999	Next
1	8E0972112B	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
1	8E0972112A	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
1	8E0972416A	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
1	8L0971883	Flat contact housing switch for lighting	999	Next
1	1K0972974	Flat contact housing with contact locking mechanism electronic module for steering column combination switch	999	Next
1	1K0971975	Flat contact housing with contact locking mechanism electronic module for steering column combination switch	999	Next
1	7L0972762	Flat contact housing with contact locking mechanism seat	999	Next
1	1J0973332	Flat contact housing belt latch with warning contact	999	Next
1	8J0972586	Flat contact housing with contact locking mechanism side airbag unit	999	Next

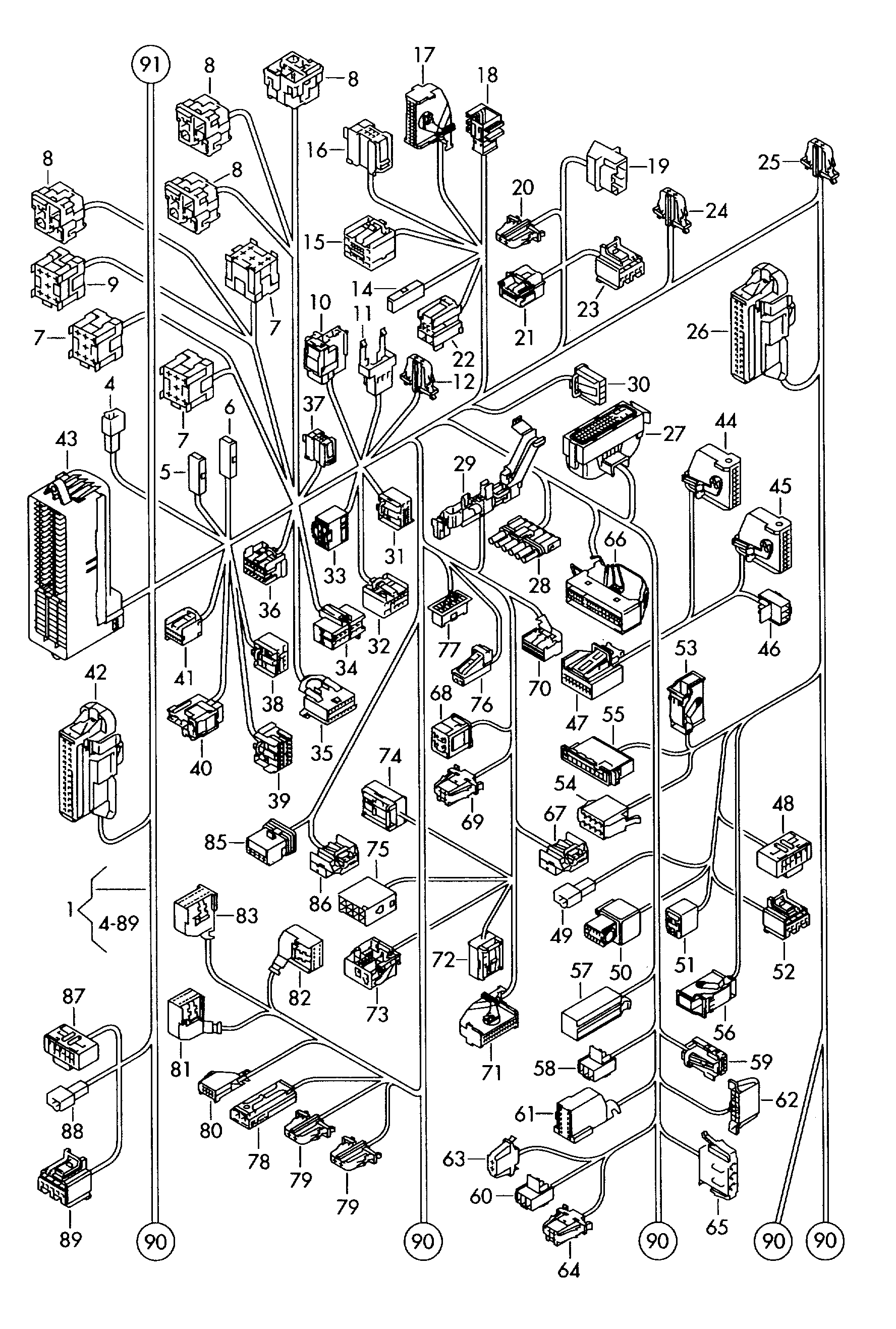

Scheme Central wiring set Volkswagen Tiguan 2010-2017 EUR
