Central wiring set Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M1971051	Central wiring set	999	Next
5	7L0972762	Flat contact housing with contact locking mechanism for models with electric height adjustable seats	999	Next
6	8J0972586	Flat contact housing with contact locking mechanism side airbag unit (drivers side)	999	Next
6	7N0972703	Flat contact housing with contact locking mechanism coupling element guide rail for seat	999	Next
6	5K0972713	Flat connector housing with contact locking mechanism for models with seat occupant detection	999	Next
7	1J0973332	Flat contact housing coupling element adapter wiring set for seat base	999	Next
8	8E0971833	Flat contact housing interior mirror control panel for telephone	999	Next
-	5M0971615G	Cable guide bench seat for four-wheel drive	999	Next
9	3B0972734	Flat contact housing coupling element roof wiring harness	999	Next
11	893971636	Flat contact housing sliding roof motor	999	Next
12	1C0973119B	Flat contact housing rain sensor	999	Next
14	8E0906236	Flat contact housing radar sensor	999	Next
15	8E0971832	Flat contact housing with contact locking mechanism ultrasound sensor	999	Next
16	6Q0972706	Flat contact housing with contact locking mechanism interior light	999	Next
17	1J0973119	Flat contact housing with contact locking mechanism microphone for hands- free device	999	Next
18	1K0937722D	Flat contact housing with contact locking mechanism coupling element b-pillar	999	Next
20	4E0972144	Flat contact housing with contact locking mechanism control and receiver unit for car radio	999	Next
21	7L0972762	Flat contact housing with contact locking mechanism coupling element adapter wiring set for seat base	999	Next
22	8J0972586	Flat contact housing with contact locking mechanism side airbag unit (passenger side)	999	Next
23	1J0973332	Flat contact housing coupling element adapter wiring set for seat base	999	Next
24	8K0973754	Flat contact housing push button for models with interior monitor	999	Next
25	1K0937722D	Flat contact housing with contact locking mechanism coupling element b-pillar	999	Next
26	1C0973119B	Flat contact housing rain sensor	999	Next
27	8E0971833	Flat contact housing for vehicles with automatic anti-dazzle interior rearview mirror	999	Next
28	1K0919231	Flat contact housing sender for fuel gauge	999	Next
30	6Q0971905	Grommet	999	Next
31	1J0973119	Flat contact housing with contact locking mechanism fuel metering pump auxiliary heater	999	Next
32	8T0973702	Flat contact housing with gasket control unit for fuel pump	999	Next
34	8K0973323S	Flat contact housing with contact locking mechanism lateral acceleration sensor -crashsensor-	999	Next
35	5M1971581	Round connector hsg with cable for vehicles with belt tensioners	999	Next
36	8T0973702	Flat contact housing with gasket speed sensor	999	Next
38	1J0919321	Flat contact housing for vehicles with socket in luggage compartment	999	Next
39	6Q0972706	Flat contact housing with contact locking mechanism control and receiver unit for radio-controlled aux. heater	999	Next
40		Hose line for washer water	999	Next
41	8K0973323S	Flat contact housing with contact locking mechanism lateral acceleration sensor crashsensor	999	Next
42	6X0972773	Flat contact housing airbag side airbag unit	999	Next
44	1J0972923	Flat contact housing with contact locking mechanism servo element for central locking in tank flap	999	Next
45	4B0972623	Flat contact housing with contact locking mechanism buzzer for parking aid	999	Next
46	1J0971972	Flat connector housing light (luggage compartment)	999	Next
47	6X0972773	Flat contact housing for vehicles with pyrotech- nischen seat belt tensioner	999	Next
48	1K0972774	Flat contact housing with contact locking mechanism tail light	999	Next
50	1J0973814	Flat contact housing coupling element wiring set for bumper	999	Next
51	1J0971913A	Grommet 39,7/4,5	999	Next
52	5K0971582	Round connector hsg with cable (passenger side)	999	Next
53	1K0971978	Rd. connector sleeve housing socket for trailer towing	999	Next
54	1J0971903	Grommet	999	Next
55	8T0973702	Flat contact housing with gasket speed sensor	999	Next
56	4B0973712	Flat contact housing with contact locking mechanism speed sensor level sensor	999	Next
57	6X0972773	Flat contact housing head airbag unit seat belt with belt tensioner unit	999	Next
58	6Q0972883B	Flat contact housing with contact locking mechanism control unit for trailer detection	999	Next
59	6Q0937713	Flat contact housing with contact locking mechanism control unit for trailer detection	999	Next
60	1K0972774	Flat contact housing with contact locking mechanism tail light	999	Next
61	1J0973303	Flat contact housing coupling element cable set for tailgate	999	Next
62	1J0973303A	Flat contact housing coupling element cable set for tailgate	999	Next
63	1J0973303M	Flat contact housing with retainer guide coupling element cable set for tailgate	999	Next
64	5K0971582	Round connector hsg with cable	999	Next

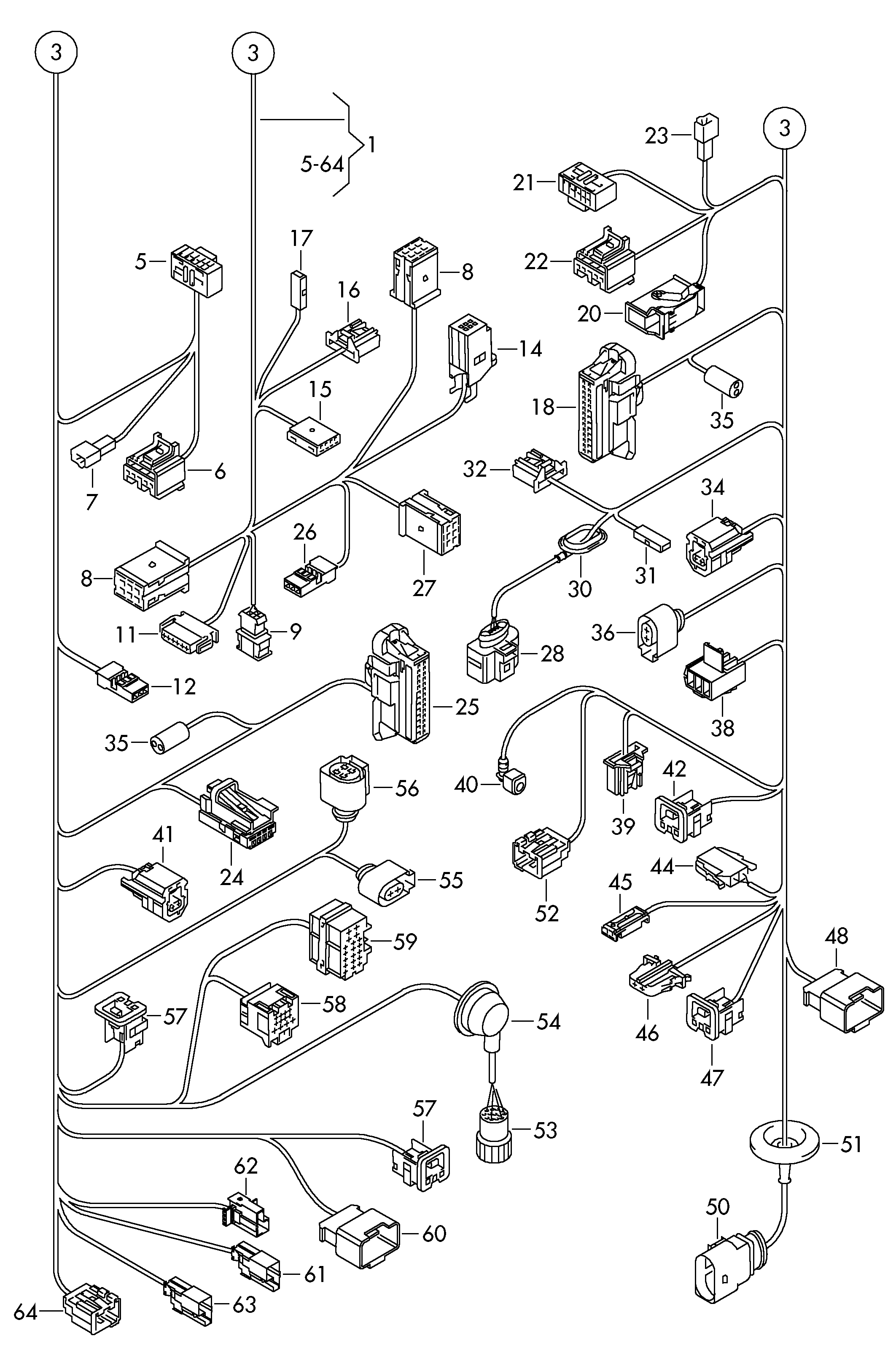

Scheme Central wiring set Volkswagen Golf Plus 2012-2014 EUR
