Central wiring set Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M1971051	Central wiring set	999	Next
-	5M1970161AC	Aerial cable reversing camera radio navigation unit c-pillar	999	Next
4	6Q0972726	Flat contact housing with contact locking mechanism cd changers	999	Next
5	8E0972112	Flat contact housing with contact locking mechanism multimedia interface box 'mdi' with integrated control unit	999	Next
6	1J0919321	Flat contact housing cigarette lighter	999	Next
7	5K0971636	Flat contact housing with cap amplifier for digital sound system dsp	999	Next
8	1J0972753	Flat contact housing socket	999	Next
10	1J0972752	Flat contact housing cigarette lighter	999	Next
11	8K0973754	Flat contact housing aux-in socket	999	Next
12	1J0973119	Flat contact housing with contact locking mechanism switch for handbrake warning light	999	Next
14	4D0971636D	Flat contact housing pushbutton for tyre pressure warning	999	Next
15	4D0971636A	Flat contact housing pushbutton for parking aid	999	Next
16	4D0971636	Flat contact housing pushbutton for electronic stabilisation program esp	999	Next
17	4D0971636B	Flat contact housing pushbutton for parking aid for park assist system	999	Next
18	1J0919321	Flat contact housing cigarette lighter	999	Next
19	1K0972776	Flat contact housing with contact locking mechanism selector mechanism for automatic gearbox	999	Next
20	5M0973775A	Flat contact housing with contact locking mechanism control unit for airbag	999	Next
20	5M0973050C	Flat contact housing with contact locking mechanism control unit for airbag	999	Next
21	1K0973706	Flat contact housing with contact locking mechanism accelerator pedal sender	999	Next
22	1K0937702D	Flat contact housing with contact locking mechanism onboard supply control unit slot: A	999	Next
23	1K0937702F	Flat contact housing with contact locking mechanism onboard supply control unit slot: C	999	Next
24	3A0972695A	Flat contact housing with contact locking mechanism for diagnostic plug	999	Next
24	8D0972695	Flat contact housing with contact locking mechanism for diagnostic plug	999	Next
26	1J0973332	Flat contact housing trailer towing	999	Next
27	1J0973119	Flat contact housing with contact locking mechanism for trailer towing	999	Next
28	4B0937527	Relay plate	999	Next
29	4A0937530	Fuse holder	999	Next
30	8E0937527	Adapter dual small relay plate	999	Next
31	7M3972726B	Flat contact housing with cap locking mechanism control unit for automatic headlight range control	999	Next
33	1K0971992	Flat connector housing with contact locking mechanism control and receiver unit for car radio	999	Next
34	1J0973119	Flat contact housing with contact locking mechanism switch for glove box lid light	999	Next
35	1J0972775	Flat contact housing with contact locking mechanism harness for air conditioner	999	Next
36	1K0937702E	Flat contact housing with contact locking mechanism onboard supply control unit slot: B	999	Next
37	1J0971972	Flat connector housing wiring set for footwell lamp	999	Next
38	443937527	Relay plate	999	Next
39	1J0971972	Flat connector housing glove compartment lid light	999	Next
40	7L0972776	Flat contact housing for models with the possibility of deactivating the front passenger airbag	999	Next
41	1J0971972	Flat connector housing illumination for fresh air controls	999	Next
42	1K0937722D	Flat contact housing with contact locking mechanism coupling element a-pillar	999	Next
43	1K0972723A	Flat contact housing for vehicles with additional electric air heater	999	Next
43	1K0972723	Flat contact housing for vehicles with additional electric air heater	999	Next
44	8E0972112B	Flat contact housing with contact locking mechanism control unit for park steering assist	999	Next
45	8E0972416	Flat contact housing with contact locking mechanism control unit for park steering assist	999	Next
46	8E0972112	Flat contact housing with contact locking mechanism control unit for park steering assist	999	Next
48	937615	Fuse holder fuse box for flat fuses	999	Next
49	8E0971980	Flat contact housing with contact locking mechanism switch for lighting	999	Next
50	8L0971883	Flat contact housing headlight range control	999	Next
51	4B0972623	Flat contact housing with contact locking mechanism buzzer for parking aid	999	Next
52	1K0972974	Flat contact housing with contact locking mechanism coupling element airbag unit for steering wheel	999	Next
53	1K0971975	Flat contact housing with contact locking mechanism electronic module for steering column combination switch	999	Next
55	1J0972977D	Flat contact housing with cap combi-instrument	999	Next
56	8E0972420	Flat contact housing with contact locking mechanism diagnosis interface for data bus (gateway)	999	Next
57	3B7035444A	Flat contact housing with additional contact lock and additional connector housing mountings	999	Next
58	8X0035447B	Flat contact housing with contact locking mechanism radio	999	Next
59	3B7035447	Flat contact housing with contact locking mechanism radio	999	Next
60	8X0035447A	Flat contact housing with contact locking mechanism radio	999	Next
61	7L6972726	Flat contact housing with cap locking mechanism radio navigation unit for vehicles with reversing camera system	999	Next
62	1K0971975	Flat contact housing with contact locking mechanism control and display panel for air-conditioning system climatronic	999	Next
63	1K0972772	Flat contact housing with contact locking mechanism emergency light switch	999	Next
64	3B0972722	Flat contact housing control lamp for deact- ivation of front passenger airbag	999	Next
66	1J0972704	Flat contact housing sun sensor	999	Next
	1K8971615C	Cable guide steering column	999	Next
-	5K0971845A	Bracket for connector housing for diagnostic plug	999	Next

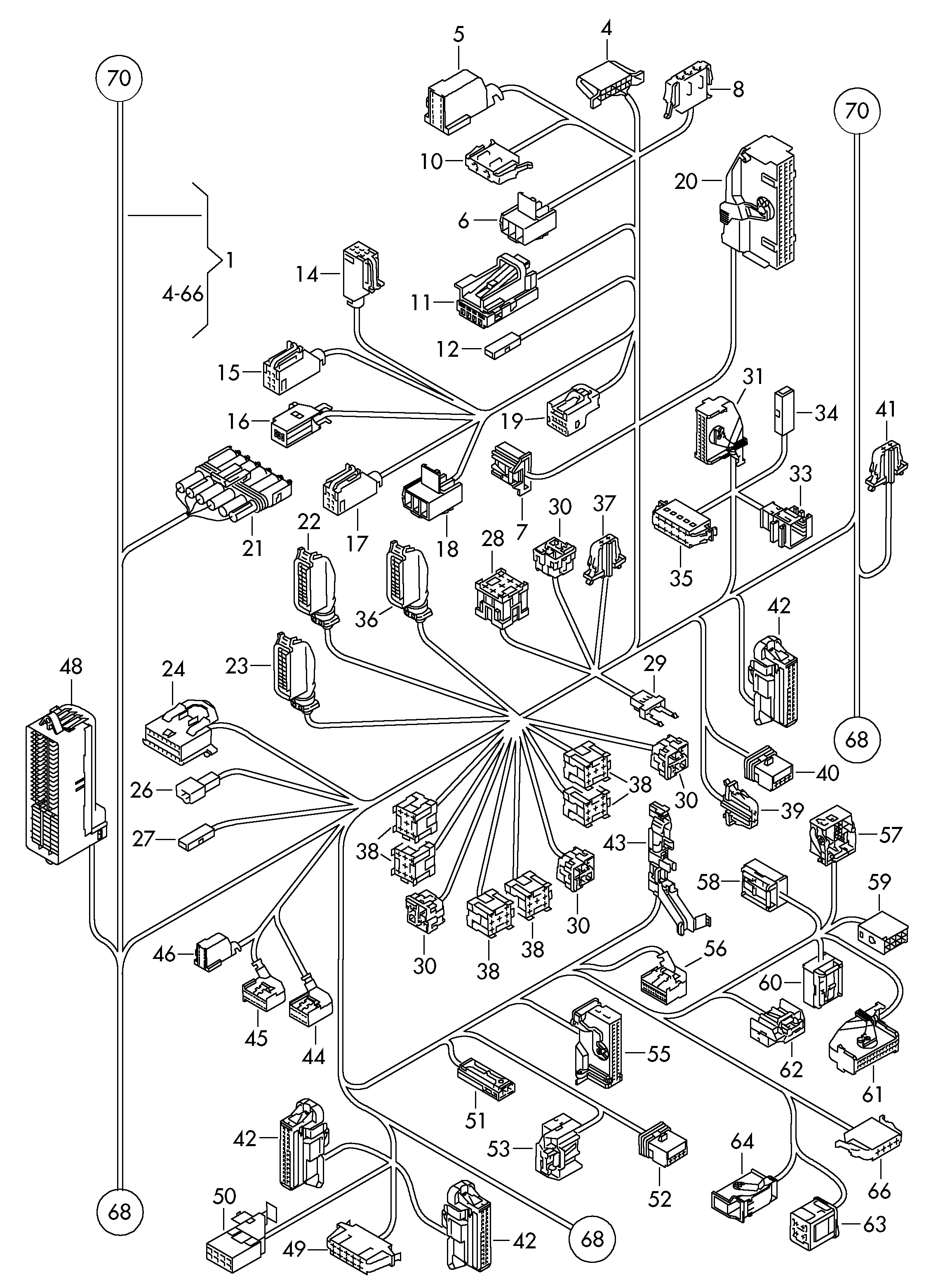

Scheme Central wiring set Volkswagen Golf Plus 2012-2014 EUR
