Central wiring set, single wire, individual parts left, engine bay Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0971345	Single wire for fuse box/relay plate battery for wire cross section: L=601 MM 25QMM	999	Next
1	3C0971156	Single wire for fuse box/relay plate battery for wire cross section: L=4851 MM 10 MM	999	Next
1	3C0971156A	Single wire for fuse box/relay plate battery for wire cross section: L=4843 MM 10 MM	999	Next
3	1K0906234	Flat contact housing radiator fan	999	Next
4	1J0906380B	Flat contact housing with gasket control unit for automatic gearbox	999	Next
4	1J0906380B	Flat contact housing with gasket control unit for automatic gearbox	999	Next
4	7L0906385A	Flat contact housing with contact locking mechanism control unit	999	Next
4	1J0906385C	Flat contact housing with cap control unit	999	Next
5	1J0927320	Round connector housing with contact locking mechanism control unit gear housing coupling st. connector housing	999	Next
6	1K0937507B	Relay plate	999	Next
7	1K0937700B	Flat contact housing battery box	999	Next
8	1K0937701B	Flat contact housing battery box	999	Next
9	3C0971845H	Bracket flat contact housing side member	999	Next
10	1K0971848S	Cable holder	999	Next
10	3C0971848E	Cable holder	999	Next
10	N91115901	Cable holder hole/sheet metal thickness: 6,5/0,65,0	999	Next
10	1T0971930E	Cable holder	999	Next
11	4D0971992	Flat connector housing with contact locking mechanism fanfare	999	Next
11	4D0971993	Flat connector housing with contact locking mechanism pressure sender	999	Next
11	1J0972483A	Flat contact housing with gasket air quality sensor	999	Next
12	8K0973323J	Flat contact housing with contact locking mechanism locking mechanism lateral acceleration sensor -crashsensor-	999	Next
12	4B0972883	Flat contact housing with contact locking mechanism accelerator sensor	999	Next
13	1J0972923	Flat contact housing with contact locking mechanism temperature sensor exhaust gas temperature sender additional coolant pump switch for reversing light reservoir for brake fluid brake pressure regulator	999	Next
14	1J0972924	Flat contact housing pressure sender	999	Next
15	4H0973713	Flat contact housing with contact locking mechanism lambda probe	999	Next
15	5N1973206	Flat contact housing lambda probe	999	Next
15	1K0973213	Flat contact housing with contact locking mechanism gear housing coupling st. connector housing	999	Next
15	8T0973702	Flat contact housing with gasket tyre pressure sensor	999	Next
15	4F0973702A	Flat contact housing thermostat	999	Next
15	4F0973702A	Flat contact housing terminal clamp for vehicles with start-stop	999	Next
15	1J0973702	Flat contact housing with contact locking mechanism vane pump	999	Next
15	6E0973702	Flat contact housing with contact locking mechanism tyre pressure sensor	999	Next
15	1J0973702A	Flat contact housing with contact locking mechanism temperature sensor damper	999	Next
15	7L0973702	Flat contact housing with seal solenoid valve metering line	999	Next
15	8K0973702	Flat contact housing with contact locking mechanism temperature sensor	999	Next
15	8K0973702A	Flat contact housing with contact locking mechanism temperature sensor	999	Next
15	8K0973702G	Flat contact housing with contact locking mechanism temperature sensor	999	Next
15	8K0973703	Flat contact housing with contact locking mechanism pressure sensor air quality sensor matching contact housing: 1J0 973 803	999	Next
15	4H0973703A	Flat contact housing sensor for gear detection	999	Next
16	1J0973704	Flat contact housing with contact locking mechanism lambda probe pressure sender wastegate	999	Next
17	6Q0973704A	Flat contact housing with contact locking mechanism lambda probe	999	Next
17	6X0973704G	Flat contact housing with contact locking mechanism lambda probe	999	Next
17	8K0973704	Flat contact housing with contact locking mechanism lambda probe	999	Next
18	8K0973705	Flat contact housing with contact locking mechanism distance sensor air mass meter nox-sensor for emissions control can bus interface	999	Next
18	4F0973705	Flat contact housing with contact locking mechanism air mass meter 03G 906 461 C	999	Next
18	4H0973704	Flat contact housing with contact locking mechanism air mass meter 03L 906 461 A	999	Next
19	4B0973712	Flat contact housing with contact locking mechanism sensor for headlight range control switch - brake light brake light sensor	999	Next
19	4B0973712A	Flat contact housing with contact locking mechanism level sensor	999	Next
20	1J0973713	Flat contact housing lambda probe wiring set for servotronic hydraulics control unit for diagnostic plug water box	999	Next
21	6Q0973713A	Flat contact housing lambda probe	999	Next
22	1K0973713F	Flat contact housing hydraulics control unit	999	Next
22	1J0973714	Flat contact housing gear housing coupling st. connector housing	999	Next
22	1J0973714	Flat contact housing gear housing coupling st. connector housing	999	Next
23	1J0973715	Flat contact housing with contact locking mechanism nox-sensor for emissions control	999	Next
23	6X0973717	Flat contact housing with contact locking mechanism gear housing	999	Next
23	6X0973717	Flat contact housing with contact locking mechanism flat contact housing mounting gear housing	999	Next
24	1J0973721	Flat contact housing with contact locking mechanism potential distributor	999	Next
25	3C0973721	Relay plate for vehicles with heated windscreen	999	Next
25	038973721B	Flat contact housing with contact locking mechanism control unit for glow plug	999	Next
26	1J0973722	Flat contact housing with contact locking mechanism pressure-relief valve switch heater pipe	999	Next
26	1J0973722	Flat contact housing with contact locking mechanism wiring set for three-phase alternator pressure-relief valve	999	Next
26	8P0973722	Flat contact housing with contact locking mechanism heater pipe charge pressure sender	999	Next
27	1J0973724	Flat contact housing wiper motor wiring set for three-phase alternator	999	Next
27	1J0973724	Flat contact housing wiring set for engine	999	Next
28	6R0973735	Flat contact housing halogen twin headlights wiring harness for gearbox	999	Next
28	6R0973735	Flat contact housing gearbox	999	Next
28	6R0973735	Flat contact housing voltage stabiliser, before 08.11.2010	999	Next
28	1J0973735	Flat contact housing with contact locking mechanism gearbox	999	Next
28	1J0973735	Flat contact housing with contact locking mechanism gearbox	999	Next
28	8K0973812A	Flat contact housing with contact locking mechanism voltage stabiliser, D 08.11.2010 and after	999	Next
29	1J0973737	Flat contact housing with contact locking mechanism halogen twin headlights for gas discharge bulb wiring set for engine	999	Next
30	1K0973751	Flat contact housing with gasket starter	999	Next
31	1J0973752	Flat contact housing with contact locking mechanism secondary air pump	999	Next
32	1J0973802	Flat connector housing with contact locking mechanism brake pad wear display	999	Next
33	1K0973804	Flat contact housing with contact locking mechanism adapter wiring set for a/c compressor	999	Next
34	1J0973814	Flat contact housing wiring set for bumper for vehicles with parking aid	999	Next
35	6X0973815	Flat contact housing with contact locking mechanism radar sensor	999	Next
36	1J0973835	Flat contact housing with contact locking mechanism coupling st. connector housing gear housing	999	Next
36	5Q0973837	Flat contact housing with contact locking mechanism wiring set for bumper for models with fog lamps	999	Next
37	71973851	Flat connector housing with contact locking mechanism starter windscreen	999	Next
38	1J0973999A	Flat contact housing with contact locking mechanism air mass meter	999	Next
50	1K0423941	Terminal connection piece 1K0 971 842 F	999	Next
50	N10478501	Retainer, swivel for cable: (clamp base, rotating) 10MM + 5,0MM	999	Next
51	1K0971615CT	Cable guide side member	999	Next
51	1K2971615A	Cable guide gearbox mounting side member	999	Next
51	1K0971615DB	Cable guide side member	999	Next
51	1K0971615DE	Cable guide side member	999	Next
51	1K0971615DA	Cable guide side member	999	Next
51	1K0971615CN	Cable guide side member	999	Next
52	1K0971615BT	Cable guide side member wiring set for servotronic	999	Next
53	1K0971842F	Bracket assembly carrier wiring set for servotronic	999	Next
53	3C0971848F	Cable holder for sheet metal thickness: 0,83,5MM	999	Next
54	1K0971842H	Holder for wiring harness wiring set for servotronic	999	Next
55	1J0971843	Bracket water box	999	Next
56	3C0971845B	Bracket side member	999	Next
56	4D0971847B	Clip	999	Next
56	3C0971830	Bracket for flat connector housing lambda probe	999	Next
56	3C0971830A	Bracket for flat connector housing lambda probe	999	Next
57	3C0971845D	Bracket water box	999	Next
58	3C0971865	Cable guide - upper part water box	999	Next
59	3C0971866	Cable guide - lower part water box	999	Next
60	3C0971865A	Cable guide - upper part water box	999	Next
61	3C0971866A	Cable guide - lower part water box	999	Next
62	3C1971890	Bracket for connector housing wiper motor	999	Next
63	3C2971890A	Bracket for connector housing wiper motor	999	Next
63	1K0906215S	Retaining plate flat connector housing front frame 1J0 973 802	999	Next
63	3C1971303	Holder for flat cable windscreen (laminated) heated water box	999	Next
63	7D0971848G	Cable holder	999	Next

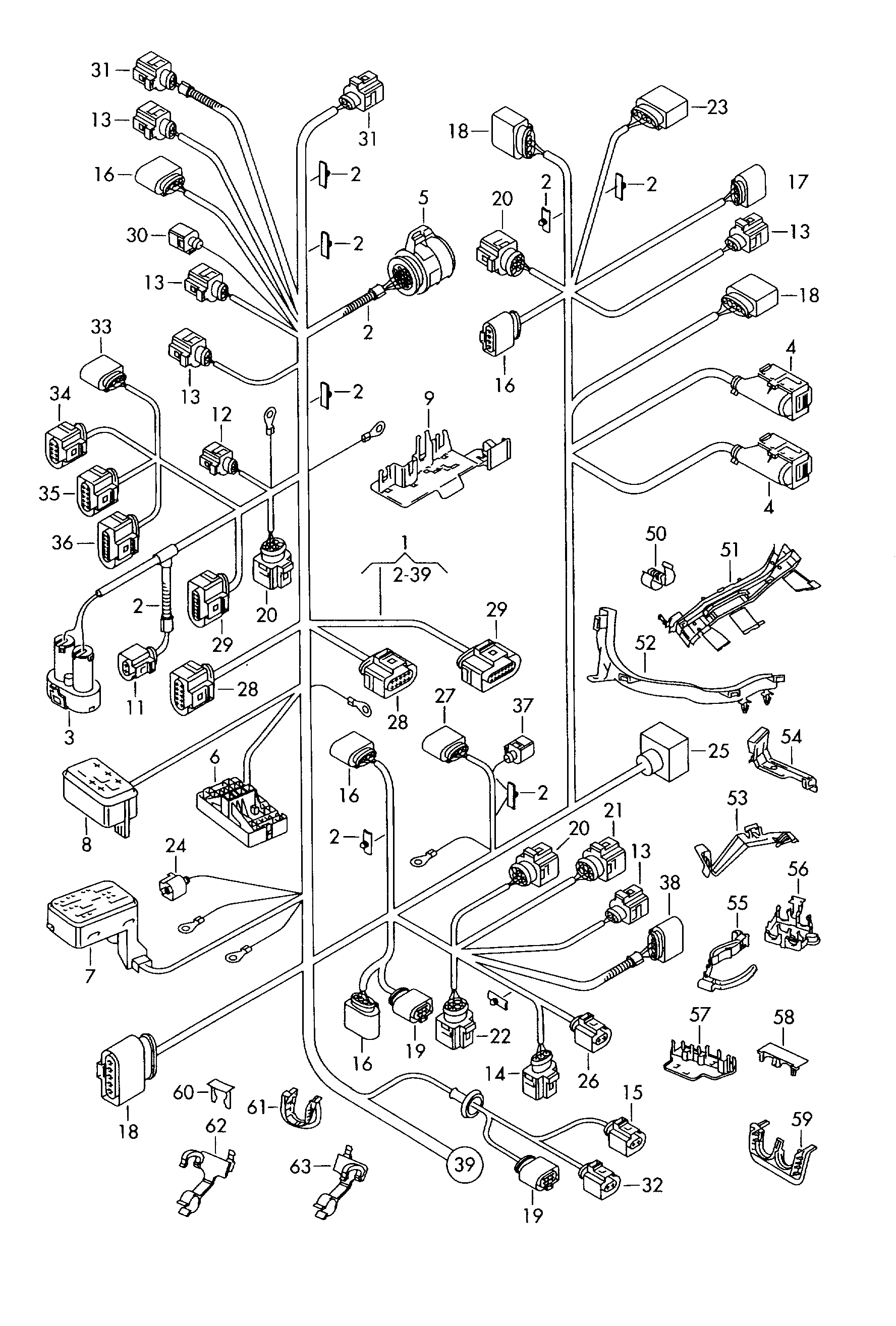

Scheme Central wiring set, single wire, individual parts left, engine bay Volkswagen Passat CC Coupe 2009-2012 EUR
