Central wiring set, individual parts right, interior Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
3	3W0971838	Cable ties hole/sheet metal thickness: 4,5X200 6,5/0,33	999	Next
4	1K0919231	Flat contact housing fuel delivery module	999	Next
4	1J0919321	Flat contact housing cigarette lighter	999	Next
5	3B0955831	Grommet seat	999	Next
6	3C8971446	Cable guide coupling st. connector housing seat	999	Next
7	5M0971838A	Cable tie with terminal socket with side cable guide toothed quadrant for bridge strength: cable ties 4,6X200MM 13MM	999	Next
8	1U0971739	Corrugated tube clip hole/sheet metal thickness: 6,5/0,63MM	999	Next
9	3D0971739	Clip	999	Next
10	1K0971818	Cable ties gasket for base plate hole/sheet metal thickness: toothed quadrant 4,6X160 6,5 / 0,61,8	999	Next
11	3D0971838Q	Cable tie with holder for weld pin: 5X200 5	999	Next
11	3C0971816	Double cable tie with base clip cable tie with holder for weld pin: toothed quadrant 5	999	Next
12	1C0971848C	Cable holder	999	Next
13	3B0971848H	Cable holder	999	Next
14	4B0971848	Cable holder hole/sheet metal thickness: 6,5/0,63MM	999	Next
15	8L0971848A	Cable holder hole/sheet metal thickness: 6,5MM/0,63MM	999	Next
16	3C8971615C	Cable guide	999	Next
16	3C9971861A	Cable guide harness for rear seat with heater seat	999	Next
16	3C9971861B	Cable guide harness for rear seat with heater seat	999	Next
17	3C9971862A	Cable guide harness for rear seat with heater seat	999	Next
17	3C9971862B	Cable guide harness for rear seat with heater seat	999	Next
17	3C0972837	Cable guide seat support	999	Next
18	3C0971896D	Cable guide bottom plate	999	Next
19	6Q0971905	Grommet	999	Next
19	4D0971908B	Grommet rear spoiler 41/8	999	Next
20	3B0971913B	Grommet rear spoiler, before 02.11.2009 44/3MM	999	Next
20	3B0971913E	Grommet rear spoiler, D 02.11.2009 and after 44/5,4 MM	999	Next
21	1H0971913C	Grommet 44/5,4 MM	999	Next
22	6N0971921	Flat contact housing connection piece for rear window, heated	999	Next
23	1J0971972	Flat connector housing luggage compartment light aerial for access and start authorisation (kessy)	999	Next
24	8E0972112	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
24	8E0971934A	Flat contact housing with contact locking mechanism control unit for tyre pressure control	999	Next
25	8E0972112B	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
26	8E0972416	Flat contact housing with contact locking mechanism control unit for parking aid	999	Next
27	4B0972623	Flat contact housing with contact locking mechanism warning buzzer parking aid	999	Next
28	8K0973323S	Flat contact housing with contact locking mechanism locking mechanism lateral acceleration sensor -crashsensor-	999	Next
29	1J0972923	Flat contact housing with contact locking mechanism fuel filler flap	999	Next
30	1J0972704	Flat contact housing control unit for closing aid	999	Next
31	6Q0972706	Flat contact housing with contact locking mechanism remote control for remotely controlled auxiliary heater	999	Next
32	3D0972708	Flat contact housing magnetic field probe digital satellite radio tuner	999	Next
33	1T0972711A	Flat contact housing with contact locking mechanism cable set for tailgate matching contact housing: 8Z0 972 701	999	Next
34	3B0972724	Flat contact housing with contact locking mechanism digital satellite radio tuner	999	Next
35	3B0972732	Flat contact housing harness for rear seat with heater seat	999	Next
36	6X0972773	Flat contact housing locking mechanism seat belts	999	Next
36	8K0972571	Flatcontact housing with cable for vehicles with pyrotechnischen seat belt tensioner	999	Next
37	7H0972773A	Flat contact housing airbag locking mechanism side airbag unit	999	Next
38	5K0972705	Flat contact housing with contact locking mechanism tail light	999	Next
39	6Q0972777	Flat contact housing with contact locking mechanism	999	Next
39	6Q0973047	Flat contact housing with contact locking mechanism control unit for electronic regulated damping	999	Next
40	1K0972924	Flat contact housing with contact locking mechanism control unit for opening boot lid	999	Next
41	1J0973119	Flat contact housing with contact locking mechanism fuel metering pump	999	Next
42	1J0973332	Flat contact housing harness for rear seat with heater seat aerial rear window	999	Next
43	1J0973702	Flat contact housing with contact locking mechanism aerial for access and start authorisation (kessy), before 30.05.2011	999	Next
43	8K0973702	Flat contact housing with contact locking mechanism aerial for access and start authorisation (kessy), D 30.05.2011 and after	999	Next
43	1J0973702A	Flat contact housing with contact locking mechanism damper	999	Next
44	8T0973702	Flat contact housing with gasket tyre pressure sensor	999	Next
45	3D0973703	Flat contact housing with contact locking mechanism sender for fuel gauge	999	Next
46	1J0973713	Flat contact housing wiring harness for number plate light	999	Next
47	1J0973714	Flat contact housing wiring set for bumper for vehicles with parking aid	999	Next
47	4H0973715	Flat contact housing with contact locking mechanism wiring set for bumper for vehicles with park assist system	999	Next
47	4E0972713	Flat contact housing with contact locking mechanism for vehicles with lane change assist	999	Next

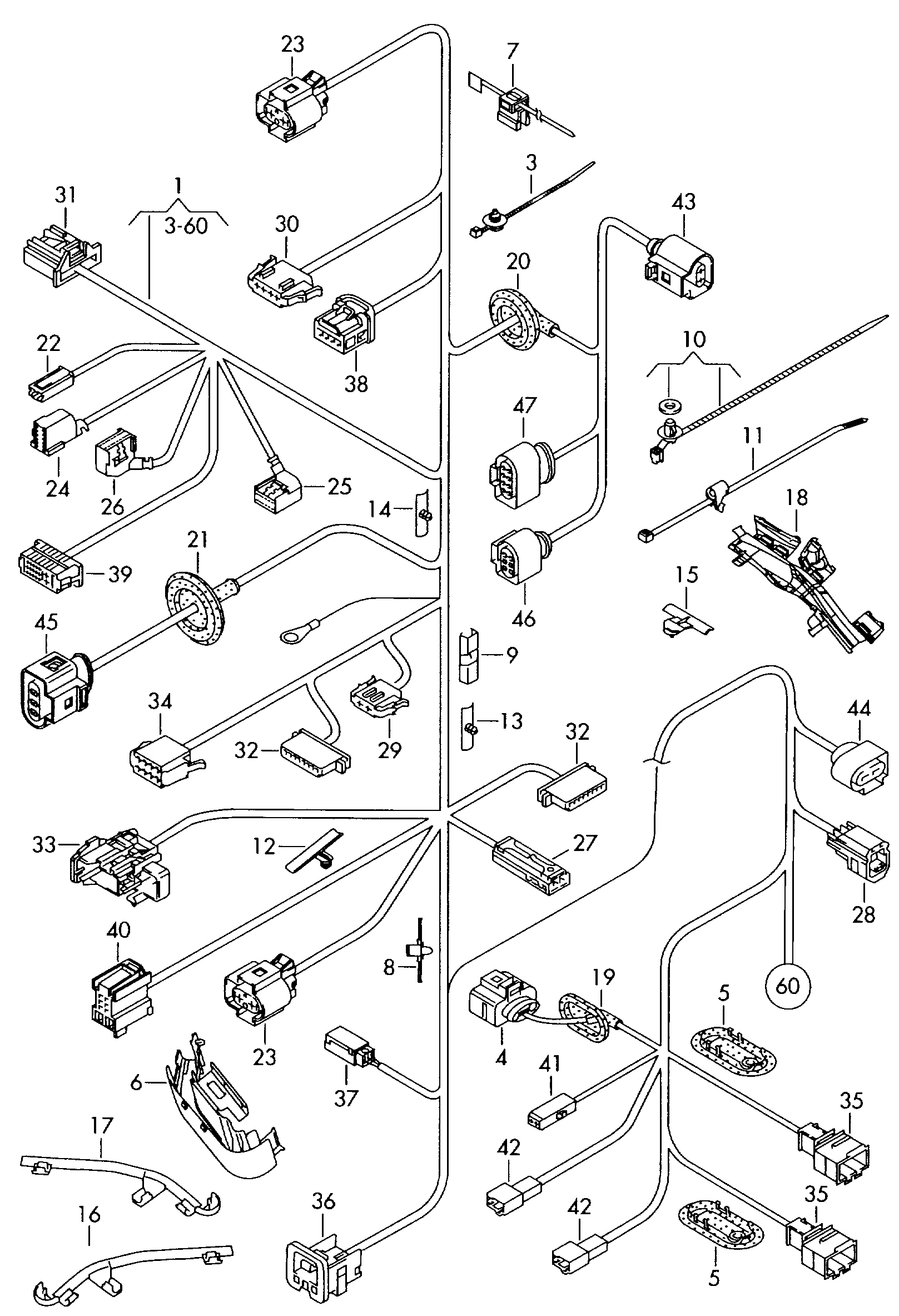

Scheme Central wiring set, individual parts right, interior Volkswagen Passat CC Coupe 2009-2012 EUR
