Central wiring set, individual parts right, engine bay Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
2		Pipe windscreen washer system	999	Next
3		Wiring harness for speed sensor	999	Next
4	1J0955998C	Grommet water jet	999	Next
4	1J0955998C	Grommet water jet	999	Next
5	3D0971838M	Cable tie with terminal socket 4,6X200	999	Next
5	1J0971003A	Bracket	999	Next
7	3C0971821A	Cable guide wheel housing	999	Next
8	3C0971839	Cover cable guide 3C0 971 821 A	999	Next
9	3B0919136A	Bracket for connector housing 71973851	999	Next
9	3D0971830D	Bracket for connector housing flat connector housing	999	Next
10	3D0971838Q	Cable tie with holder for weld pin: 5X200 5	999	Next
11		Discont. / replace: 4B0 971 848	999	Next
12	4B0971848	Cable holder	999	Next
12	7L0971880	Cable holder	999	Next
13	1K0971915E	Grommet	999	Next
14	6H0971921B	Protective cap for contact housing: 1K0 973 202	999	Next
15	6H0971921C	Bracket protective cover for contact housing: 1J0 973 702	999	Next
16	4D0971992	Flat connector housing with contact locking mechanism fanfare	999	Next
16	4B0972883	Flat contact housing with contact locking mechanism accelerator sensor	999	Next
17	1C0973119B	Flat contact housing aux-in socket	999	Next
17	8K0973323J	Flat contact housing with contact locking mechanism locking mechanism lateral acceleration sensor -crashsensor-	999	Next
18	8K0973323R	Flat contact housing with contact locking mechanism locking mechanism sensor for longit. accelerat. -crash sensor	999	Next
19	1K0973038	Flat contact housing with gasket control unit for electronic stabilisation program esp	999	Next
20	1J0973202	Flat contact housing with contact locking mechanism water level switch fluid container for water	999	Next
21	1K0973202	Flat contact housing with contact locking mechanism water level sender	999	Next
22	8E0973202	Flat contact housing with contact locking mechanism coupling element spray nozzle, heated	999	Next
23	1J0973702	Flat contact housing with contact locking mechanism switch bonnet	999	Next
23	1J0973702	Flat contact housing with contact locking mechanism solenoid valve	999	Next
23	1J0973702A	Flat contact housing with contact locking mechanism temperature sensor damper	999	Next
24	3D0973703	Flat contact housing with contact locking mechanism pressure sensor anti-theft alarm system	999	Next
24	4B0973712	Flat contact housing with contact locking mechanism sensor for headlight range control switch - brake light	999	Next
25	1J0973714	Flat contact housing auxiliary heater	999	Next
26	1J0973722	Flat contact housing with contact locking mechanism auxiliary heater pump fluid container for water	999	Next
27	1J0973722A	Flat contact housing with contact locking mechanism pump for vehicles with headlight washer system	999	Next
28	6R0973735	Flat contact housing halogen twin headlights	999	Next
28	1J0973735	Flat contact housing with contact locking mechanism halogen twin headlights	999	Next
29	1J0973737	Flat contact housing with contact locking mechanism halogen twin headlights for gas discharge bulb	999	Next
30	71973851	Flat connector housing with contact locking mechanism windscreen	999	Next
31	3W0971838	Cable ties hole/sheet metal thickness: 4,5X200 6,5/0,33	999	Next
50	4B0971848	Cable holder	999	Next
50	3C2971303	Holder for flat cable windscreen (laminated) heated water box	999	Next
51	WHT000868	Weld studs with cap nuts M6	999	Next
52	1J0971260E	Anti-twist device earth line battery	999	Next
52	3C0971260C	Anti-twist device earth line	999	Next
53	3D0971838M	Cable tie with terminal socket for bridge strength: 4,6X200 13MM	999	Next
53	1Y0971838	Cable tie with terminal socket with side cable guide for bridge strength: toothed quadrant (clamp base, rotating) 4,6X200 13MM	999	Next
53	5M0971838A	Cable tie with terminal socket with side cable guide toothed quadrant for bridge strength: cable ties 4,6X200MM 13MM	999	Next

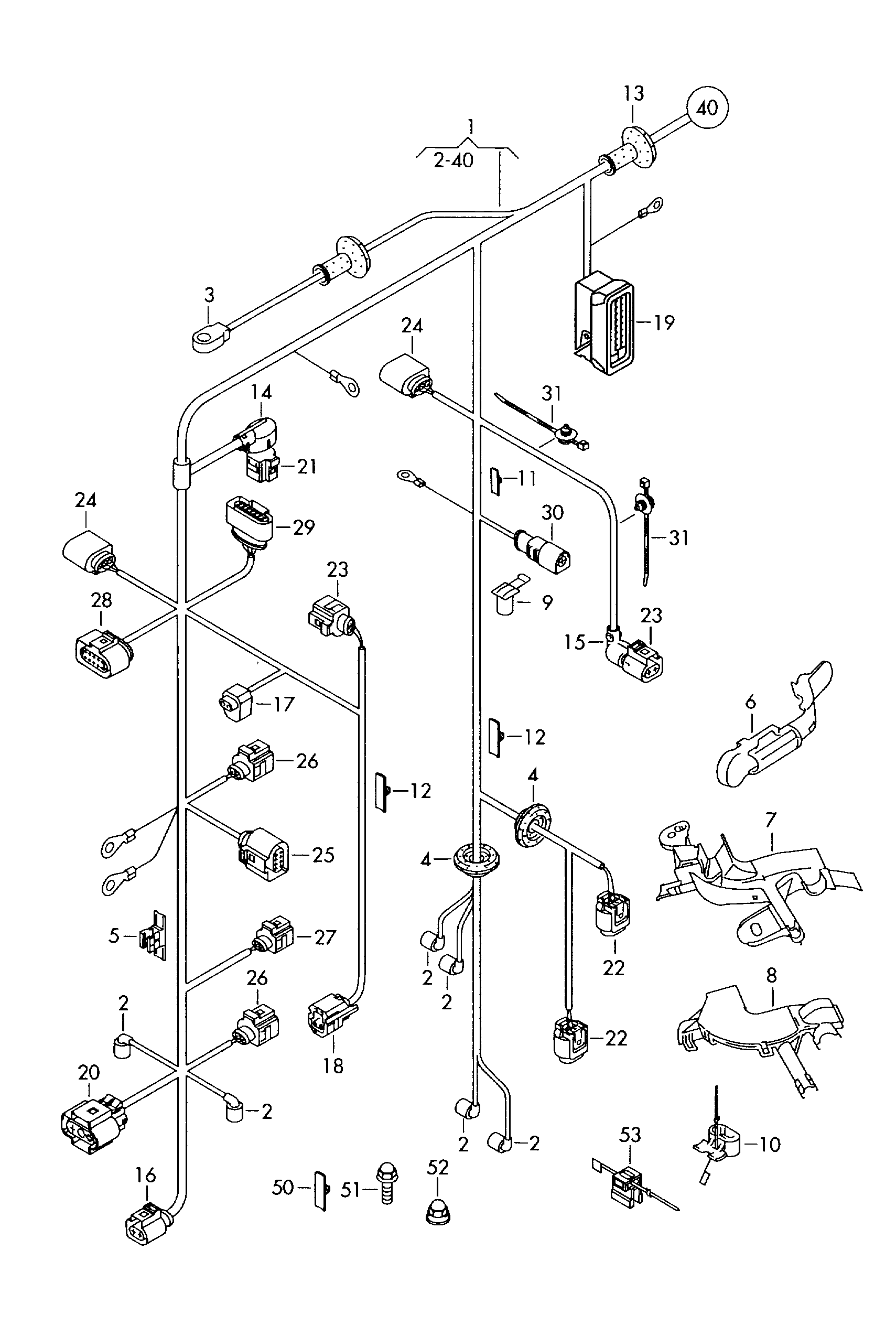

Scheme Central wiring set, individual parts right, engine bay Volkswagen Passat CC Coupe 2009-2012 EUR
