Central wiring set, individual parts left, dash panel Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
3	1K1937503	Relay plate	999	Next
4	443937527	Relay plate	999	Next
5	4B0937527	Relay plate	999	Next
6	4A0937530	Fuse holder for vehicles with automatic	999	Next
7	8E0937527	Adapter dual small relay plate	999	Next
8	1K0937722D	Flat contact housing with contact locking mechanism a-pillar b-pillar	999	Next
9	3C1941823	Fuse holder (drivers side)	999	Next
10	3C0971615AB	Cable guide	999	Next
11	1K0971615CG	Cable guide combi-instrument	999	Next
13	3C0971615AJ	Cable guide	999	Next
14	3C0971616C	Cable guide steering column	999	Next
15	3C0971616A	Cable guide steering column	999	Next
15	3C0971616E	Cable guide steering column, before 02.11.2009	999	Next
15	3C0971616F	Cable guide steering column, D 02.11.2009 and after	999	Next
17	893971636	Flat contact housing sliding roof motor	999	Next
19	4B0971833	Flat contact housing exterior mirror	999	Next
20	8E0971833	Flat contact housing emergency call button	999	Next
21	8L0971883	Flat contact housing regulator for instrument illumination and headlight range control	999	Next
22	1K0971915D	Grommet	999	Next
23	1J0971972	Flat connector housing for emergency warning light temperature sensor footwell light aerial for access and start authorisation (kessy)	999	Next
24	1K0971975	Flat contact housing with contact locking mechanism steering column	999	Next
25	4B0971978B	Flat connector housing switch for models with interior monitor	999	Next
25	4B0971978	Flat connector housing switch for models with interior monitor	999	Next
25	8K0973754	Flat contact housing switch for models with interior monitor	999	Next
25	8E0973754	Flat contact housing switch for models with interior monitor	999	Next
25	4B0971978B	Flat connector housing exterior mirror	999	Next
26	8E0971980	Flat contact housing with contact locking mechanism switch for lighting	999	Next
28	6Q0972706	Flat contact housing with contact locking mechanism harness for reading light	999	Next
29	1K0972117	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
30	1K0972117A	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
31	4E0972586	Flat contact housing side airbag wiring harness	999	Next
32	4B0972623	Flat contact housing with contact locking mechanism parking aid	999	Next
33	1K0972641	Flat contact housing onboard supply control unit	999	Next
34	1K0972643	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
35	3A0972695A	Flat contact housing with contact locking mechanism connection piece for diagnostic plug	999	Next
35	8D0972695	Flat contact housing with contact locking mechanism connection piece for diagnostic plug	999	Next
36	6X0972773	Flat contact housing three-point seat belt with electrially adjustable strain limiter and belt tensioner	999	Next
36	1J0972775	Flat contact housing with contact locking mechanism coupling piece: for power supply	999	Next
36	3C0972725	Flat contact housing with contact locking mechanism steering column lock	999	Next
37	3C0972735	Flat contact housing with contact locking mechanism roof wiring harness	999	Next
38	3D0972762	Flat connector housing belt latch with warning contact	999	Next
39	7L0972762	Flat contact housing with contact locking mechanism seat frame wiring harness	999	Next
40	1K0972776	Flat contact housing with contact locking mechanism button for electromechanical parking brake, before 07.11.2010 ------------------------------, D 07.11.2010 and after	999	Next
41	1K0972924	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
42	1K0972925	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
43	1K0972925A	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
43	1K0972925F	Flat contact housing with contact locking mechanism test socket	999	Next
44	1K0972926	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
45	1K0972929	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
46	1K0972929A	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
46	1J0972930A	Flat contact housing with contact locking mechanism camera	999	Next
47	1K0972961	Flat contact housing with contact locking mechanism onboard supply control unit	999	Next
48	1K0972974	Flat contact housing with contact locking mechanism steering column	999	Next
49	3C1972977	Flat contact housing with cap combi-instrument	999	Next
49	3C2972977	Flat contact housing with cap combi-instrument	999	Next
49	3C0972977A	Flat contact housing with cap combi-instrument cable output:	999	Next
50	1C0973119B	Flat contact housing rain sensor with adapter lead set aux-in socket	999	Next
51	8W0971832	Flat contact housing for vehicles with entry strip matching contact housing: 4E0 972 575	999	Next
51	8W0971832	Flat contact housing light windscreen	999	Next
51	3C0971164	Adapter cable loom windscreen heater for lane guard system PR-QK0	999	Next
51	5N0971164	Adapter cable loom windscreen heater for lane guard system PR-QK1	999	Next
52	1J0973332	Flat contact housing microphone	999	Next
52	1J0973332	Flat contact housing side airbag wiring harness belt latch with warning contact microphone for hands- free device	999	Next
80	1K1941379A	Flat contact housing mounting	999	Next
81	1T0971262D	Bracket wiring set for mobile phone	999	Next
83	1K0971930A	Cable holder	999	Next
84	1T0972822F	Guide piece	999	Next
84	3C8971615A	Guide piece a-pillar	999	Next
85	3AA937545	Bracket for connector housing coupling st. connector housing for seat:	999	Next
86	1K0971981B	End cap	999	Next
86	1K0971981B7G8	End cap pure beige	999	Next

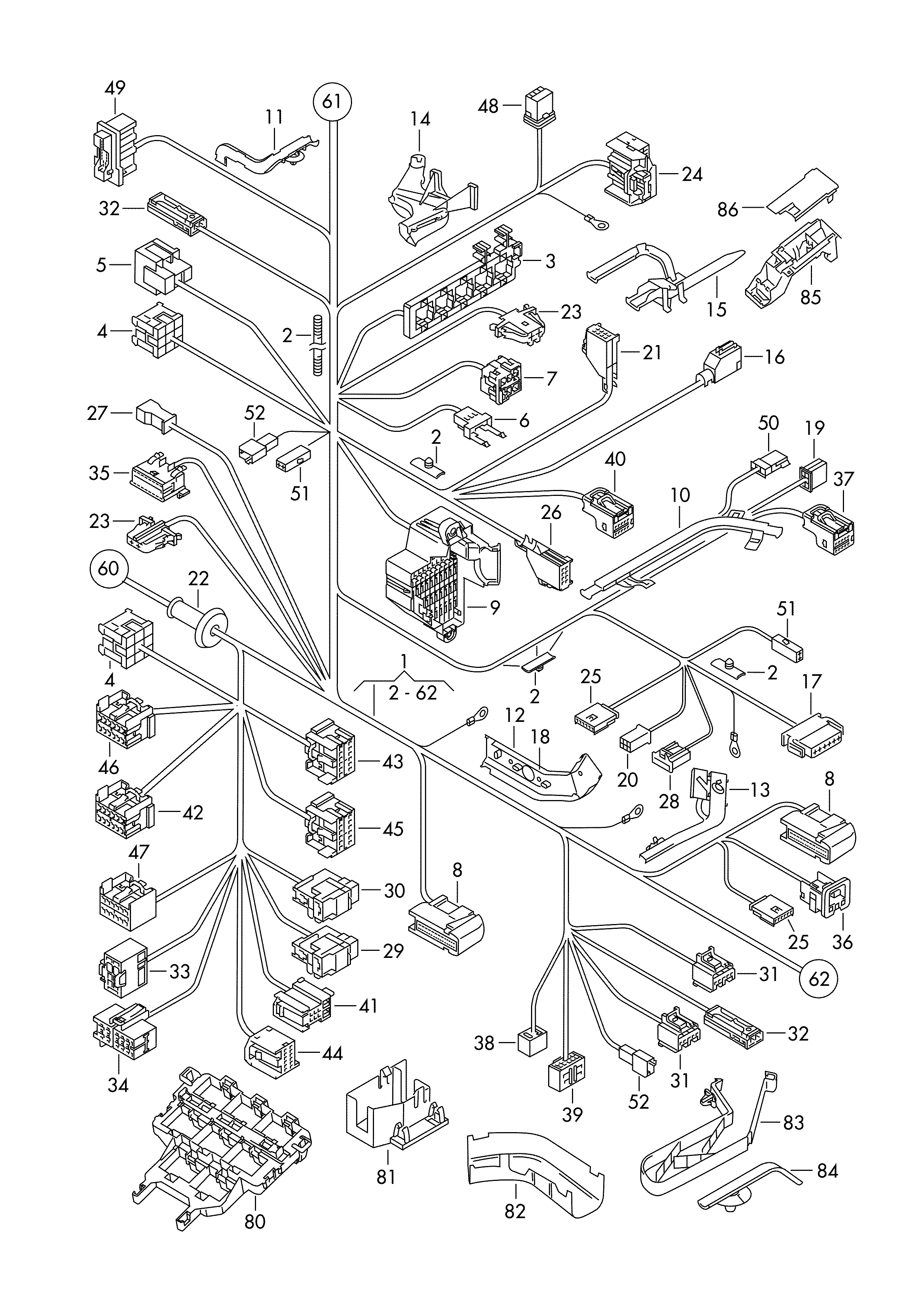

Scheme Central wiring set, individual parts left, dash panel Volkswagen Passat CC Coupe 2009-2012 EUR
