Central wiring set area: harness for engine compartment Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1971111AJ	Wiring set for servotronic	999	Next
1	1K2971111AJ	Wiring set for servotronic	999	Next
6	1K1971615A	Cable guide	999	Next
6A	3D0971838M	Cable tie with terminal socket for bridge strength: 4,6X200 1-3MM	999	Next
6B	4B0971848	Cable holder hole/sheet metal thickness: 6,5/0,6-3MM	999	Next
7	1J0971921K	Protective cap	999	Next
9	1K0971955	Flat contact housing with contact locking mechanism steering gear	999	Next
10	8K0973703	Flat contact housing with contact locking mechanism connection piece control unit for servotronic	999	Next
11	3D0973703	Flat contact housing with contact locking mechanism connection piece oil level sensor	999	Next
12	3B0973813	Flat connector housing with contact locking mechanism coupling element central wiring set	999	Next
1	5M1971051	Central wiring set	999	Next
5	1K0906234	Flat contact housing for vehicles with twin fan	999	Next
5	1T0998109C	Repair set part section wiring harness radiator fan	999	Next
6	1K0937700B	Flat contact housing fuse holder	999	Next
6	1J0906380B	Flat contact housing with gasket control unit for automatic gearbox	999	Next
7	1J0955998C	Grommet water jet	999	Next
(8A)	5M0971445K	Cable guide lid hinge	999	Next
9	1K0971821T	Cable guide	999	Next
(9A)	1K0971821R	Cable guide	999	Next
(9B)	1K0971839G	Cable guide - upper part	999	Next
10	3D0971838A	Cable tie with holder for weld pin: 5X200 5	999	Next
11	4B0971848	Cable holder hole/sheet metal thickness: 6,5/0,6-3MM	999	Next
12	1K0971848S	Cable holder	999	Next
12	1K0971848N	Cable holder	999	Next
15	1K0971915D	Grommet	999	Next
16	1K0971915E	Grommet	999	Next
17	30971921	Bracket protective cover	999	Next
18	6H0971921C	Bracket protective cover	999	Next
19	1C0971921A	Protective cap	999	Next
20	1J0971921E	Protective cap	999	Next
21	1J0971921K	Protective cap	999	Next
22	4D0971992	Flat connector housing with contact locking mechanism fanfare	999	Next
-	1K0971992A	Flat connector housing with contact locking mechanism for vehicles with telephone	999	Next
23	6Q0972623J	Flat contact housing with contact locking mechanism lateral acceleration sensor crashsensor	999	Next
24	1K0973026	Flat contact housing with cap control unit for abs	999	Next
25	7L0973047	Flat contact housing with contact locking mechanism control unit for electronic stabilisation program esp	999	Next
25	4B0973083A	Flat contact housing with gasket control unit control unit for special veh. for driving school vehicles	999	Next
26	1K0973202	Flat contact housing with contact locking mechanism expansion tank with coolant level switch	999	Next
27	7M0973202	Flat contact housing with contact locking mechanism level indicator	999	Next
28	8E0973202	Flat contact housing with contact locking mechanism coupling element spray nozzle, heated	999	Next
29	1J0973702	Flat contact housing with contact locking mechanism switch for anti-theft alarm system lid lock solenoid valve auxiliary heater temperature sensor for coolant regulator brake fluid	999	Next
-	1J0973702	Flat contact housing with contact locking mechanism temperature sensor for coolant regulator	999	Next
30	8T0973702	Flat contact housing with gasket speed sensor tyre pressure sensor	999	Next
31	3D0973703	Flat contact housing with contact locking mechanism pressure sensor horn for anti-theft alarm system	999	Next
32	1J0973704	Flat contact housing with contact locking mechanism sender - vacuum	999	Next
33	1J0973705	Flat contact housing with contact locking mechanism for hydraulic clutch operation	999	Next
34	4B0973712	Flat contact housing with contact locking mechanism sensor for headlight range control	999	Next
35	1J0973713	Flat contact housing coupling element wiring set for servotronic	999	Next
36	1J0973714	Flat contact housing auxiliary heater coupling element	999	Next
36	1J0927320	Round connector housing with contact locking mechanism control unit for automatic gearbox	999	Next
36	1K0973213	Flat contact housing with contact locking mechanism control unit for automatic gearbox	999	Next
37	1J0973722	Flat contact housing with contact locking mechanism pump fluid container for water auxiliary heater	999	Next
38	1J0973722A	Flat contact housing with contact locking mechanism pump for vehicles with headlight washer system	999	Next
39	1J0973724	Flat contact housing wiper motor	999	Next
40	6R0973735	Flat contact housing halogen twin headlights coupling element gearbox	999	Next
-40	1J0941165	Flat contact housing with contact locking mechanism halogen twin headlights with gas discharge bulb	999	Next
41	1J0973737	Flat contact housing with contact locking mechanism coupling element wiring set for engine	999	Next
42	1J0973772	Flat connector housing with contact locking mechanism potential distributor	999	Next
43	1J0973802	Flat connector housing with contact locking mechanism external temperature sensor brake pad wear display	999	Next
44	6X0973802A	Flat contact housing with contact locking mechanism coupling element alternator	999	Next
45	1K0973804	Flat contact housing with contact locking mechanism coupling element wire set alternator	999	Next
46	6X0973825	Flat contact housing coupling element halogen fog lamp	999	Next
47	8D0973834	Flat contact housing coupling element wiring set for bumper	999	Next
48	3D0971838N	Cable ties hole/sheet metal thickness: 4,5X200 6,5/0,3-3	999	Next
50	1K0971614	Cable guide	999	Next
50	1K2971615A	Cable guide gearbox mounting	999	Next
51	1K0971615DA	Cable guide	999	Next
52	1K0971615CT	Cable guide	999	Next
52A	1K0941057	Bracket for connector housing fanfare	999	Next
-	5M0971445H	Cable holder	999	Next
53	1K0971845AE	Cable holder	999	Next
53	1J0971830H	Bracket for connector housing radiator fan	999	Next
54	1K0971845R	Cable holder flat contact housing lid lock	999	Next
55	1K0971865	Cable guide - upper part water box	999	Next
56	1K0971865A	Cable guide - upper part water box	999	Next
56	1K0971865E	Retaining frame	999	Next
57	1K0971866	Cable guide - lower part water box	999	Next
58	1K0971866A	Cable guide - lower part water box	999	Next
58	1K0941369A	Cover water box	999	Next
58	1K0971866E	Retaining frame	999	Next
-	5M1971846B	Bracket for voltage stabiliser for vehicles with start-stop	999	Next
-	5M2971846A	Bracket for voltage stabiliser for vehicles with start-stop	999	Next

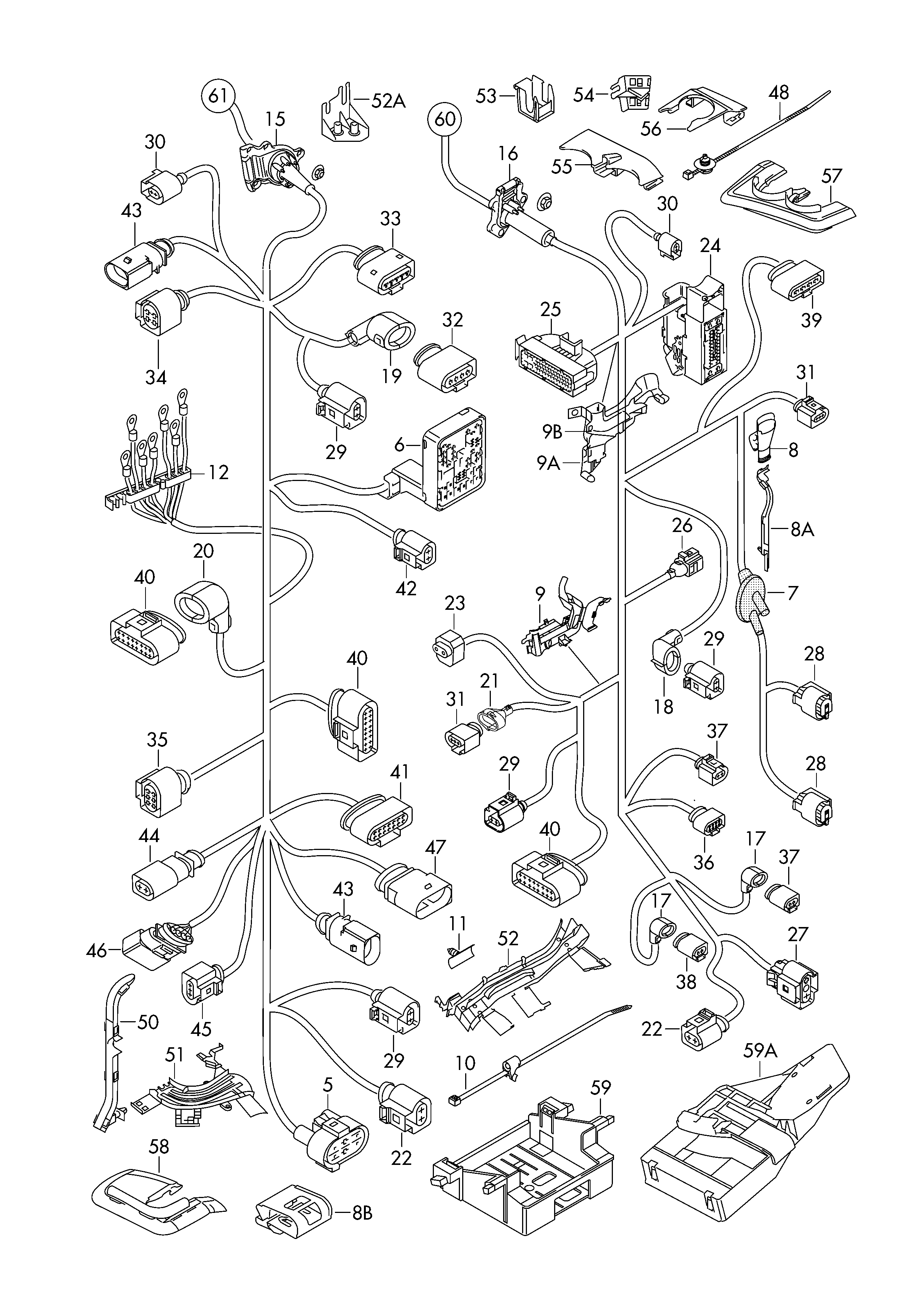

Scheme Central wiring set area: harness for engine compartment Volkswagen Golf Plus 2012-2014 EUR
