Central electrics for engine bay, potential distributor Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1		Control unit (bcm) for conv. system & ob power supply	999	Next
1A		Diagnosis interface for data bus (gateway)	999	Next
2	1T1937503A	Relay plate	999	Next
3	7N0937503A	Relay plate	999	Next
4	4H0951253C	Relay for fuel pump relay location/code no.: to be used for code no.: 1+2/646 449	999	Next
4	7N0951253	Relay for vehicles with start-stop relay location/code no.: to be used for code no.: 1/507 433	999	Next
4	4H0951253A	Relay auxiliary heater for additional heater relay location/code no.: to be used for code no.: 40A 3/645 53/373/643	999	Next
4	4H0951253	Relay for additional heater relay location/code no.: to be used for code no.: 4/644 370/100	999	Next
4	4H0951253C	Relay auxiliary heater relay location/code no.: to be used for code no.: 5/646 449	999	Next
6	4H0951253A	Relay relay location/code no.: to be used for code no.: 40A KL.15 1/645 643	999	Next
6	4H0951253A	Relay relay location/code no.: to be used for code no.: 40A KL.75 2/645 53/643	999	Next
6	4H0951253C	Relay for horn relay location/code no.: to be used for code no.: 3.1/646 449	999	Next
6	4H0951253C	Relay headlight washer system relay location/code no.: to be used for code no.: 3.2/646 449	999	Next
6	4H0951253A	Relay for rear window, heated relay location/code no.: to be used for code no.: 40A 4/645 53/643	999	Next
6	4H0951253A	Relay relay location/code no.: to be used for code no.: 40A KL.50 5/646 53/643	999	Next
7	1K1971858H	Retainer for control unit	999	Next
7	1K2971262Q	Retainer for control unit	999	Next
-	1K2971037	Clip connection piece 1K2 971 262 Q	999	Next
8	N90698801	Speed nut 4,2X16X12	999	Next
9	N90917201	Hexagon socket flat head bolt M6X25	999	Next
15	937615	Fuse holder jumper	999	Next
15	000937615A	Fuse holder jumper	999	Next
-	6R0937565	Cover for fuse holder F 1K-A-500 001	999	Next
-	5N0971845E	Holder for diagnosic plug and footwell light	999	Next
16	N01713111	Flat fuse 19/2x5	999	Next
16	N01713112	Flat fuse 19/2x5	999	Next
16	N01713123	Flat fuse 19/2x5	999	Next
16	N01713113	Flat fuse 19/2x5	999	Next
16	N01713114	Flat fuse 19/2x5	999	Next
16	N01713125	Flat fuse 19/2x5	999	Next
16	N01713120	Flat fuse 19/2x5	999	Next
17	N10261501	Flat fuse 10/2x2,8	999	Next
17	N10261502	Flat fuse 10/2x2,8	999	Next
17	N10261503	Flat fuse 10/2x2,8	999	Next
17	8L0998131	1 set of flat fuses	999	Next
18	N10472201	Oval hexagon socket head bolt M5X28	999	Next

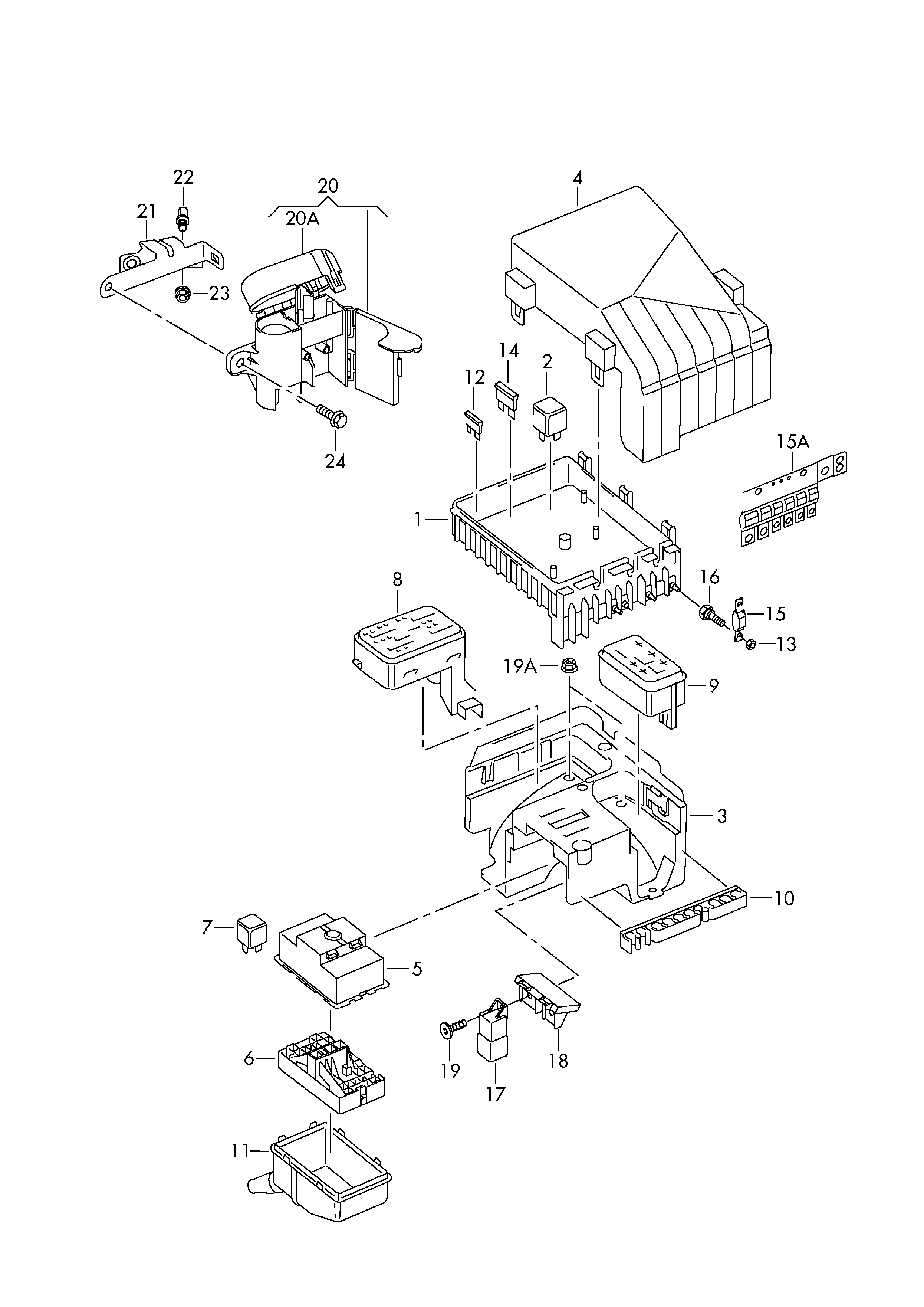

Scheme Central electrics for engine bay, potential distributor Volkswagen Golf Plus 2012-2014 EUR
