Cardan shaft 4motion+, BWS, BLV, CBAB, CBBB, CFFB, CFGB, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0521101N	Cardan shaft, before 14.09.2009	999	Next
1	3C0521101AG	Cardan shaft	999	Next
1	3C0521101Q	Cardan shaft, before 14.09.2009	999	Next
1	3C0521101AH	Cardan shaft	999	Next
1	3C0521101AF	Cardan shaft, before 14.09.2009	999	Next
1	3C0521101AJ	Cardan shaft, D 15.09.2009 and after	999	Next
2	WHT005179	12-point head bolt M10X45	999	Next
3	N90846102	12-point head bolt M10X30	999	Next
4		Rear axle differential	999	Next
5		Front axle differential	999	Next
6	N91066901	Bolt,hex.hd.with shoul.(combi) M8X38	999	Next
7	1K0521127	Flexible disc	999	Next
7	1K0521307A	Jointed coupling with balance weight	999	Next
8	N10329102	Hex collared bolt M10X60X45	999	Next
9	1J0521127A	Flexible disc	999	Next
10	N90846102	12-point head bolt M10X30	999	Next
15	3C0521441D	Heat shield	999	Next
17	N90335005	Clamping washer 5X30	999	Next

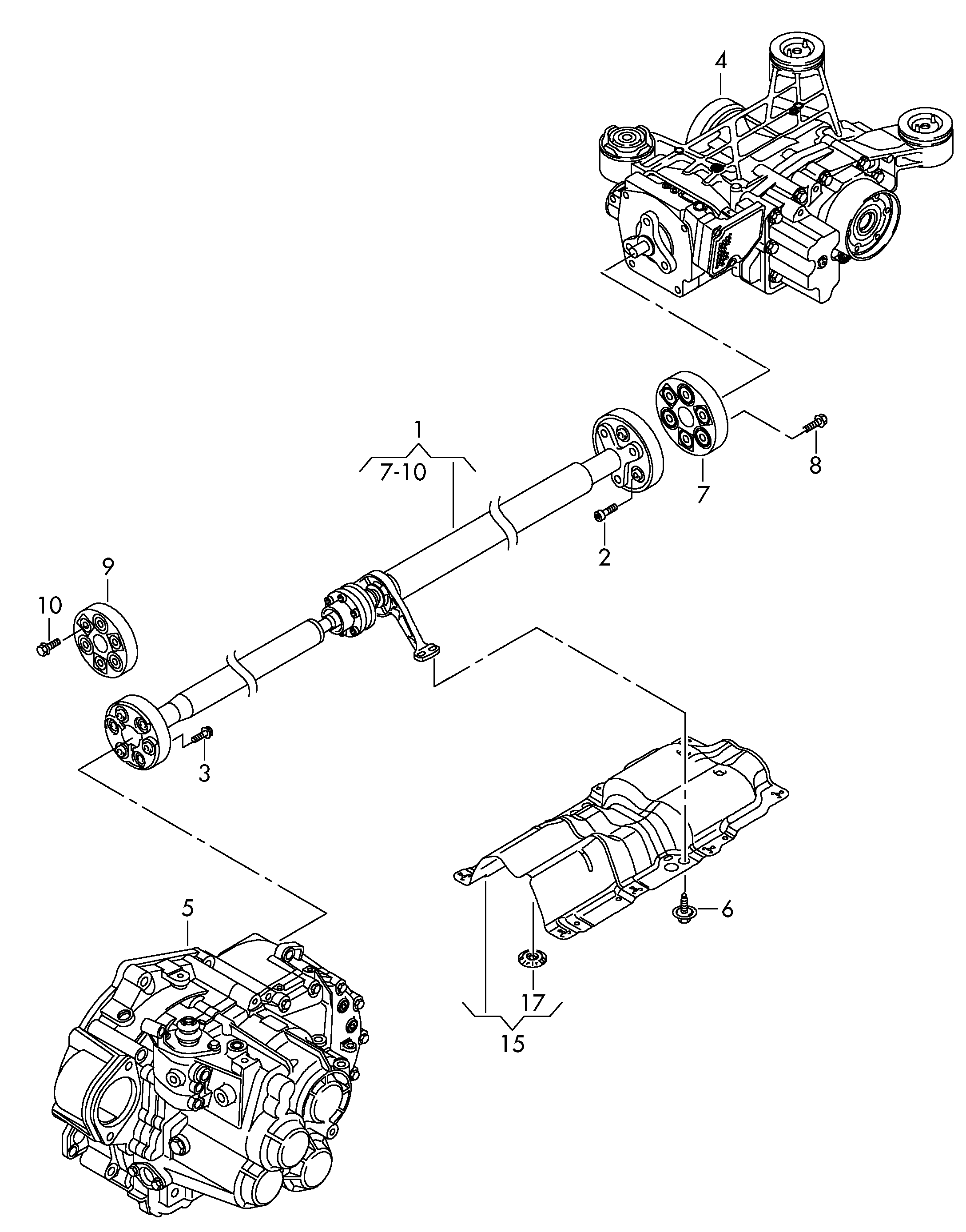

Scheme Cardan shaft 4motion+, BWS, BLV, CBAB, CBBB, CFFB, CFGB, CNNA Volkswagen Passat CC Coupe 2009-2012 EUR
