Camshaft, valves, camshaft adjuster unit 1.4ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03C109101DG	Camshaft, before 19.07.2011	999	Next
1	03C109101DC	Camshaft, D 20.07.2011 and after	999	Next
2	03C109101DH	Camshaft, before 19.07.2011	999	Next
2	03C109101DF	Camshaft, D 20.07.2011 and after	999	Next
3	03C109088E	Camshaft adjuster unit Z=36	999	Next
4	03C103825A	Sleeve	999	Next
5	N91197001	Socket head collared bolt with inner multipoint head M10X1,25X89X30	999	Next
6	03C109571F	Chain sprocket Z=36	999	Next
7	N90256202	Hexagon bolt M10X1,25X30	999	Next
8	036109411J	Roller rocker arm	999	Next
9	30109423	Equalizing element, hydraulic	999	Next
10	03C109601L	Inlet valve 100,6	999	Next
11	03C109611Q	Exhaust valve 100,6	999	Next
12	036109623R	Valve spring	999	Next
13	036109641B	Spring disc	999	Next
14	036109651A	Cotter, split	999	Next
15	036109675A	Valve stem seal	999	Next
15	03C109675A	Valve stem seal	999	Next
16		Cylinder head cover	999	Next

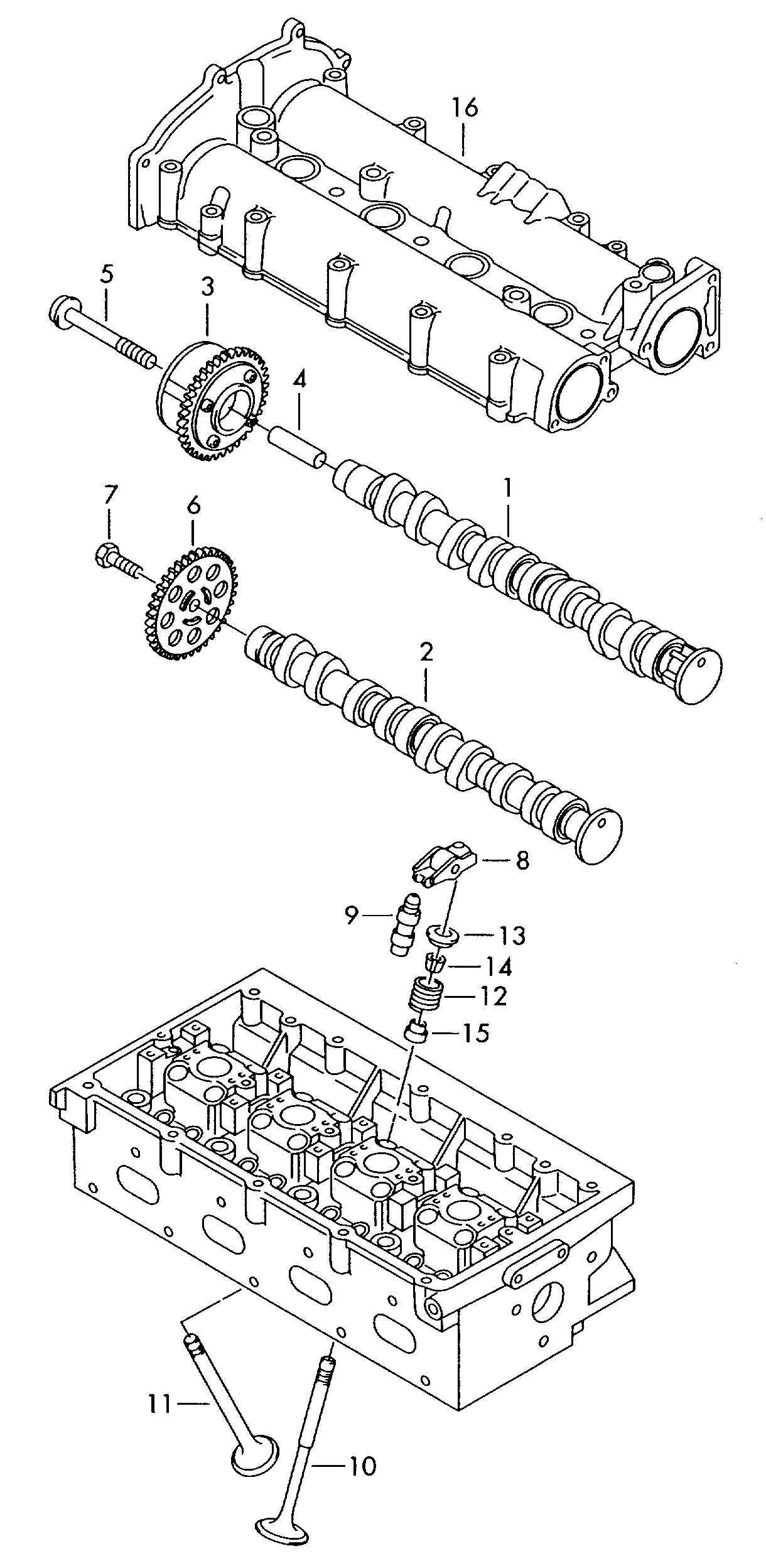

Scheme Camshaft, valves, camshaft adjuster unit 1.4ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
