Camshaft, valves 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 06H109021K | Camshaft | Next |
| 1 | 06H109022BB | Camshaft | Next |
| 1 | 06H109022BC | Camshaft | Next |
| 1 | 06E109417P | Roller rocker arm | Next |
| 1 | 022109423D | Equalizing element, hydraulic | Next |
| 1 | 06D109601M | Inlet valve 104 | Next |
| 1 | 06D109611H | Exhaust valve 101,9 | Next |
| 1 | 06E109623H | Valve spring 44,4 | Next |
| 1 | 06E109623A | Valve spring 45,6 | Next |
| 1 | 06E109641A | Spring disc | Next |
| 1 | 036109651A | Cotter, split | Next |
| 1 | 036109675A | Valve stem seal also use: 100 109 001 B | Next |
| 1 | Cylinder head cover | Next | |
| 1 | 06H109257A | Control valve | Next |
| 1 | 06H109257C | Control valve | Next |
| 1 | 100109001B | Mounting sleeve red 6X20 | Next |

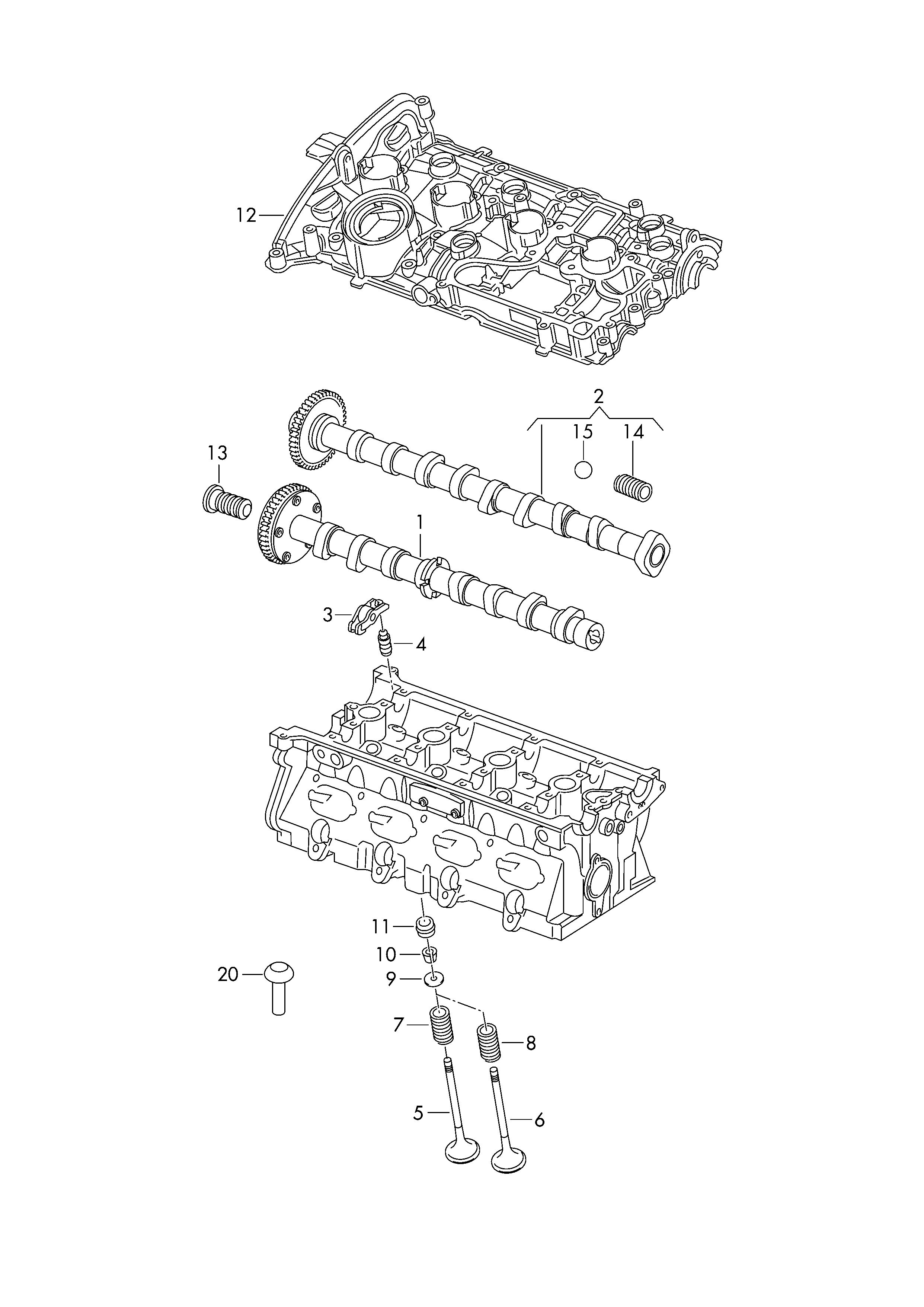

Scheme Camshaft, valves 2.0 ltr. petr. engine Volkswagen Tiguan 2010-2017 EUR
