Camshaft, valves 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 03C109101EC | Camshaft | Next |
| 2 | 03C109101ED | Camshaft | Next |
| 3 | 036109111Q | Toothed belt pulley Z=48/33 | Next |
| 4 | 036109111G | Toothed belt pulley Z=33 | Next |
| 5 | N90256202 | Hexagon bolt M10X1,25X30 | Next |
| 6 | 036109601AL | Inlet valve 100,6 | Next |
| 7 | 036109611K | Exhaust valve 100,9 | Next |
| 8 | 036109675A | Valve stem seal | Next |
| 9 | 036109623N | Valve spring | Next |
| 10 | 036109651A | Cotter, split | Next |
| 11 | 036109641B | Spring disc | Next |
| 12 | 30109423 | Equalizing element, hydraulic | Next |
| 13 | 036109411D | Roller rocker arm | Next |
| 14 | Cylinder head cover | Next |

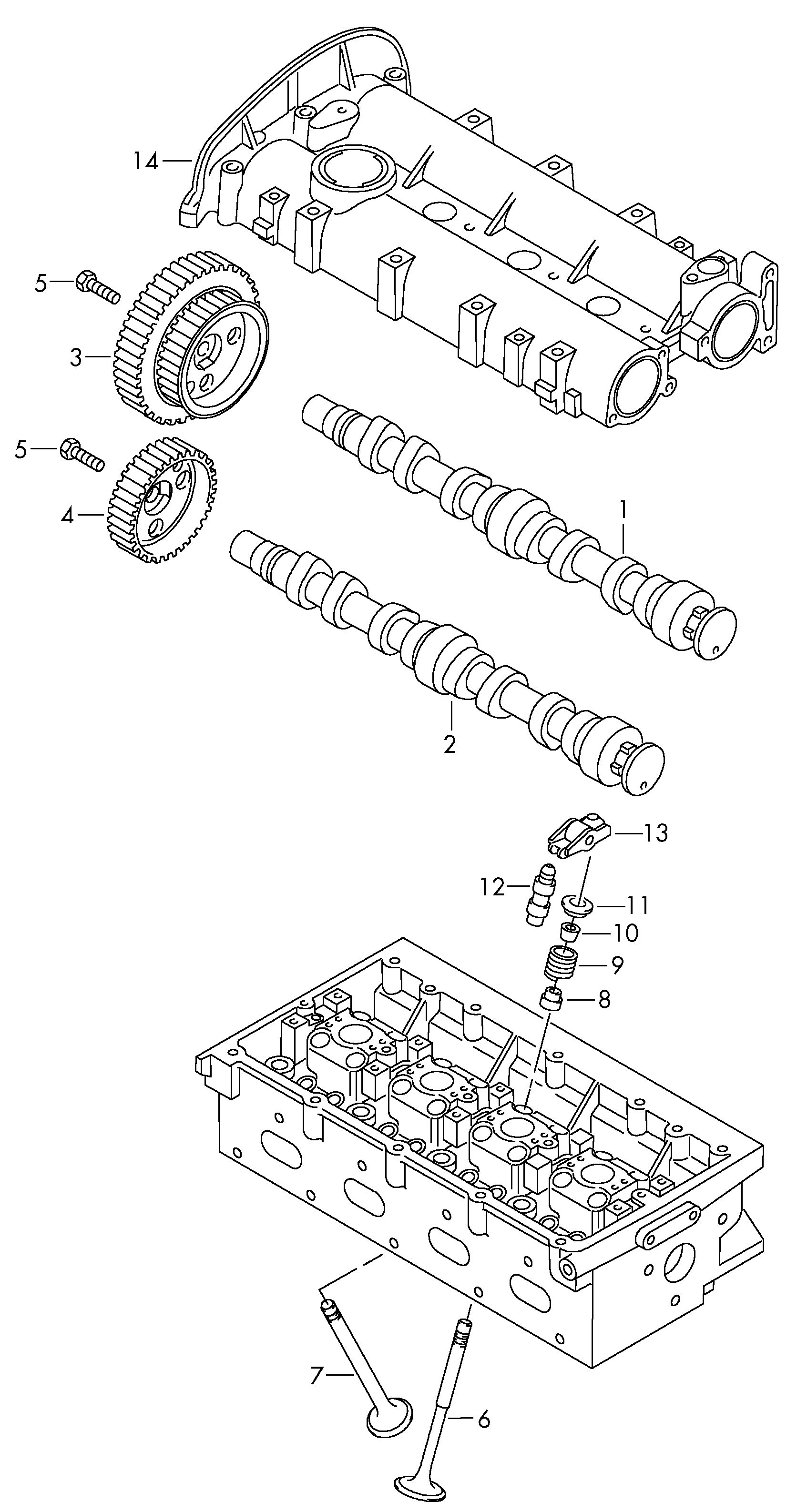

Scheme Camshaft, valves 1.4ltr. petrol eng.+, CGGA Volkswagen Golf Plus 2012-2014 EUR
