Camshaft, valves 1.2 ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F109101D	Camshaft	999	Next
2	03F109571C	Chain sprocket Z=50	999	Next
2	03F109571F	Chain sprocket Z=50	999	Next
3	N90256202	Hexagon bolt M10X1,25X30	999	Next
4	036109675A	Valve stem seal	999	Next
-	100109001B	Mounting sleeve red 6X20	999	Next
5	03F109623	Valve spring	999	Next
6	036109641B	Spring disc	999	Next
7	036109651A	Cotter, split	999	Next
8	30109423	Equalizing element, hydraulic	999	Next
9	03F109411	Roller rocker arm	999	Next
10	03F109601A	Inlet valve 98,67	999	Next
11	03F109611C	Exhaust valve 98,36	999	Next
12		Cylinder head cover	999	Next

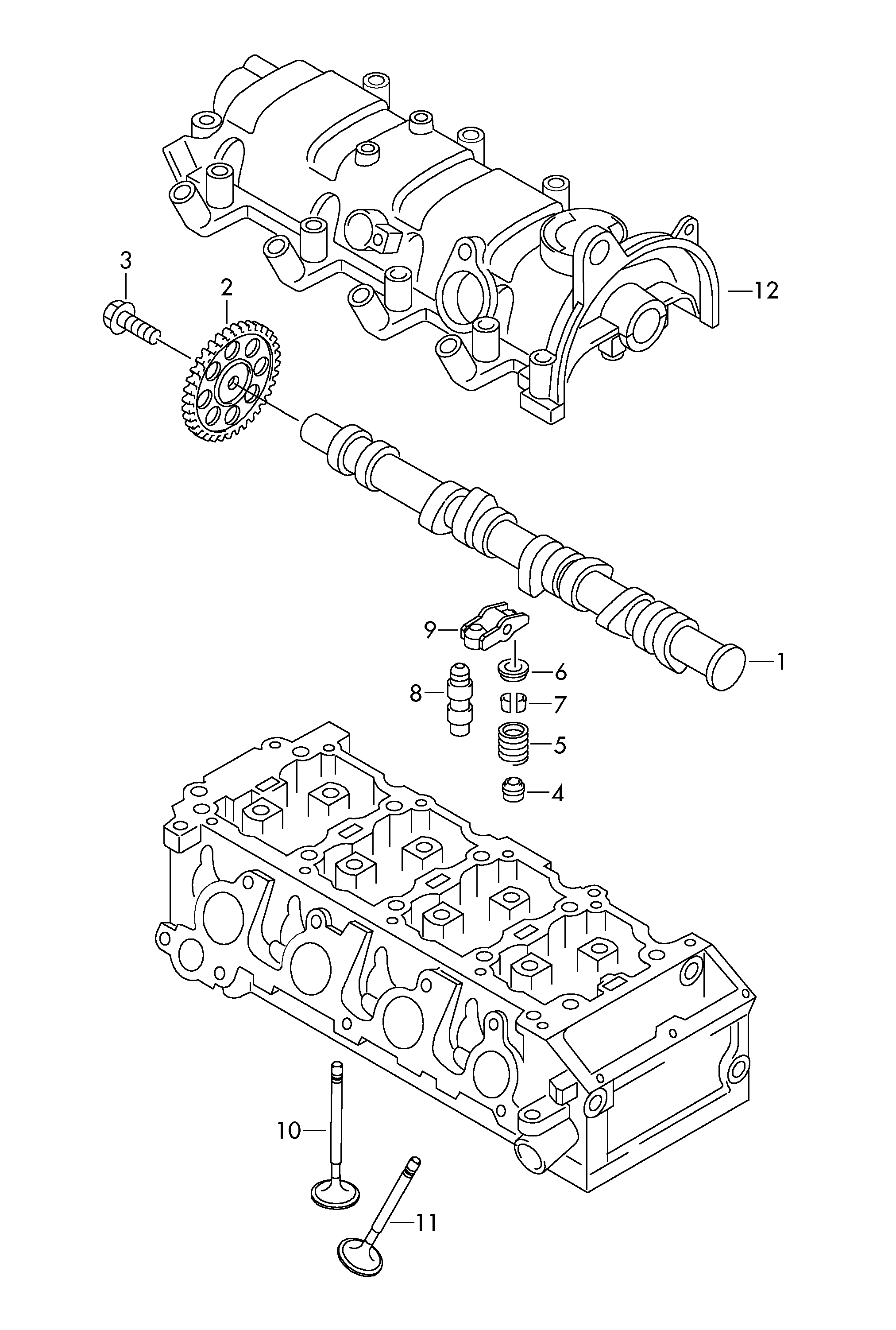

Scheme Camshaft, valves 1.2 ltr. petr. engine Volkswagen Golf Plus 2012-2014 EUR
